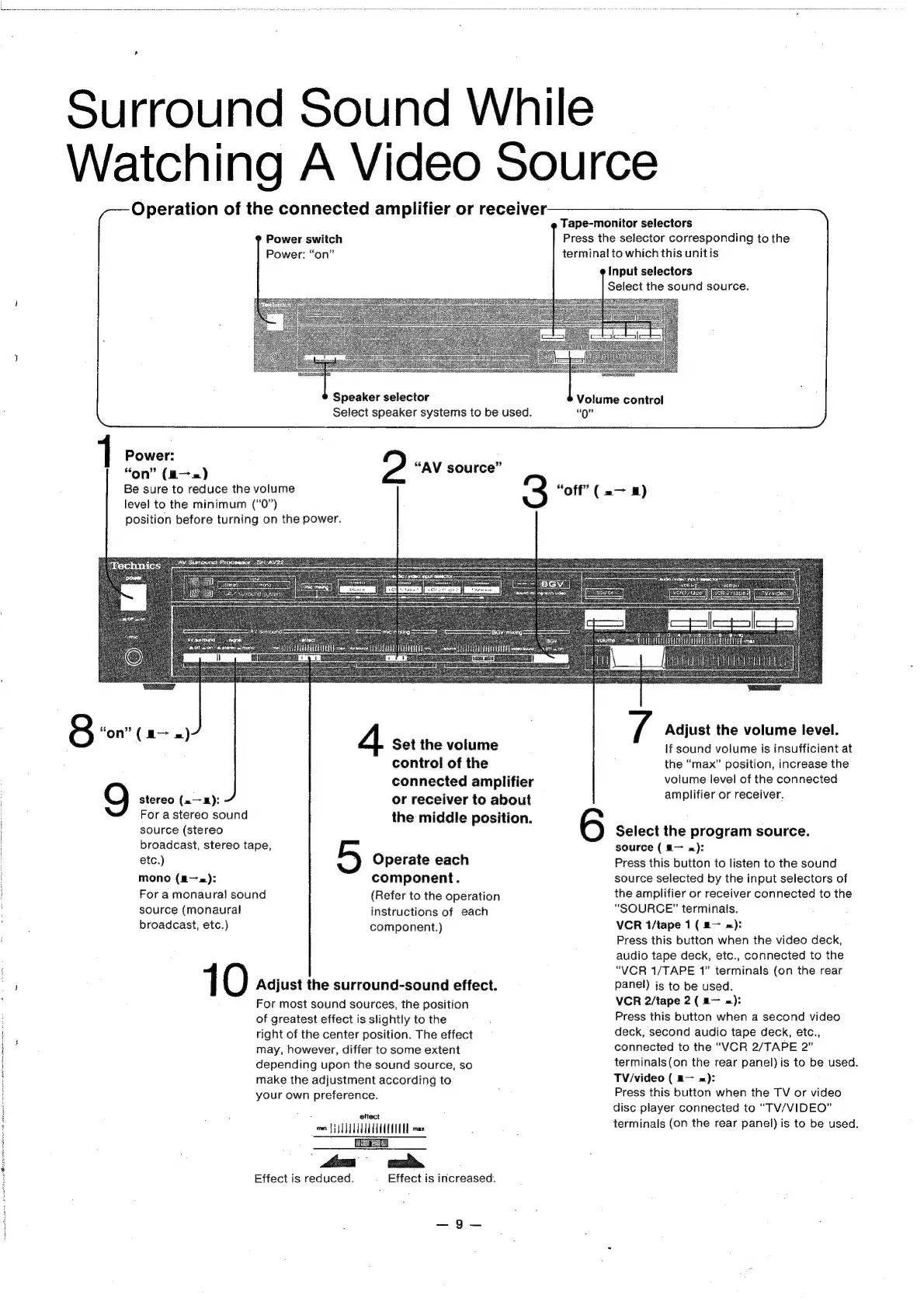

Technics SH-AV22

Surround Sound While
Watching A Video Source
Power switch
Power: “on”
Speaker selector
Select speaker systems to be used.
Py “AV source”
1 Power:
“on” (a— =)
Be sure to reduce the volume
level to the minimum (“0”)
position before turning on the power.
control of the
connected amplifier
or receiver to about
the middle position.
5 Operate each
component.
(Refer to the operation
instructions of each
component.)
stereo (a—):
For a stereo sound
source (stereo
broadcast, stereo tape,
etc.)
mono (g—-2):
For a monaural sound
source (monaural
broadcast, etc.)
9
1 1 O Adjust the surround-sound effect.
For most sound sources, the position
of greatest effect is slightly to the
} right of the center position. The effect
i : may, however, differ to some extent
j depending upon the sound source, so
make the adjustment according to
your own preference.
effect
+ $A ULAUHATEUUHAALID mae
Effect is reduced. Effect is increased.
—9—
Operation of the connected amplifier or receiver
Tape-monitor selectors
Press the selector corresponding to the
terminal to which this unitis
Input selectors
Select the sound source.
Se ee ee ee re et ee
Volume control
“Q”
“off” (=— m)
6
T Adjust the volume level.
lf sound volume is insufficient at
the “max” position, increase the
volume level of the connected
amplifier or receiver.
Select the program source.
source ( §— =):
Press this button to listen to the sound
source selected by the input selectors of
the amplifier or receiver connected to the
“SOURCE” terminals.
VCR 1/tape 1 ( s— =):
Press this button when the video deck,
audio tape deck, etc., connected to the
“VCR 1/TAPE 1” terminals (on the rear
panel) is to be used.
VCR 2/tape 2 ( m— =):
Press this button when a second video
deck, second audio tape deck, etc.,
connected to the “VCR 2/TAPE 2”
terminals(on the rear panel) is to be used.
TV/video ( a— =):
Press this button when the TV or video
disc player connected to “TV/VIDEO”
terminals (on the rear panel) is to be used.
