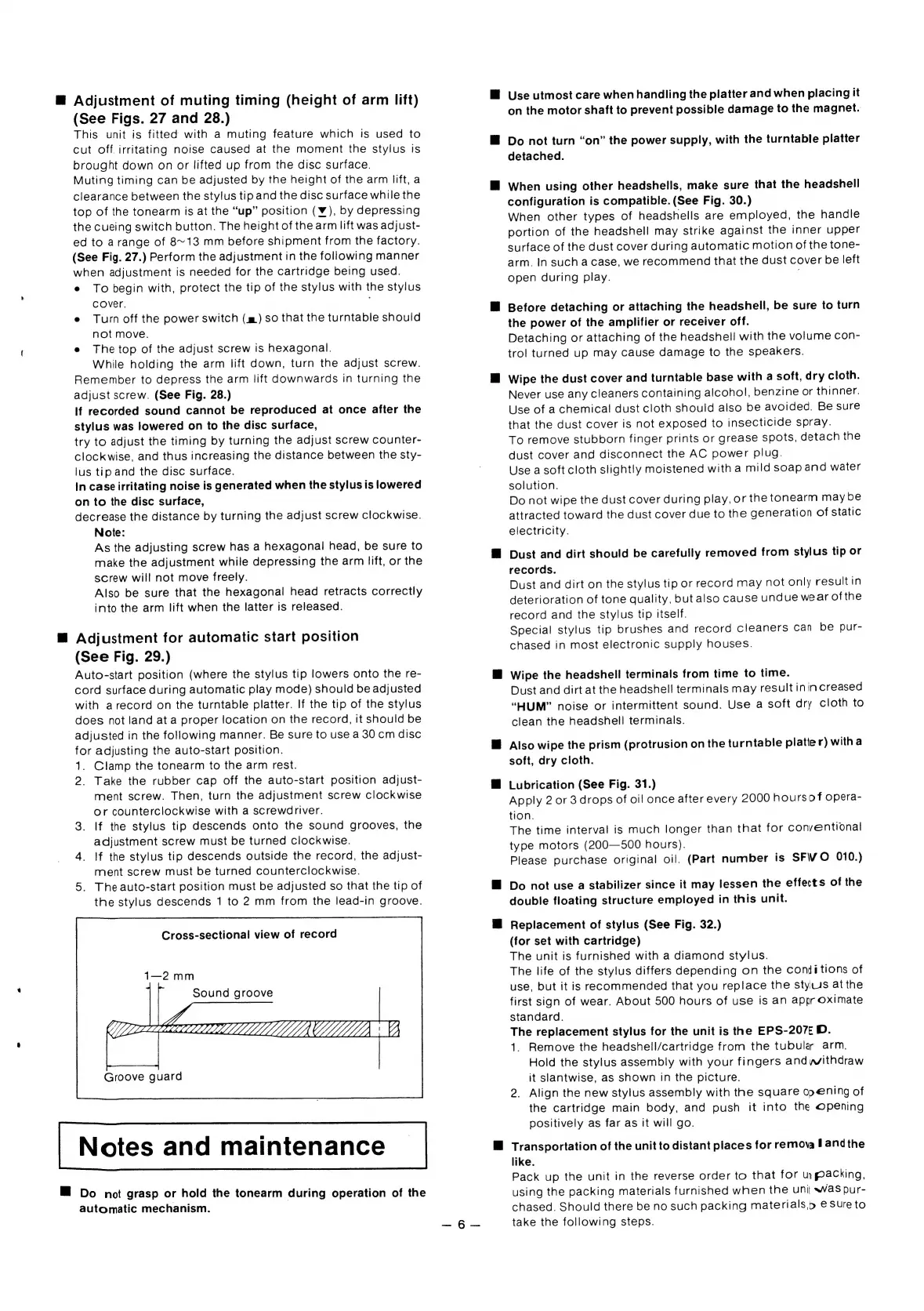

Technics SL-1600MK2 User Manual

M@ Adjustment of muting timing (height of arm lift)
(See Figs. 27 and 28.)
This unit is fitted with a muting feature which is used to
cut off irritating noise caused at the moment the stylus is
brought down on or lifted up from the disc surface.
Muting timing can be adjusted by the height of the arm lift, a
clearance between the stylus tip and the disc surface while the
top of the tonearm is at the “up” position (¥), by depressing
the cueing switch button. The height of the arm lift was adjust-
ed to arange of 8~13 mm before shipment from the factory.
(See Fig. 27.) Perform the adjustment in the following manner
when adjustment is needed for the cartridge being used.
e To begin with, protect the tip of the stylus with the stylus
cover.
e Turn off the power switch () so that the turntable should
not move.
e The top of the adjust screw is hexagonal.
While holding the arm lift down, turn the adjust screw.
Remember to depress the arm lift downwards in turning the
adjust screw. (See Fig. 28.)
If recorded sound cannot be reproduced at once after the
stylus was lowered on to the disc surface,
try to adjust the timing by turning the adjust screw counter-
clockwise, and thus increasing the distance between the sty-
lus tip and the disc surface.
In case irritating noise is generated when the stylus is lowered
on to the disc surface,
decrease the distance by turning the adjust screw clockwise.
Note:
As the adjusting screw has a hexagonal head, be sure to
make the adjustment while depressing the arm lift, or the
screw will not move freely.
Also be sure that the hexagonal head retracts correctly
into the arm lift when the latter is released.
Adjustment for automatic start position
(See Fig. 29.)
Auto-start position (where the stylus tip lowers onto the re-
cord surface during automatic play mode) should be adjusted
with arecord on the turntable platter. If the tip of the stylus
does not land at a proper location on the record, it should be
adjusted in the following manner. Be sure to use a 30 cm disc
for adjusting the auto-start position.
1. Clamp the tonearm to the arm rest.
2. Take the rubber cap off the auto-start position adjust-
ment screw. Then, turn the adjustment screw clockwise
or counterclockwise with a screwdriver.
3. If the stylus tip descends onto the sound grooves, the
adjustment screw must be turned clockwise.
4. If the stylus tip descends outside the record, the adjust-
ment screw must be turned counterclockwise.
5. The auto-start position must be adjusted so that the tip of
the stylus descends 1 to 2 mm from the lead-in groove.
Cross-sectional view of record
Sound groove
Groove guard
Notes and maintenance
HM Do not grasp or hold the tonearm during operation of the
automatic mechanism.
Use
utmost
care
when
handling
the
platter
and
when
placing
it
on
the
motor
shaft
to
prevent
possible
damage
to
the
magnet.
Do
not
turn
“on”
the
power
supply,
with
the
turntable
platter
detached.
When
using
other
headshells,
make
sure
that
the
headshell
configuration
is compatible.
(See
Fig.
30.)
When
other
types
of
headshells
are
employed,
the
handle
portion
of
the
headshell
may
strike
against
the
inner
upper
surface
of
the
dust
cover
during
automatic
motion
of
the
tone-
arm.
In
such
acase,
we
recommend
that
the
dust
cover
be
left
open
during
play.
Before
detaching
or
attaching
the
headshell,
be
sure
to
turn
the
power
of
the
amplifier
or
receiver
off.
Detaching
or
attaching
of
the
headshell
with
the
volume
con-
trol
turned
up
may
cause
damage
to
the
speakers.
Wipe
the
dust
cover
and
turntable
base
with
a
soft,
dry
cloth.
Never
use
any
cleaners
containing
alcohol,
benzine
or
thinner.
Use
of
a
chemical
dust
cloth
should
also
be
avoided.
Be
sure
that
the
dust
cover
is
not
exposed
to
insecticide
spray.
To
remove
stubborn
finger
prints
or
grease
spots,
detach
the
dust
cover
and
disconnect
the
AC
power
plug.
Use
a
soft
cloth
slightly
moistened
with
a
mild
soap
and
water
solution.
Do
not
wipe
the
dust
cover
during
play,
or
the
tonearm
may
be
attracted
toward
the
dust
cover
due
to
the
generation
of
static
electricity.
Dust
and
dirt
should
be
carefully
removed
from
stylus
tip
or
records.
Dust
and
dirt
on
the
stylus
tip
or
record
may
not
only
result
in
deterioration
of
tone
quality,
but
also
cause
undue
wear
ofthe
record
and
the
stylus
tip
itself.
Special
stylus
tip
brushes
and
record
cleaners
can
be
pur-
chased
in
most
electronic
supply
houses.
Wipe the headshell terminals from time to time.
Dust
and
dirt
at
the
headshell
terminals
may
result
inincreased
“HUM”
noise
or
intermittent
sound.
Use
a
soft
dry
cloth
to
clean
the
headshell
terminals.
Also
wipe
the
prism
(protrusion
on
the
turntable
platier)
witha
soft,
dry
cloth.
Lubrication (See Fig. 31.)
Apply
2
or
3
drops
of
oil
once
after
every
2000
hours
of
opera-
tion.
The
time
interval
is
much
longer
than
that
for
conventional
type
motors
(200—500
hours).
Please
purchase
original
oil.
(Part
number
is
SFWVO
010.)
Do
not
use
a
stabilizer
since
it
may
lessen
the
effects
of
the
double
floating
structure
employed
in
this
unit.
Replacement of stylus (See Fig. 32.)
(for set with cartridge)
The unit is furnished with a diamond stylus.
The life of the stylus differs depending on the conditions of
use, but it is recommended that you replace the styuss atthe
first sign of wear. About 500 hours of use is an appr Oximate
standard.
The replacement stylus for the unit is the EPS-207E D.
1. Remove the headshell/cartridge from the tubular arm.
Hold the stylus assembly with your fingers andwithdraw
it slantwise, as shown in the picture.
2.
Align
the
new
stylus
assembly
with
the
square
opening
of
the
cartridge
main
body,
and
push
it
into
the
Opening
positively
as
far
as
it
will
go.
Transportation of the unit to distant places for remoOva fandthe
like.
Pack
up
the
unit
in
the
reverse
order
to
that
for
un
packing,
using
the
packing
materials
furnished
when
the
uni
$vas
pur-
chased.
Should
there
be
no
such
packing
materials,p
€
Sure
to
take
the
following
steps.
