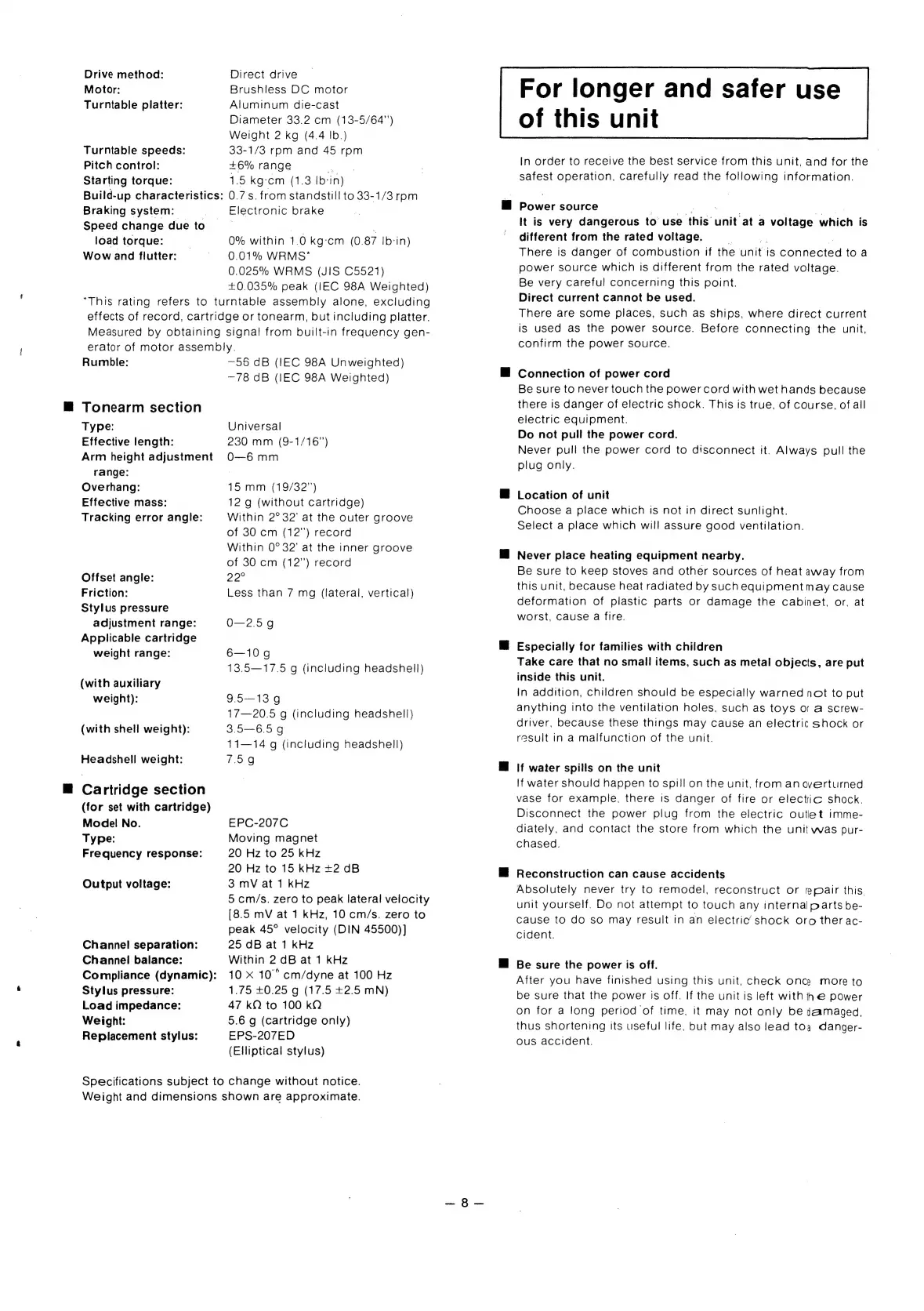

Technics SL-1600MK2 User Manual

Direct drive
Brushless DC motor
Aluminum die-cast
Diameter 33.2 cm (13-5/64"’)
Weight 2 kg (4.4 Ib.)
33-1/3 rom and 45 rpm
Drive method:
Motor:
Turntable platter:
Turntable speeds:
Pitch control: +6% range Por
Starting torque: 1.5 kg-cm (1.3 Ib-in)
Build-up characteristics: 0.7s. from standstill to 33-1/3 rom
Braking system: Electronic brake
Speed change due to
load torque:
Wow and flutter:
0% within 1.0 kg-cm (0.87 Ib-in)
0.01% WRMS*
0.025% WRMS (JIS C5521)
+0.035% peak (IEC 98A Weighted)
“This rating refers to turntable assembly alone, excluding
effects of record, cartridge or tonearm, but including platter.
Measured by obtaining signal from built-in frequency gen-
erator of motor assembly.
Rumble: —56 dB (IEC 98A Unweighted)
—78 dB (IEC 98A Weighted)
Tonearm section
Type: Universal
Effective length: 230 mm (9-1/16")
Arm height adjustment O—6 mm
range: :
Overhang: 15 mm (19/32")
12 g (without cartridge)
Within 2°32’ at the outer groove
of 30 cm (12") record
Within 0° 32’ at the inner groove
of 30 cm (12”) record
Effective mass:
Tracking error angle:
Offset angle: 22°
Friction: Less than 7 mg (lateral, vertical)
Stylus pressure
adjustment range: 0—2.5g
Applicable cartridge
weight range: 6—10g
13.5—17.5 g (including headshell)
(with auxiliary
weight): 95—13 9g
17—20.5 g (including headshell)
(with shell weight): 06,09
11—14 g (including headshell)
Headshell weight: reome |
Cartridge section
(for set with cartridge)
Model No. EPC-207C
Type: Moving magnet
20 Hz to 25 kHz
20 Hz to 15 kHz +2 dB
3 mV at 1 kHz
5 cm/s. zero to peak lateral velocity
[8.5 mV at 1 kHz, 10 cm/s. zero to
peak 45° velocity (DIN 45500)]
25 dB at 1 kHz
Within 2 dB at 1 kHz
10 x 10° cm/dyne at 100 Hz
1.75 +0.25 g (17.5 2.5 mN)
47 kQ to 100 kQ
5.6 g (cartridge only)
EPS-207ED
(Elliptical stylus)
Frequency response:
Output voltage:
Channel separation:
Channel balance:
Compliance (dynamic):
Stylus pressure:
Load impedance:
Weight:
Replacement stylus:
Specifications subject to change without notice.
Weight and dimensions shown are approximate.
For longer and safer use
of this unit
In order to receive the best service from this unit, and for the
safest operation, carefully read the following information.
Power source
It is very dangerous to use this unit at a voltage which is
different from the rated voltage. ; - .
There is danger of combustion if the unit is connected to a
power source which is different from the rated voltage.
Be very careful concerning this point.
Direct current cannot be used.
There are some places, such as ships, where direct current
is used as the power source. Before connecting the unit,
confirm the power source.
Connection of power cord
Be sure to never touch the power cord with wet hands because
there is danger of electric shock. This is true, of course, of all
electric equipment.
Do not pull the power cord.
Never pull the power cord to disconnect it. Always pull the
plug only.
Location of unit
Choose a place which is not in direct sunlight.
Select a place which will assure good ventilation.
Never place heating equipment nearby.
Be sure to keep stoves and other sources of heat away from
this unit, because heat radiated by such equipment may cause
deformation of plastic parts or damage the cabinet. or, at
worst, cause a fire.
Especially for families with children
Take care that no small items, such as metal objects, are put
inside this unit.
In addition, children should be especially warned not to put
anything into the ventilation holes, such as toys or a@ screw-
driver, because these things may cause an electric shock or
result in a malfunction of the unit.
If water spills on the unit
If water should happen to spill on the unit. from an overturned
vase for example, there is danger of fire or electric shock.
Disconnect the power plug from the electric outlet imme-
diately, and contact the store from which the unit was pur-
chased.
Reconstruction can cause accidents
Absolutely never try to remodel, reconstruct or repair this.
unit yourself. Do not attempt to touch any internalparts be-
cause to do so may result in an electric shock oro ther ac-
cident.
Be sure the power is off.
After you have finished using this unit, check once more to
be sure that the power is off. If the unit is left with he power
on for a long period of time, it may not only be damaged,
thus shortening its useful life, but may also lead toa danger-
Ous accident.
