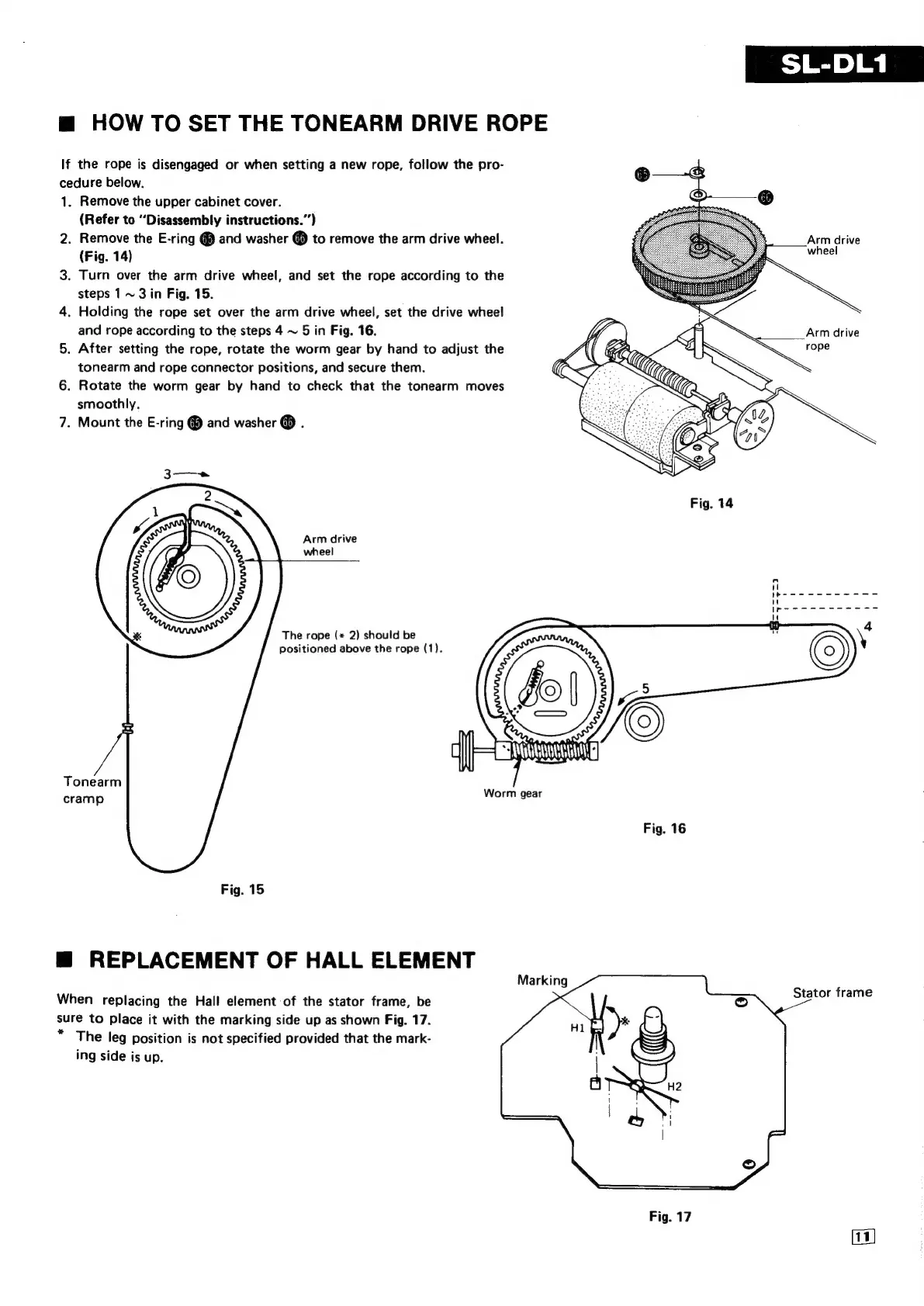

m HOW TO SET THE TONEARM DRIVE ROPE
If the rope is disengaged or when setting a new rope, follow the pro-
cedure below.
1.
2.
Tonearm
cramp
Remove the upper cabinet cover.
(Refer to “Disassembly instructions.’’)
Remove the E-ring @ and washer @ to remove the arm drive wheel.
(Fig. 14)
. Turn over the arm drive wheel, and set the rope according to the
steps 1 ~ 3 in Fig. 15.
. Holding the rope set over the arm drive wheel, set the drive wheel
and rope according to the steps 4 ~ 5 in Fig. 16.
. After setting the rope, rotate the worm gear by hand to adjust the
tonearm and rope connector positions, and secure them.
. Rotate the worm gear by hand to check that the tonearm moves
smoothly.
. Mount the E-ring @ and washer @ .
Arm drive
wheel
The rope (* 2) should be
positioned above the rope (1).
Fig. 15
@ REPLACEMENT OF HALL ELEMENT
When replacing the Hall element of the stator frame, be
sure to place it with the marking side up as shown Fig. 17.
* The leg position is not specified provided that the mark-
ing side is up.
Worm gear
SL-DL1
Arm drive
wheel
Arm drive
rope
Fig. 16
Stator frame
Fig. 17
