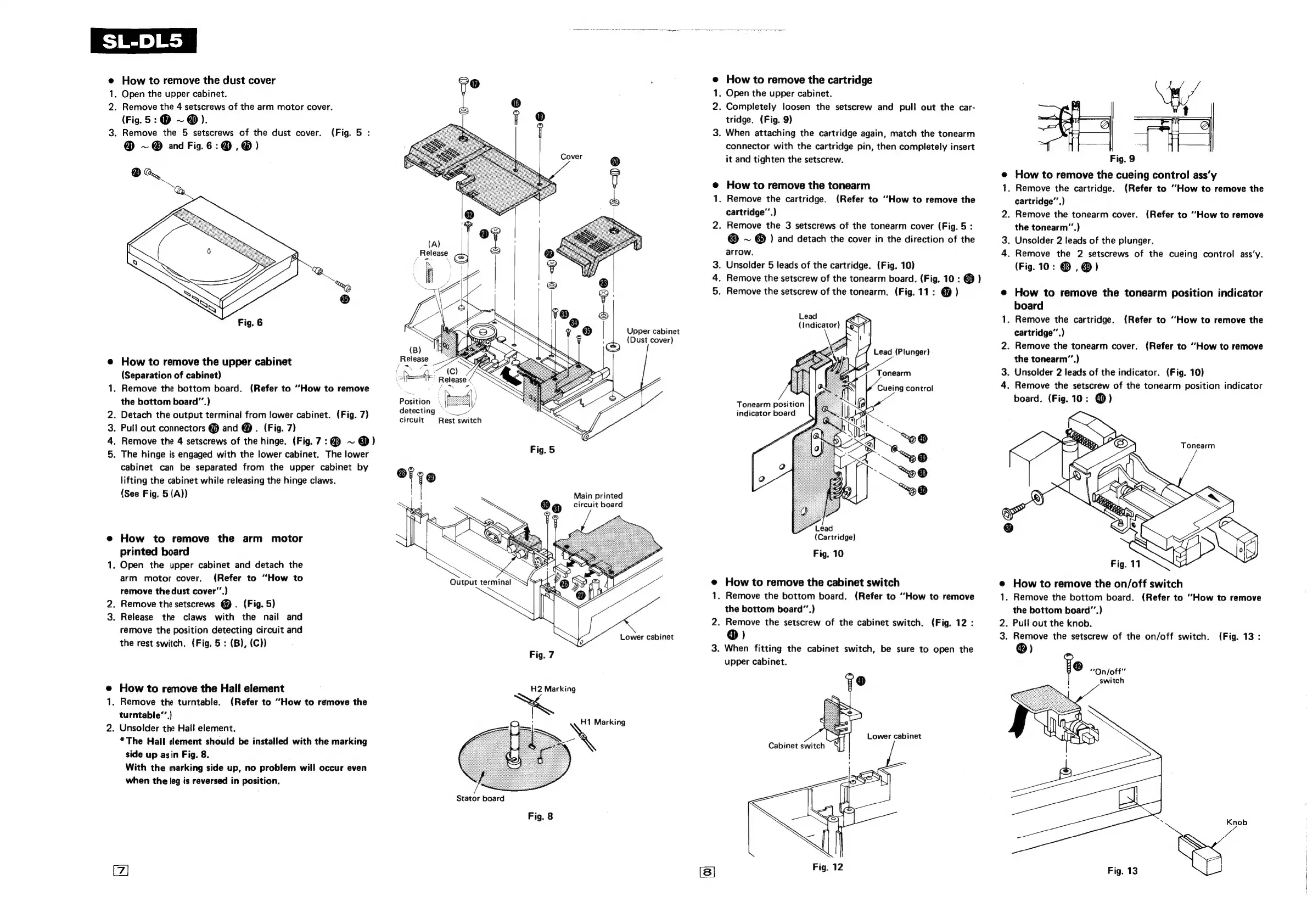

Technics SL-DL5 Service Manual

NO
oh WN
. Remove the 5 setscrews of the dust cover.
. Remove the bottom board.
. Remove the turntable.
How to remove the dust cover
. Open the upper cabinet.
. Remove the 4 setscrews of the arm motor cover.
(Fig. 5:@ ~@).
(Fig. 5 :
@ ~@ and Fig. 6:@,@)
®
Sy
°@
®
Fig. 6
How to remove the upper cabinet
(Separation of cabinet)
(Refer to “How to remove
the bottom board”.)
. Detach the output terminal from lower cabinet. (Fig. 7)
. Pull out connectors @ and @ . (Fig. 7)
. Remove the 4 setscrews of the hinge. (Fig. 7:@ ~ @)
. The hinge is engaged with the lower cabinet. The lower
cabinet can be separated from the upper cabinet by
lifting the cabinet while releasing the hinge claws.
{See Fig. 5 (A))
How to remove the arm motor
printed board
. Open the upper cabinet and detach the
arm motor cover. (Refer to “How to
remove the dust cover’’.)
. Remove the setscrews @). (Fig. 5)
. Release the claws with the nail and
remove the position detecting circuit and
the rest switch. (Fig. 5 : (B), (C))
How to remove the Hall element
(Refer to “How to remove the
turntable’’ )
. Unsolder the Hal! element.
*The Hall element should be installed with the marking
side up asin Fig. 8.
With the marking side up, no problem will occur even
when the leg is reversed in position.
®
e
1
2
3
e
1
2
(A)
Release
fS
Upper
cabinet
{Dust cover)
(B)
Release
af exas Re
Position \
detecting ~
circuit Rest switch
Fig. 5
@F ' ®
| Main printed
' %@ circuit board
SS
Output
tera
Ss
e
1
2
<a 6 Lower cabinet
3
H2 Marking
Stator board
Fig. 8
<\
H1 Marking
. Remove the cartridge.
How to remove the cartridge
. Open the upper cabinet.
. Completely loosen the setscrew and pull out the car-
tridge. (Fig. 9)
. When attaching the cartridge again, match the tonearm
connector with the cartridge pin, then completely insert
it and tighten the setscrew.
How to remove the tonearm
(Refer to ‘“‘How to remove the
cartridge’’.)
. Remove the 3 setscrews of the tonearm cover (Fig. 5 :
@® ~ @® ) and detach the cover in the direction of the
arrow.
. Unsolder 5 leads of the cartridge. (Fig. 10)
. Remove the setscrew of the tonearm board. (Fig. 10 : @ )
. Remove the setscrew of the tonearm. (Fig. 11: @)
Lead
(Indicator)
Tonearm position
indicator board
(Cartridge)
Fig. 10
How to remove the cabinet switch
. Remove the bottom board. (Refer to “How to remove
the bottom board’’.)
. Remove the setscrew of the cabinet switch. (Fig. 12 :
@)
. When fitting the cabinet switch, be sure to open the
upper cabinet.
Lower cabinet
Fig. 9
e How to remove the cueing control ass’y
1. Remove the cartridge. (Refer to “How to remove the
cartridge’’.)
2. Remove the tonearm cover.
the tonearm’)
3. Unsolder 2 leads of the plunger.
4. Remove the 2 setscrews of the cueing control ass‘y.
(Fig. 10: @,@)
(Refer to “How to remove
e How to remove the tonearm position indicator
board
1. Remove the cartridge.
cartridge’’.)
2. Remove the tonearm cover. (Refer to “How to remove
the tonearm.)
. Unsolder 2 leads of the indicator. (Fig. 10)
4. Remove the setscrew of the tonearm position indicator
board. (Fig. 10: @)
(Refer to “How to remove the
Ww
Tonearm
e How to remove the on/off switch
1. Remove the bottom board. (Refer to ‘“‘How to remove
the bottom board”’.)
2. Pull out the knob.
3. Remove the setscrew of the on/off switch. (Fig. 13:
@)
fe “On/oft”
switch
Knob
Fig. 13
