6.2. Servo Adjustment Procedure
1. Turn on the power.
2. Load the test disc (SZZP1054C).
3. Hold down the REPEAT button for at least 2 seconds, and then
press the PAUSE button for at least 2 seconds while continuing to
hold down the REPEAT button.
4. Press the PLAY button, and play for 10 seconds.

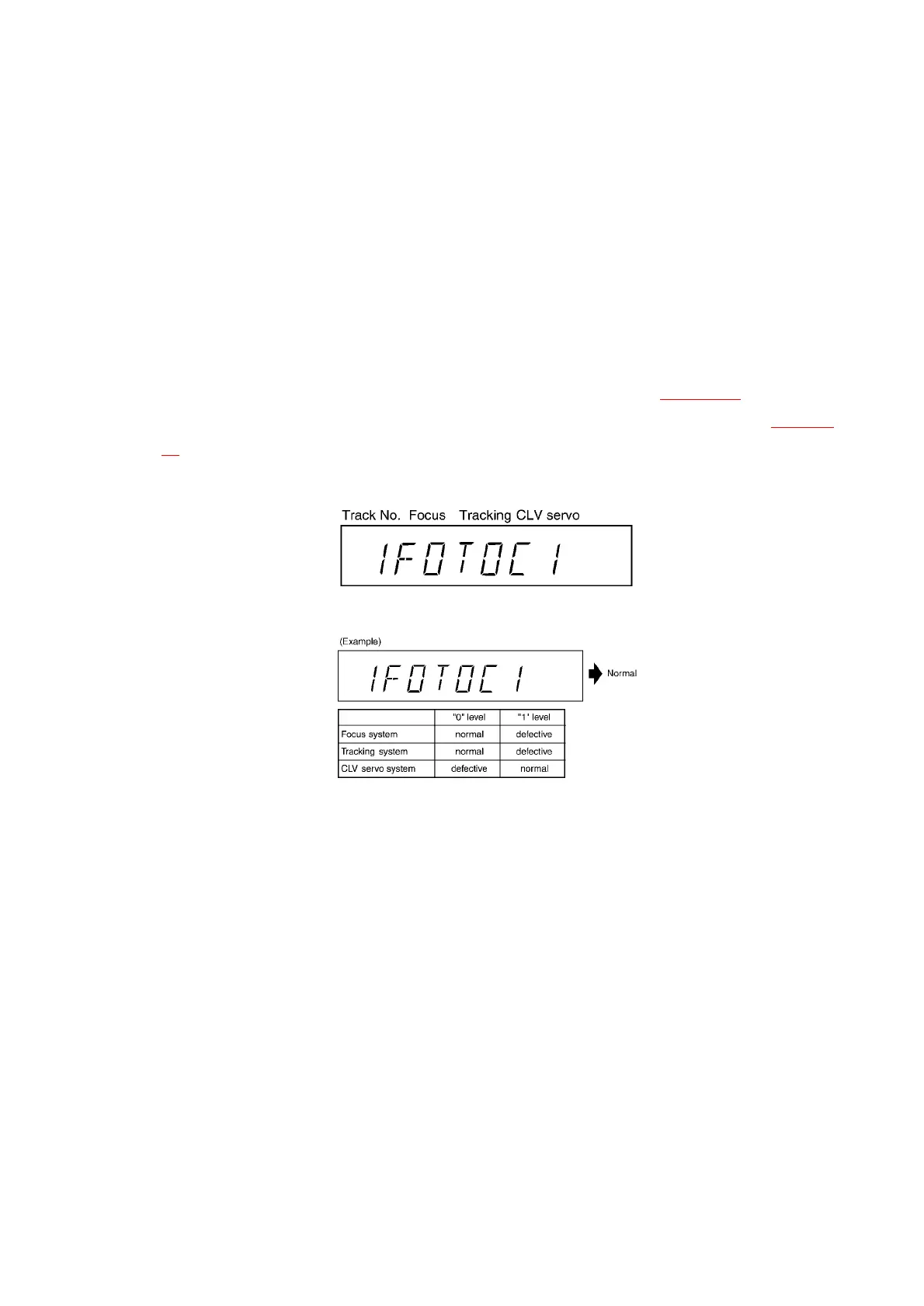

5. Servo adjustment results are displayed. Refer to Fig. 6-2. For
further information about servo adjustment results, refer to Fig. 6-
3.
Fig. 6-2.
Fig. 6-3.
6. Remove the disc and turn off the power.
6.3. Error code based on troubleshooting
- This unit is satisfactory if the error code is E00 and E02.
- Before testing, check that the test disc is free of scratches and
optical pickup is clean.
33
