5. Location of Controls
6. Operation Checks and Component Replacement /
Procedures
- This section describes procedures for checking the operation of
the major printed circuit boards and replacing the main
components.
- For reassembly after operation checks or replacement, reverse the
respective procedures. Special reassembly procedures are
described only when required.
6.1. Checking for the power supply P.C.B.

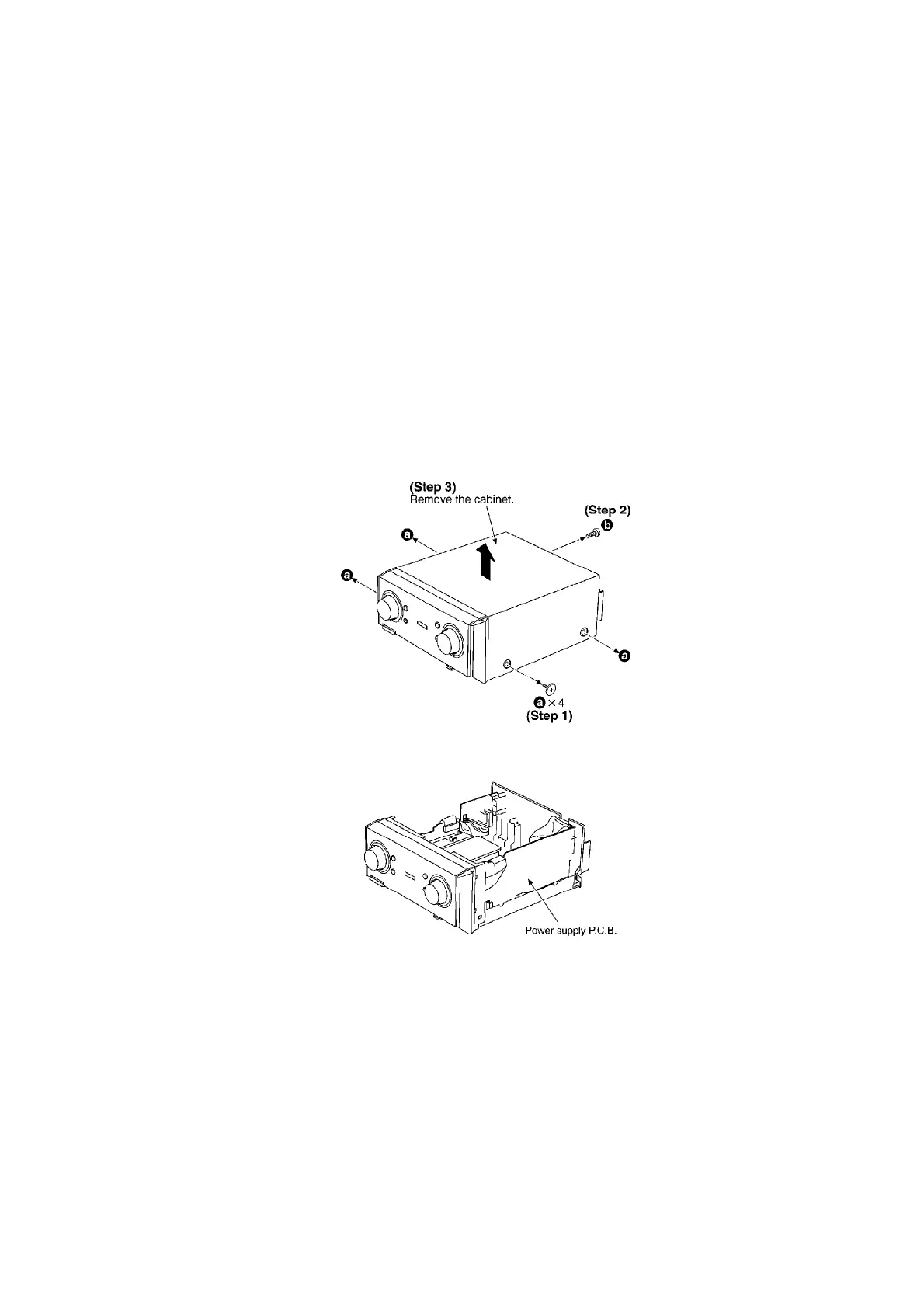

- Check the power supply P.C.B. as shown below.
6.2. Checking for the operation P.C.B.
- Follow the (Step 1) - (Step 3) of item 6.1.
To Next Page
