Technics SL-P2000

SL-P2000

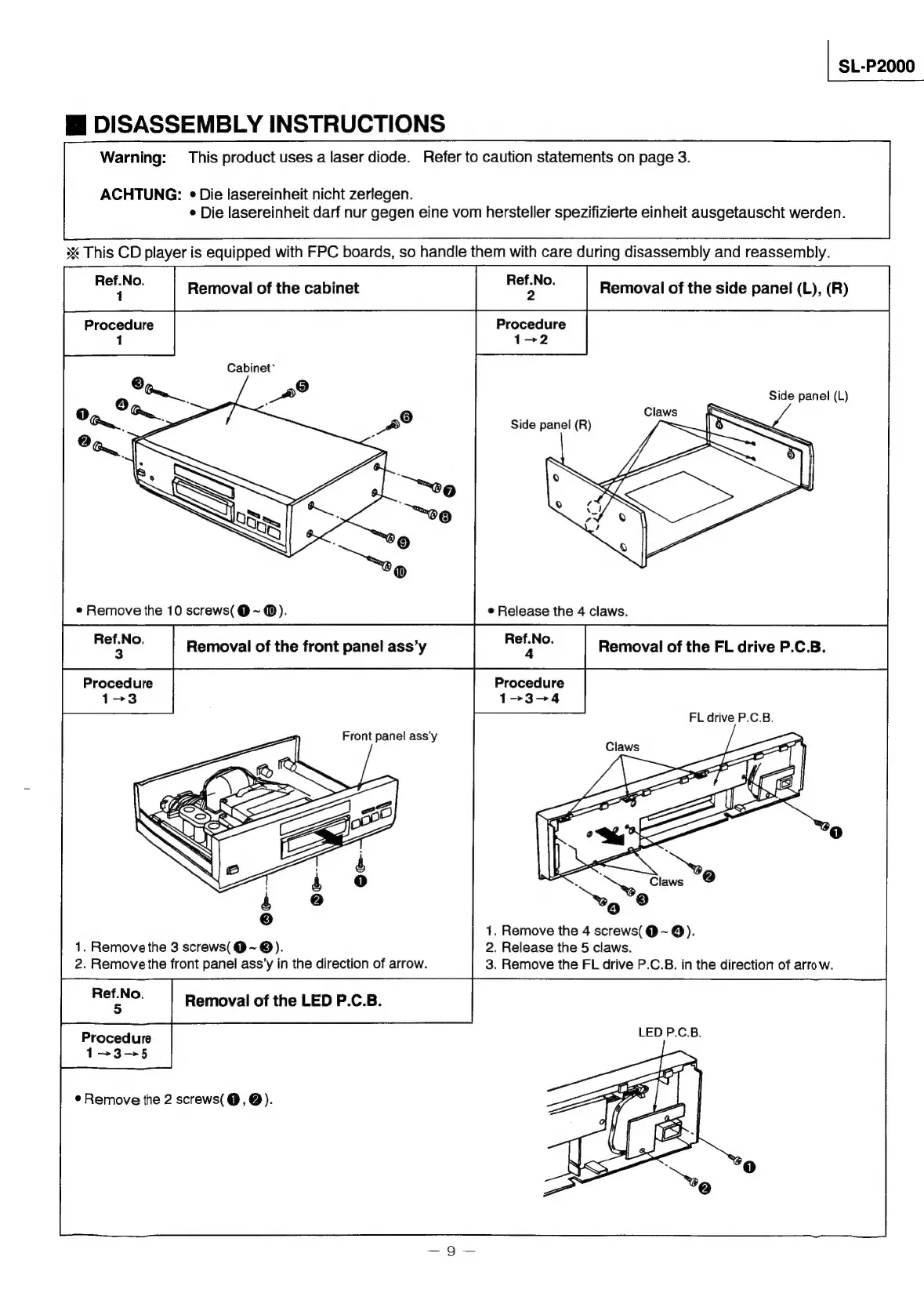

Mi DISASSEMBLY INSTRUCTIONS
Warning: _ This product uses a laser diode. Refer to caution statements on page 3.
ACHTUNG: « Die lasereinheit nicht zerlegen.
¢ Die lasereinheit darf nur gegen eine vom hersteller spezifizierte einheit ausgetauscht werden.
This CD player is equipped with FPC boards, so handle them with care during disassembly and reassembly.
ea Removal of the cabinet Pe | Removal of the side panel (L), (R)
Procedure Procedure
1 1-2
Cabinet’
Side panel (L)
e Release the 4 claws.
eae Removal of the front panel ass’y Removal of the FL drive P.C.B.
Procedure
1-3-4
FL drive P.C.B.
Front panel ass'y
1. Remove the 4 screws( @~@).
2. Release the 5 claws.
3. Remove the FL drive P.C.B. in the direction of arrow.
1. Remove the 3 screws( @~ @).
2. Remove the front panel ass’y in the direction of arrow.
LED P.C.B.
Procedure
1-3-5
* Remove the 2 screws(@, @).
