SL-P222A

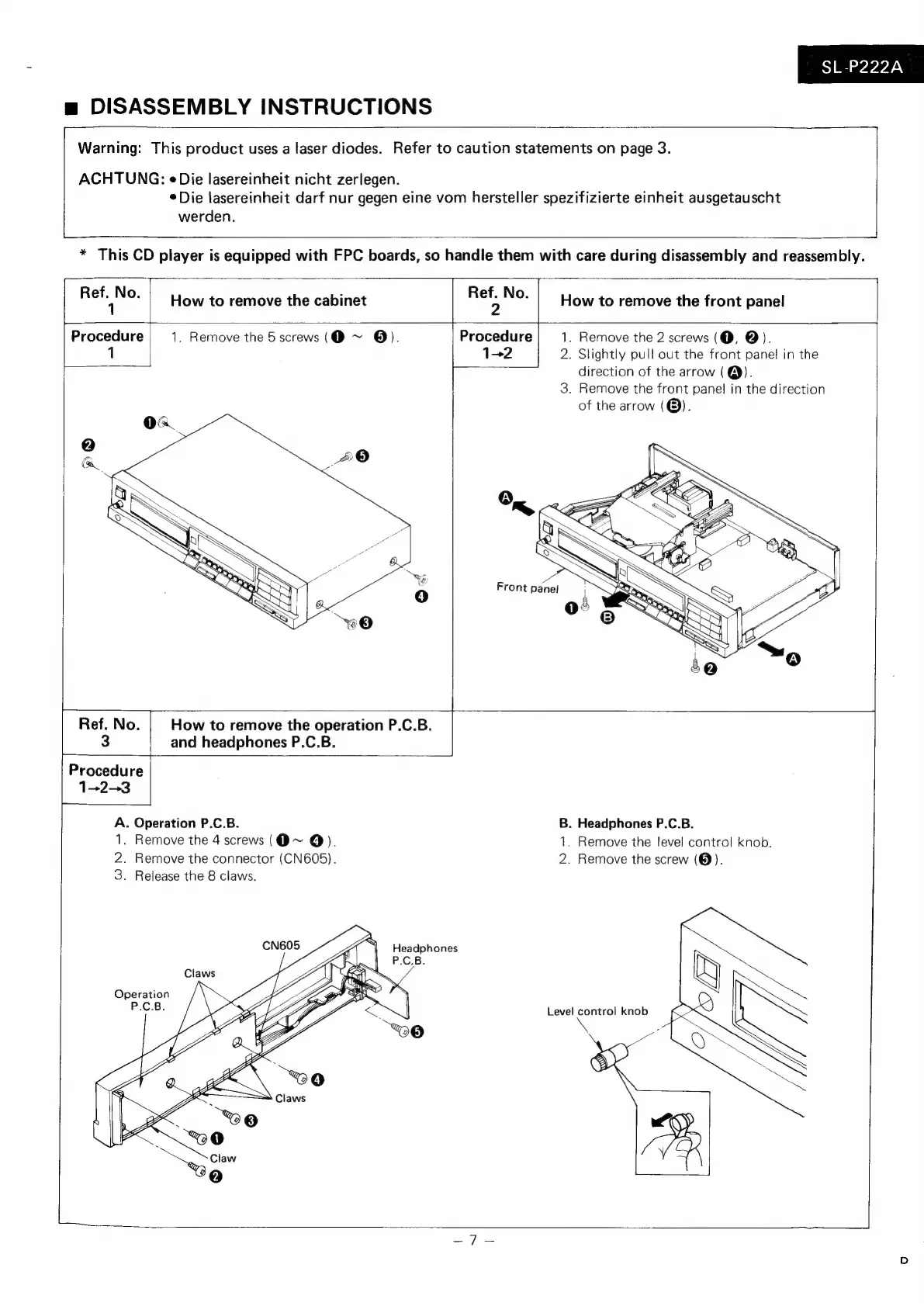

m DISASSEMBLY INSTRUCTIONS
Warning: This product uses a laser diodes. Refer to caution statements on page 3.
ACHTUNG: e Die lasereinheit nicht zerlegen.
¢ Die lasereinheit darf nur gegen eine vom hersteller spezifizierte einheit ausgetauscht
werden.
UT _
* This CD player is equipped with FPC boards, so handle them with care during disassembly and reassembly.
Ref. No.
2
Procedure
1-2
Ref. No.
1
Procedure | 1. Remove the 5 screws (@~ @).
1
How to remove the cabinet How to remove the front panel
1. Remove the 2 screws (@, @).
2. Slightly pull out the front panel in the
direction of the arrow ( @).
3. Remove the front panel in the direction
of the arrow (@).
How to remove the operation P.C.B.
Ref. No.
3 and headphones P.C.B.
Procedure
1-2-3
A. Operation P.C.B. B. Headphones P.C.B.
1. Remove the 4 screws (Q@~ @). 1. Remove the level control knob.
2. Remove the connector (CN605). 2. Remove the screw (Q).
3. Release the 8 claws.
