Technics SL-PJ37A

Sap
e

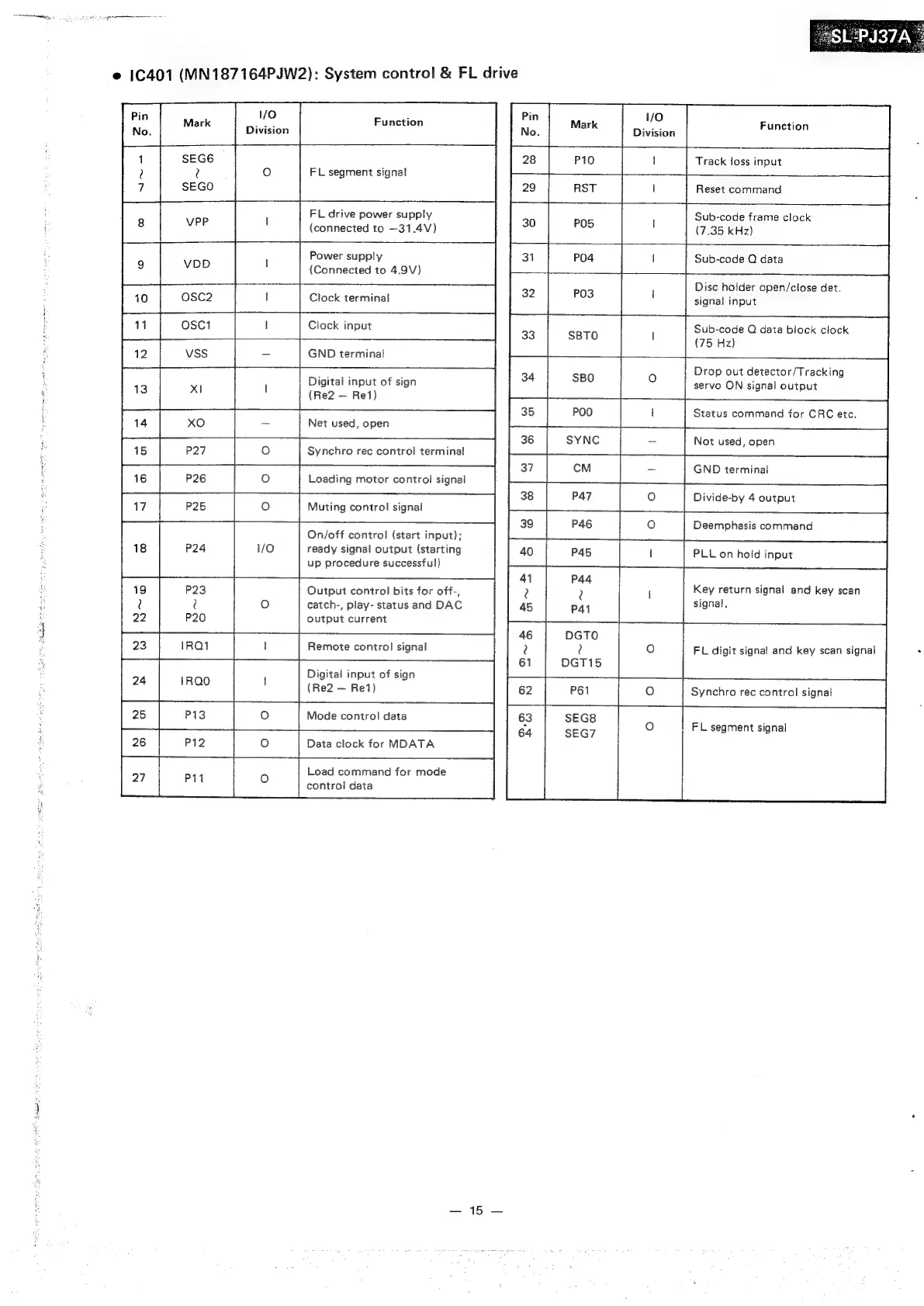

10401
(MN187164PJW2):
System
control
&
FL
drive
1/0
Rio Function
Division
FL segment signal
FL drive power supply
(connected to —31.4V)
Power supply
(Connected to 4.9V)
Clock terminal
Clock input
GND terminal
Digital input of sign
(Re2 — Re1)
Net used, open
Synchro rec control terminal
Loading motor control signal
Muting control signal
On/off contro! (start input);
ready signal output (starting
up procedure successful)
Output control bits for off-,
catch-, play- status and DAC
output current
Remote control signal
Digital input of sign
(Re2 — Re1)
Mode control data
Data clock for MDATA
Load command for mode
control data
245
1/0
Division
Function
Track loss input
Reset command
Sub-code frame clock
(7.35 kHz)
Sub-code QO data
| |
Disc holder open/close det.
al signal input
Sub-code Q data block clock
(75 Hz)
0 “T Drop out detector/Tracking
servo ON signal output
Status command for CRC etc.
Not used, open
GND terminal
Divide-by 4 output
Deemphasis command
PLL on hold input
Key return signal and key scan
signal.
FL digit signal and key scan signal
Synchro rec control signal
FL segment signal
