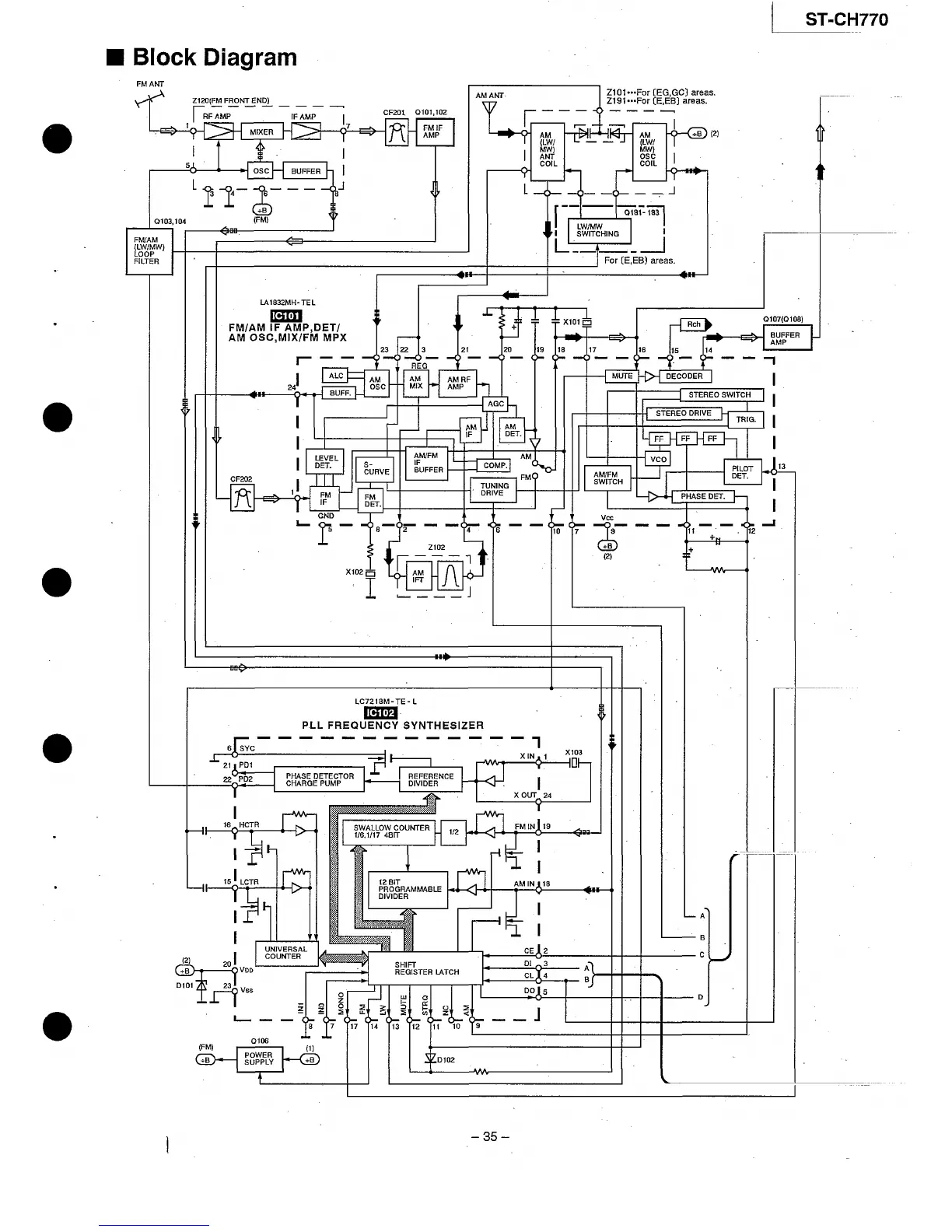

Technics ST-CH770 - Block Diagram Overview; Tuner, PLL, and FM;AM Control Blocks; Frequency Synthesizer and Control Blocks
