Technics ST-GT350 Operating Instructions

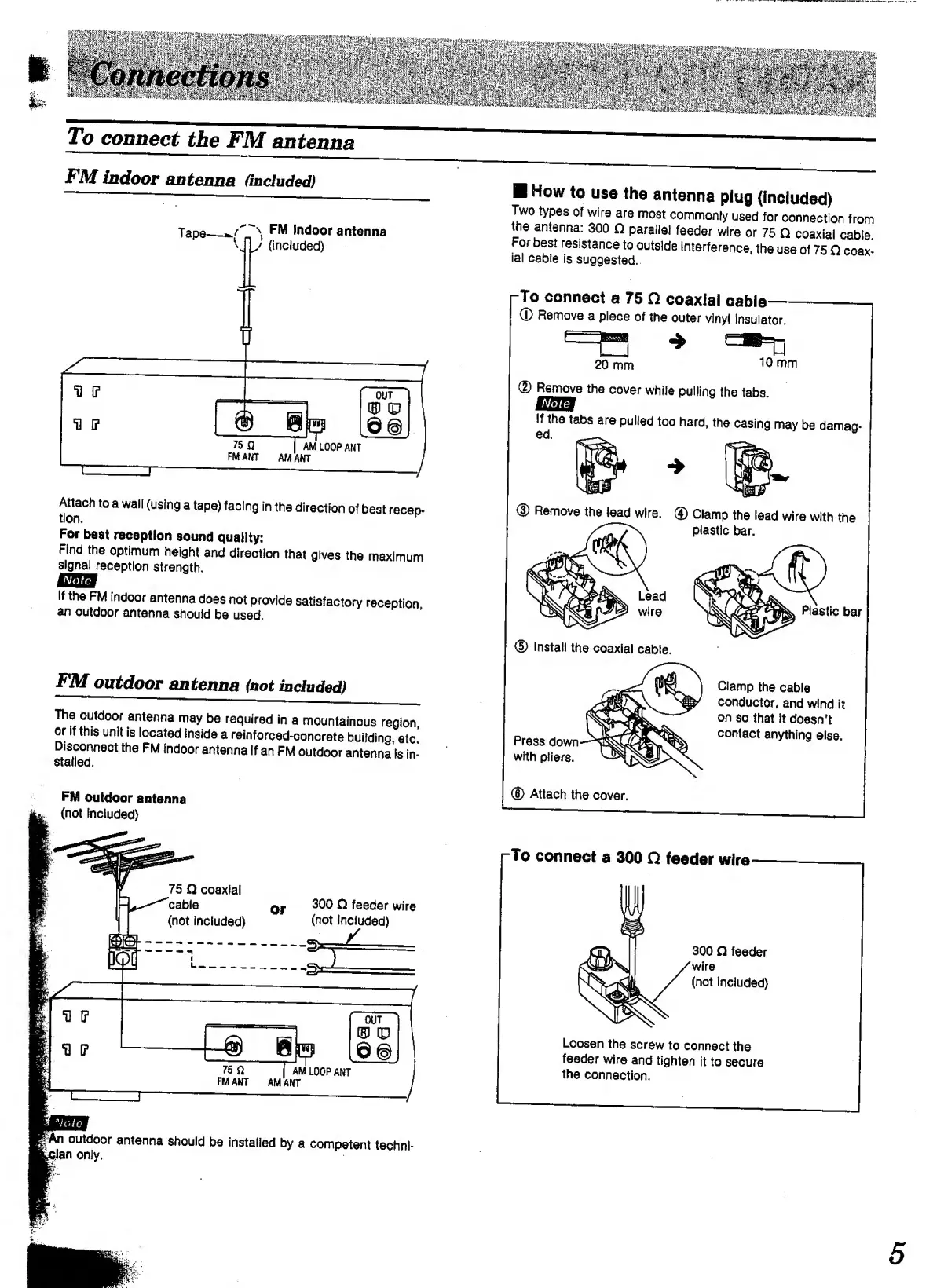

To connect the FM antenna
FM indoor antenna (included)
Tape— F M Indoor antenna
Uly (included)
75 Q AM LOOP ANT
FM ANT AM ANT
Attach to a waif (using a tape) facing in the direction of best recep¬
tion. K
For best reception sound quality:
Find the optimum height and direction that gives the maximum
signal reception strength.
If the FM indoor antenna does not provide satisfactory reception
an outdoor antenna should be used.
FM outdoor antenn a (not included)
The outdoor antenna may be required in a mountainous region,
or if this unit is located Inside a reinforced-concrete building etc
Disconnect the FM fndoor antenna If an FM outdoor antenna Is in-
stalled.
FM outdoor antenna
(not Included)
■ How to use the antenna plug {included)
Two types of wire are most commonly used for connection from
the antenna: 300 n parallel feeder wire or 75 n coaxial cable.
For best resistance to outside interference, the use of 75 £1 coax¬
ial cable is suggested.
-To connect a 75 C 5 coaxial cable-.
® Remove a piece of the outer vinyl Insulator
e =H ♦ =»D
20 mm 10 m r n
© Remove the cover while pulling the tabs
MXhinw
If the tabs are pulled too hard, the casing may be damag¬
ed. _
Remove the lead wire. ® Clamp the lead wire with the
plastic bar.
® Install the coaxial cable.
Press down
with pliers.
® Attach the cover.
Plastic bar
Clamp the cable
conductor, and wind it
on so that it doesn't
contact anything else.
75 Q coaxial
''cable
(not Included)
300 O feeder wire
(not included)
75Q I AM LOOP ANT
FM ANT AM ANT
-To connect a 300 Q feeder wire-
300 O feeder
wire
(not included)
Loosen the screw to connect the
feeder wire and tighten it to secure
the connection.
PAn outdoor antenna should be installed by a competent techni-
jfeCian only.
