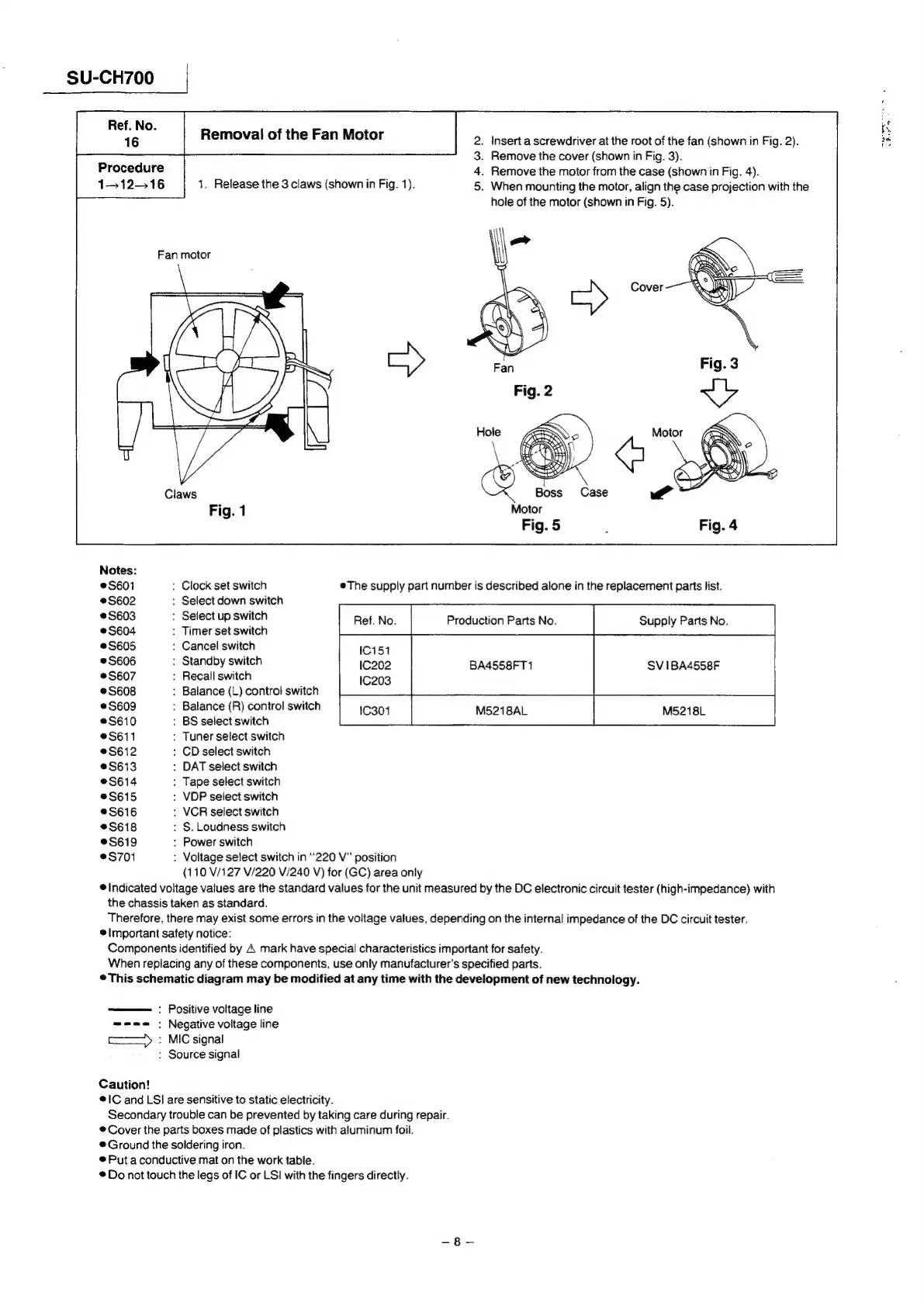

SU-CH700
Notes:
eS601
S602
S603
eS604
eS605
eS606
eS607
@S608
eS609
eS610
eS611
S612
eS613
eS614
S615
S616
S618
©S619
S701
comer
a
Ref.
No.
se
He
Removal
of
the
Fan
Motor
Procedure
1—-12—16
Fan
motor
:
Clock
set
switch
:
Select
down
switch
:
Select
up
switch
:
Timer
set
switch
:
Cancel
switch
:
Standby
switch
:
Recall
switch
:
Balance
(L)
contro!
switch
:
Balance
(R)
control
switch
:
BS
select
switch
:
Tuner
select
switch
:
CD
select
switch
:
DAT
select
switch
:
Tape
select
switch
:
VDP
select
switch
:
VCR
select
switch
:
§.
Loudness
switch
:
Power
switch
:
Voltage
select
switch
in
ā€œ220
Vā€
position
1.
Release
the
3
claws
(shown
in
Fig.
1).
.
Insert
a
screwdriver
at
the
root
of
the
fan
(shown
in
Fig.
2).
.
Remove
the
cover
(shown
in
Fig.
3).
.
Remove
the
motor
from
the
case
(shown
in
Fig.
4).
When
mounting
the
motor,
align
the
case
projection
with
the
hole
of
the
motor
(shown
in
Fig.
5).
Oh
wD
eThe
supply
part
number
is
described
alone
in
the
replacement
parts
list.
Production
Parts
No.
Supply
Parts
No.
BA4558FT1
SV
1IBA4558F
1C301
M5218AL
M5218L
(110
V/127
V/220
V/240
V)
for
(GC)
area
only
Indicated
voltage
values
are
the
standard
values
for
the
unit
measured
by
the
DC
electronic
circuit
tester
(high-impedance)
with
the
chassis
taken
as
standard.
Therefore,
there
may
exist
some
errors
in
the
voltage
values,
depending
on
the
internal
impedance
of
the
DC
circuit
tester.
Important
safety
notice:
Components
identified
by
A.
mark
have
special
characteristics
important
for
safety.
When
replacing
any
of
these
components,
use
only
manufacturer's
specified
parts.
Ā®
This
schematic
diagram
may
be
modified
at
any
time
with
the
development
of
new
technology.
:
Positive
voltage
line
:
Negative
voltage
line
MIC
signal
:
Source
signal
Caution!
IC
and
LSI
are
sensitive
to
static
electricity.
Secondary
trouble
can
be
prevented
by
taking
care
during
repair.
Ā®
Cover
the
parts
boxes
made
of
plastics
with
aluminum
foil.
Ā®
Ground
the
soldering
iron.
Put
a
conductive
mat
on
the
work
table.
®Do
not
touch
the
legs
of
IC
or
LSI
with
the
fingers
directly.
