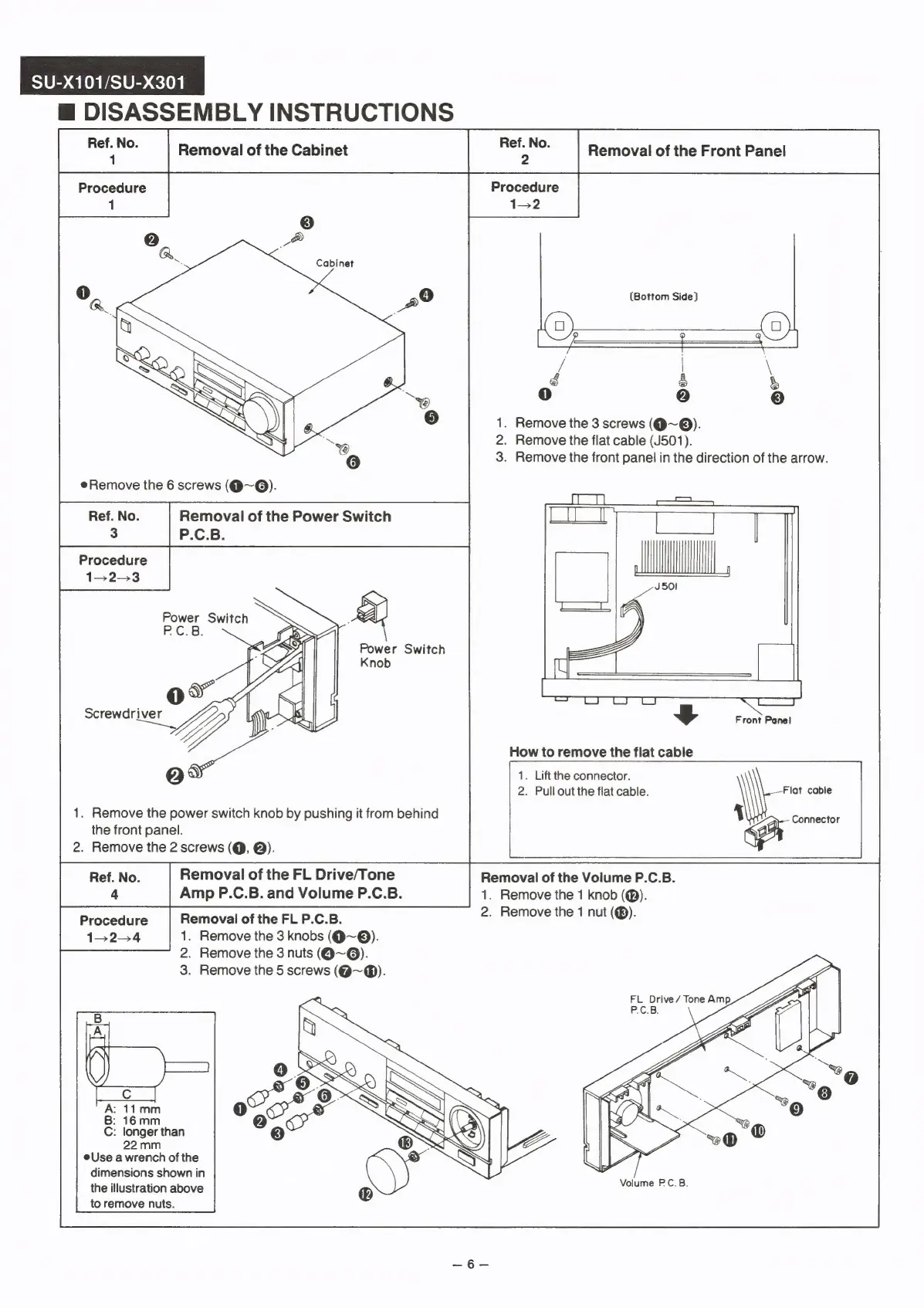

SU-X101/SU-X301
@
DISASSEMBLY
INSTRUCTIONS
eae
Removal
of
the
Cabinet
eee
Removal
of
the
Front
Panel
Procedure
Procedure
1
1—2
2]
&
Cabinet
(Bottom
Side)
|
\
&
&
%
ct)
12)
8
1.
Remove
the
3
screws
(@~®).
2.
Remove
the
flat
cable
(J501).
3.
Remove
the
front
panel
in
the
direction
of
the
arrow.
e@Remove
the
6
screws
(@~
©).
Removal
of
the
Power
Switch
P.C.B.
Procedure
1-2-3
Power
Switch
Knob
Screwdriver
ee
»
How
to
remove
the
flat
cable
Front
Panel
1.
Lift
the
connector.
2.
Pull
out
the
flat
cable.
—Flat
cable
a
Connector
op
1.
Remove
the
power
switch
knob
by
pushing
it
from
behind
the
front
panel.
2.
Remove
the
2
screws
(@,
@).
Ref.
No.
Removal
of
the
FL
Drive/Tone
Removal
of
the
Volume
P.C.B.
4
Amp
P.C.B.
and
Volume
P.C.B.
1.
Remove
the
1
knob
(@).
Procedure
|
Removal
of
the
FL
P.C.B.
eo
rermene
reat
But):
12-4
1.
Remove
the
3
knobs
(@~®).
2.
Remove
the
3
nuts
(@~@).
3.
Remove
the
5
screws
(@~@).
A:
11mm
B:
16mm
C:
longer
than
22mm
e@Use
a
wrench
of
the
dimensions
shown
in
the
illustration
above
to
remove
nuts.
Volume
PC.B.
