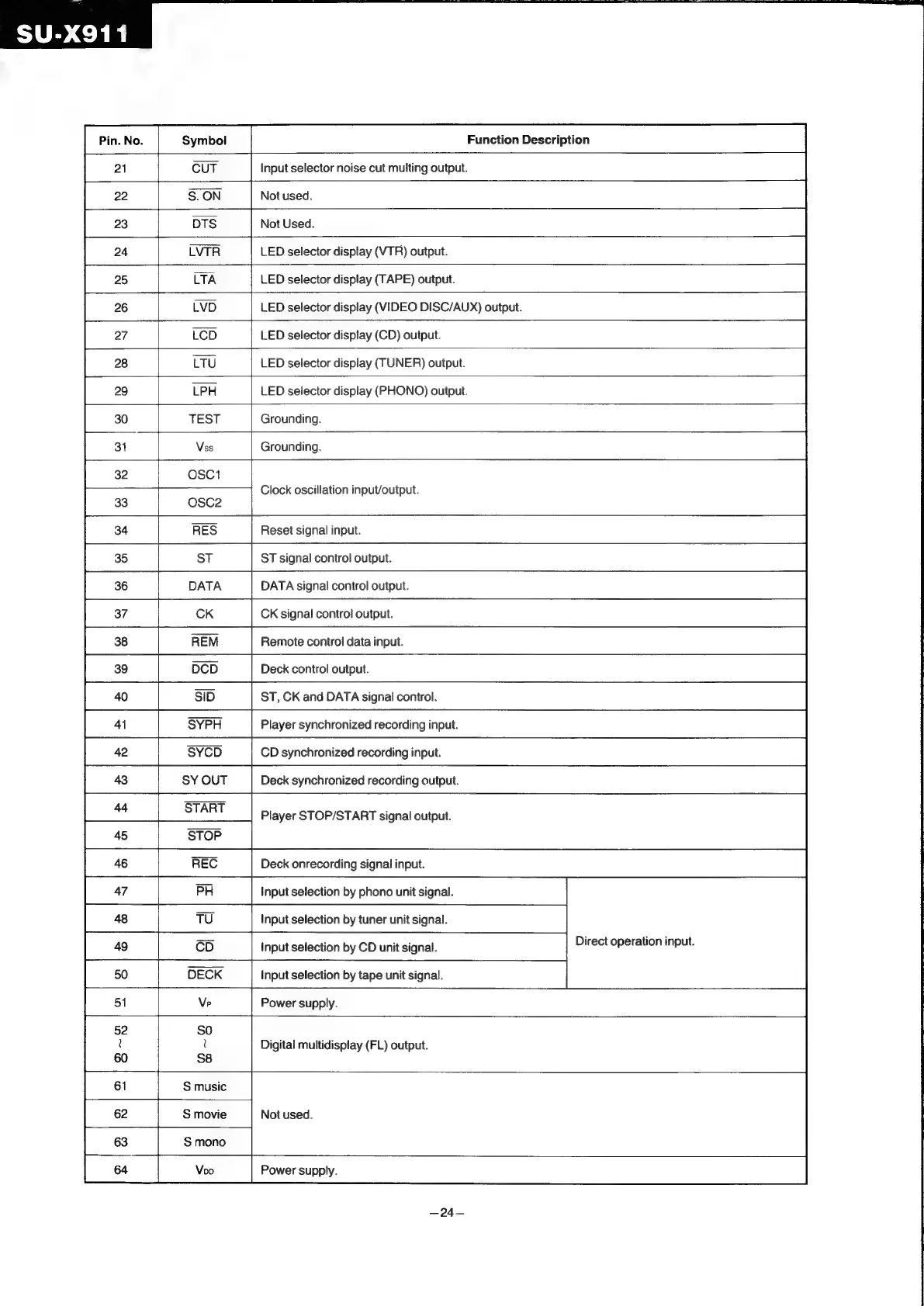

Function Description
Input selector noise cut muiting output.
Not used.
Not Used.
LED selector display (VTR) output.
LED selector display (TAPE) output.
LED selector display (VIDEO DiSC/AUX) output.
LED selector display (CD) output.
LED selector display (TUNER) output.
LED selector display (PHONO) output.
Grounding.
Grounding.
Clock oscillation input/output.
Reset signal input.
ST signal control output.
DATA signal control output.
SO
Player synchronized recording input.
CD synchronized recording input.
Deck synchronized recording output.
Player STOP/START signal output.
Deck onrecording signal input.
Input selection by phono unit signal.
Input selection by tuner unit signal.
Input selection by CD unit signal. Direct operation input.
Input selection by tape unit signal.
Power supply.
So
M Digital multidisplay (FL) output.
$8
oD
Power supply.
