Technics SU-X933 Service Manual

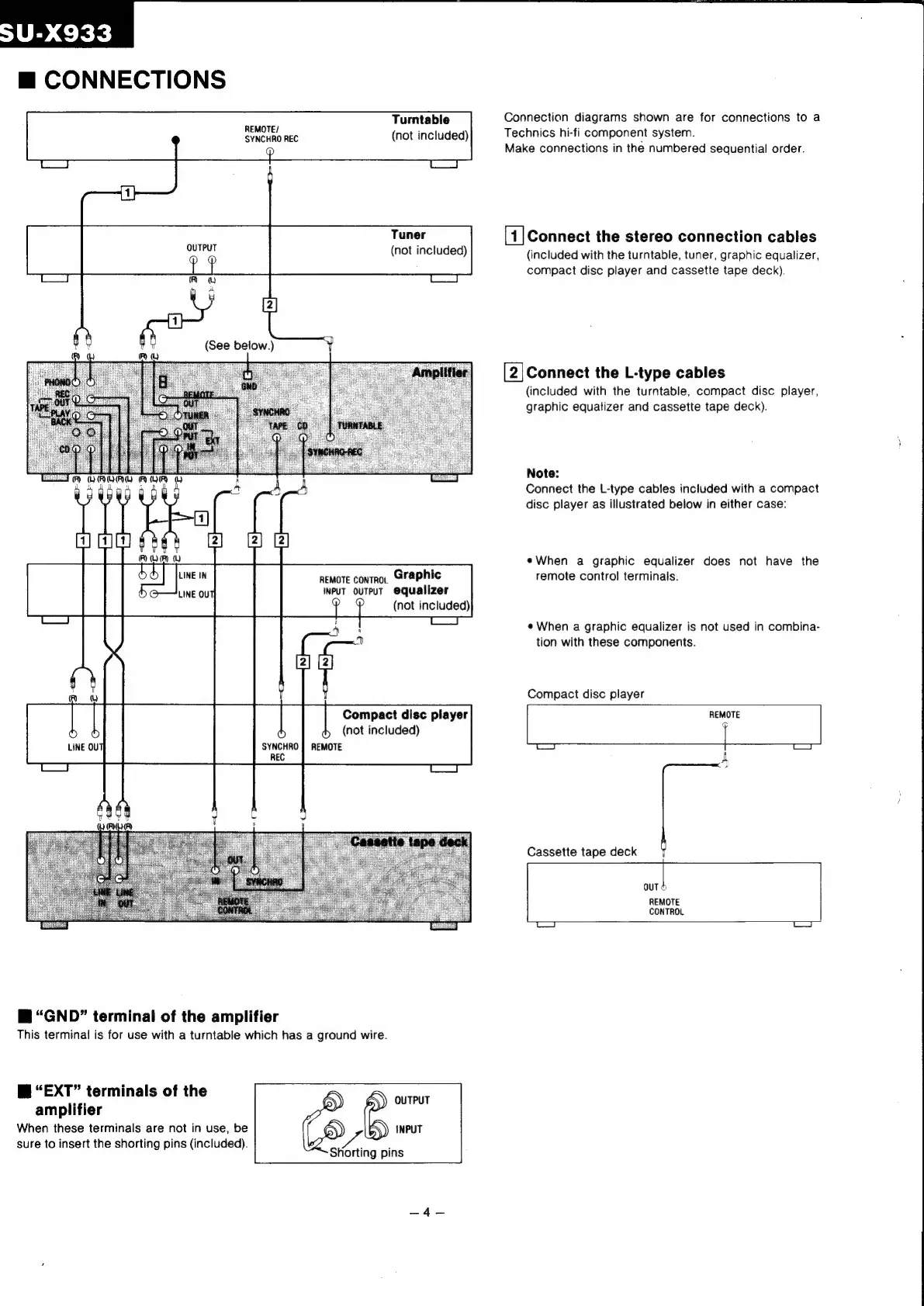

m@ CONNECTIONS
sciedTes Turntable
SYNCHRO REC (not included)
Tuner
OUTPUT
(not
included)
QD QD
A 0
é : (See below.)
Re)
RH OHUROY MOR
i cen
MN
{J
REMOTE contro. Graphic
INPUT OUTPUT equalizer
® @
(not included)
i “GND” terminal of the amplifier
This terminal is for use with a turntable which has a ground wire.
“EXT” terminals of the
amplifier
When these terminals are not in use, be
sure to insert the shorting pins (included).
Connection diagrams shown are for connections to a
Technics hi-fi component system.
Make connections in the numbered sequential order.
[1]Connect the stereo connection cables
(included with the turntable, tuner, graphic equalizer,
compact disc player and cassette tape deck).
[2|Connect the L-type cables
(included with the turntable, compact disc player,
graphic equalizer and cassette tape deck).
Note:
Connect the L-type cables included with a compact
disc player as illustrated below in either case:
eWhen a graphic equalizer does not have the
remote control terminals.
«When a graphic equalizer is not used in combina-
tion with these components.
Compact disc player
REMOTE
q
Cassette tape deck y
OUTS
REMOTE
CONTROL
