Technics SU-X933 Service Manual

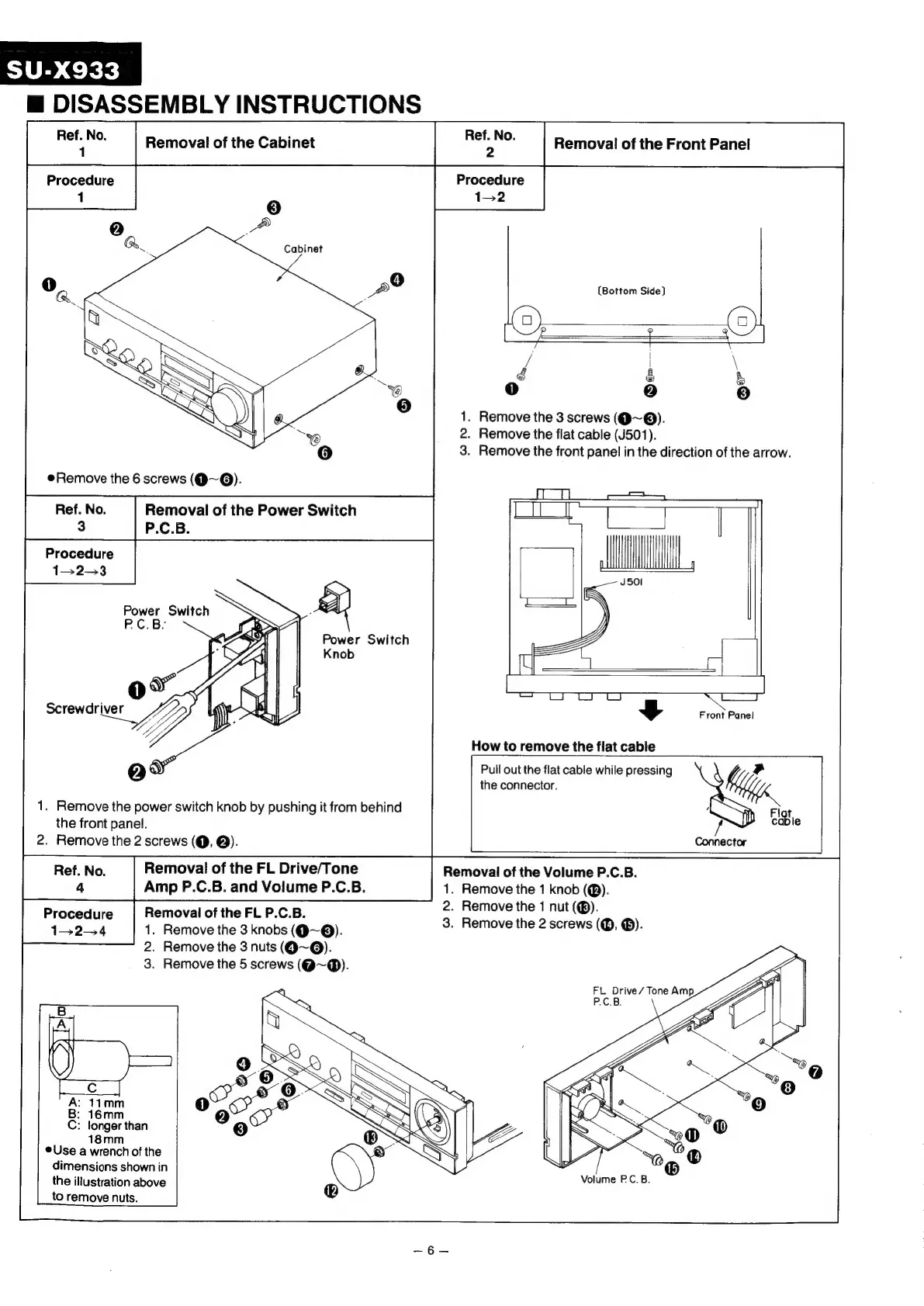

m@ DISASSEMBLY INSTRUCTIONS
| Removal of the Cabinet
Removal of the Front Panel
Procedure
1—2
Cabinet
(Bottom Side)
&
13]
1. Remove the 3 screws (@~®).
2. Remove the flat cable (J501).
3. Remove the front panel in the direction of the arrow.
Remove the 6 screws (Q@~@).
Removal of the Power Switch
P.C.B.
Procedure
152-3
Power Switch
Front Panel
How to remove the flat cable
a
Pull out the flat cable while pressing
the connector.
1. Remove the power switch knob by pushing it from behind
the front panel.
2. Remove the 2 screws (@, @).
Removal of the Volume P.C.B.
Ref. No. Removal of the FL Drive/Tone
4
Amp
P.C.B.
and
Volume
P.C.B.
1.
Remove
the
1
knob
(@).
2. Remove the 1 nut (®).
Procedure Removal of the FL P.C.B.
1. Remove the 3 knobs (Q@~®). 3. Remove the 2 screws (Q, ®).
2. Remove the 3 nuts (Q@~@).
3. Remove the 5 screws (@~@®).
tie
Connector
ae
B: 16mm
C: longer than
18mm
Use a wrench of the
dimensions shown in
the illustration above
to remove nuts.
