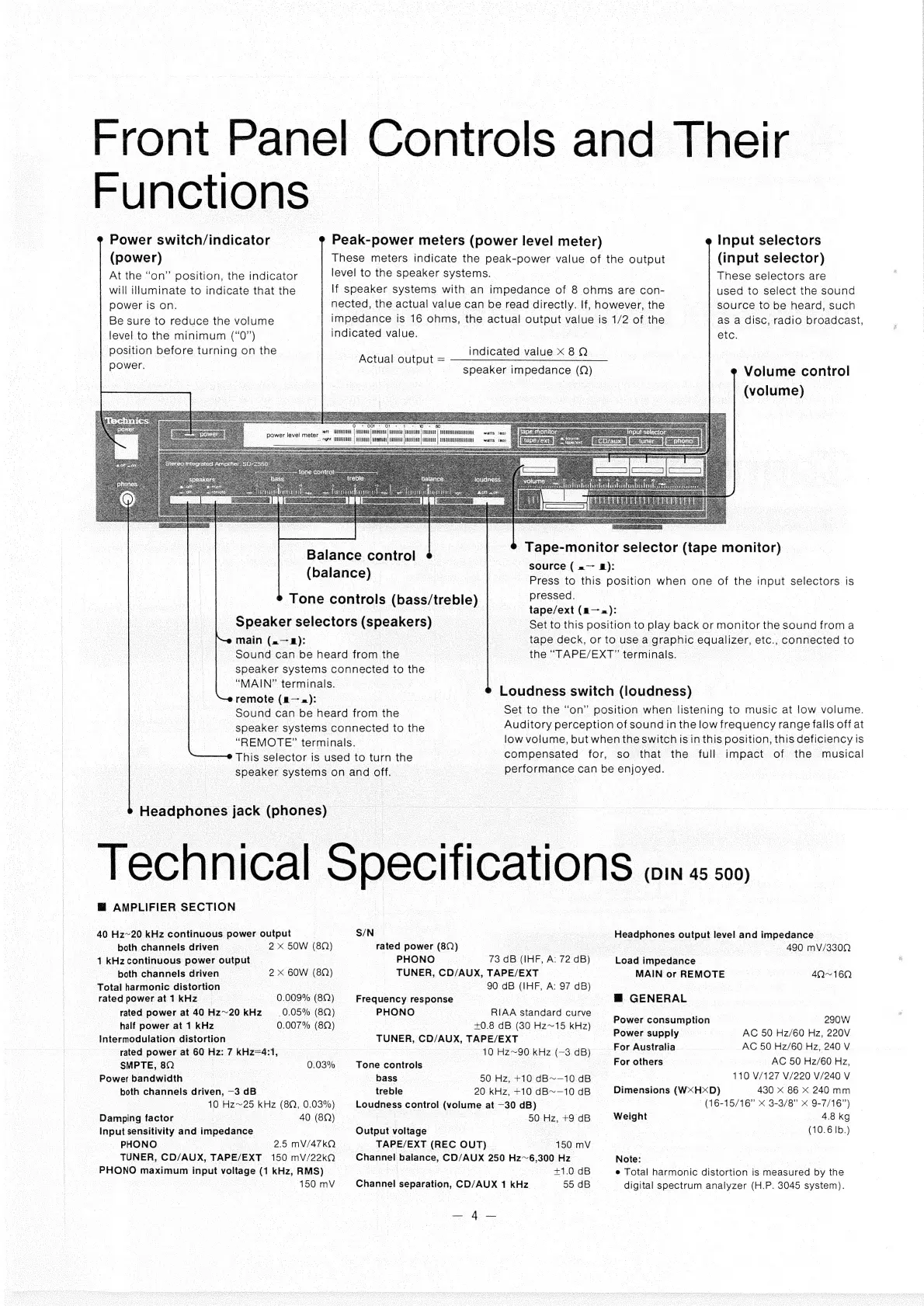

Technics SU-Z550 User Manual

Front Panel Controls and Their
Functions
Power switch/indicator
(power)
At the “on” position, the indicator
will illuminate to indicate that the
power is on.
Be sure to reduce the volume
level to the minimum (“0”)
position before turning on the
power.
Peak-power meters (power level meter)
These meters indicate the peak-power value of the output
level to the speaker systems.
If speaker systems with an impedance of 8 ohms are con-
nected, the actual value can be read directly. If, however, the source to be heard, such
impedance is 16 ohms, the actual output value is 1/2 of the | as a disc, radio broadcast,
indicated value. etc.
indicated value X 8Q
speaker impedance (Q)
Input selectors
(input selector)
These selectors are
used to select the sound
Actual output =
Volume control
(volume)
Ore OOM COM oF Wo BO
feet, THVHELERLNE | ANTLNTL [UMN THUG AUUUUCNNE TUTTE | HTERHRELUILLULEENTEL Watts coy
AUMNNCINAE TITLHAUIEE
power level meter
coe OG TETTTCTTUUATE | TTL HAE | CUTOUT) UTE TUTE watts (se:
Tape-monitor selector (tape monitor)
source ( =— @):
Press to this position when one of the input selectors is
pressed.
tape/ext (a— 2):
Set to this position to play back or monitor the sound from a
tape deck, or to use a graphic equalizer, etc., connected to
the “TAPE/EXT” terminals.
Balance control
(balance)
Tone controls (bass/treble)
Speaker selectors (speakers)
main (a—#):
Sound can be heard from the
speaker systems connected to the
“MAIN” terminals.
remote (g—«):
Sound can be heard from the
speaker systems connected to the
“REMOTE” terminals.
This selector is used to turn the
speaker systems on and off.
Loudness switch (loudness)
Set to the “on” position when listening to music at low volume.
Auditory perception of sound in the low frequency range falls off at
low volume, but when the switch is in this position, this deficiency is
compensated for, so that the full impact of the musical
performance can be enjoyed. |
Headphones jack iprenes)
- Technical Specifications cw soo
@ AMPLIFIER SECTION
40 Hz~20 kHz continuous power output S/N Headphones output level and impedance
both channels driven | 2X 50W (82) rated power (822) Le = : 490 mV/330Q
1 kHz continuous power output PHONO 73 dB (IHF, A: 72 dB) Load impedance
both channels driven 2X BOW (8) TUNER, CD/AUX, TAPE/EXT MAIN or REMOTE 40~160
Total harmonic distortion : 90 dB (IHF, A: 97 dB) :
rated power at1 kHz 0.009% (89) Frequency response M@ GENERAL
rated power at 40 Hz~20 kHz =—_:0.05% (82) PHONO RIAA standard curve :
Power consumption 290W
half power at 1 kHz
Intermodulation distortion
rated power at 60 Hz: 7 kHz= 4:1, eS
SMPTE, 8Q 0.03%
Power bandwidth >
both channels driven, —3 dB
10 Hz~25 kHz (8, 0.03%)
0.007% (8Q)
Damping factor 40 (8Q)
Input sensitivity and impedance
PHONO 2.5 mV/47kQ
TUNER, CD/AUX, TAPE/EXT 150 mV/22kQ
PHONO maximum input voltage (1 kHz, RMS)
150 mV
+0.8 dB (80 Hz~15 kHz)
TUNER, CD/AUX, TAPE/EXT
10°HZ~90 KHz (—3:dB)
Tone controls ee
bass 50 Hz, +10 dB~—10 dB
treble 20 kHz, +10 dB~—10 dB
Loudness control (volume at —30 dB)
50 Hz, +9 dB
Output voltage
TAPE/EXT (REC OUT) | S 150 mV
Channel balance, CD/AUX 250 Hz~6,300 Hz
+1.0:dB
Channel separation, CD/AUX 1 kHz 55 dB
— 4 —
Power supply
For Australia
For others
AC 50 Hz/60 Hz, 220V
AC 50 Hz/60 Hz, 240 V
AC 50 Hz/60 Hz,
| 110 V/127 V/220 V/240 V
Dimensions (WxHxD) 430 X 86 X 240 mm
(16-15/16” X 3-3/8” X 9-7/16”)
Weight 4.8kg
: (10.6 Ib.)
Note:
e Total harmonic distortion is measured by the
digital spectrum analyzer (H.P. 3045 system).
