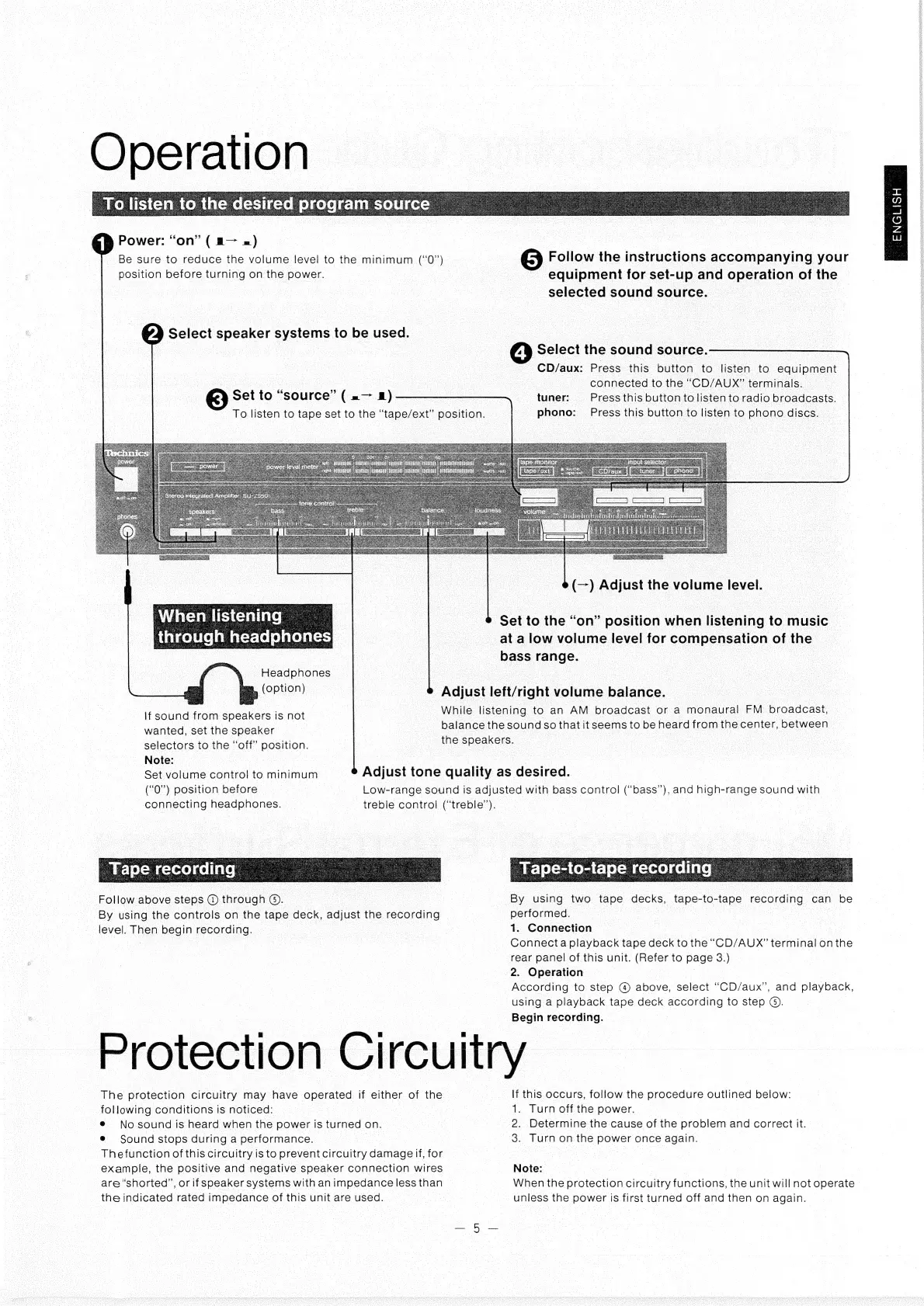

Technics SU-Z550 User Manual

Operation
Gp Power: “
‘(a~ =)
position before turning on the power.
yy Select speaker systems to be used.
Set to “source” ( =— &)
To listen to tape set to the “tape/ext”
Be sure to reduce the volume level to the minimum (“0”
)
position.
equipment for set-up and operation of the
selected sound source.
. Select the sound source.
CD/aux: Press this button to listen to. equipment
connected to the “CD/AUX” terminals. _
Press this button to listen to radio broadcasts.
Press this button to listen to phono discs.
tuner:
phono:
(—) Adjust the volume level.
Follow the instructions accompanying your
Set to the “on” position when listening to music
at a low volume level for compensation of the
bass range.
Headphones
, (option)
\f sound from speakers ts not
wanted, set the speaker
selectors to the “off” position.
Note:
Set volume control to minimum
(“0”) position before
connecting headphones.
Follow above steps @ through ©.
By using the controls on the tape deck, adjust the recording
level. Then begin recording.
Adjust left/right volume balance.
While listening to an AM broadcast or a monaural FM broadcast,
balance the sound so that it seems to be heard from the center, between
the speakers.
(‘treble’).
Protection Circuit
The protection circuitry may have operated if either of the
following conditions is noticed:
e No sound is heard when the power is turned on.
® Sound stops during a performance.
The function of this circuitry is to prevent circuitry damage if, for
example, the positive and negative speaker connection wires
are “shorted”, orifspeaker systems with an impedance less than
the indicated rated impedance of this unit are used.
Adjust tone quality as desired.
Low-range sound is adjusted with bass control (“bass”), and high-range sound with
treble control
By using two tape decks, tape-to-tape recording can be
performed.
1. Connection |
Connect a playback tape deck to the “CD/AUX” terminal on the
rear panel of this unit. (Refer to page 3.)
2. Operation
According to step @ above, select “CD/aux”, and playback,
using a playback tape deck according to step ©.
Begin recording.
If this occurs, follow the procedure outlined below:
1. Turn off the power.
2. Determine the cause of the problem and correct it.
3. Turn on the power once again.
Note:
When the protection circuitry functions, the unit will not operate
unless the power is first turned off and then on again.
