Technics SU-Z980 User Manual

SU-Z980

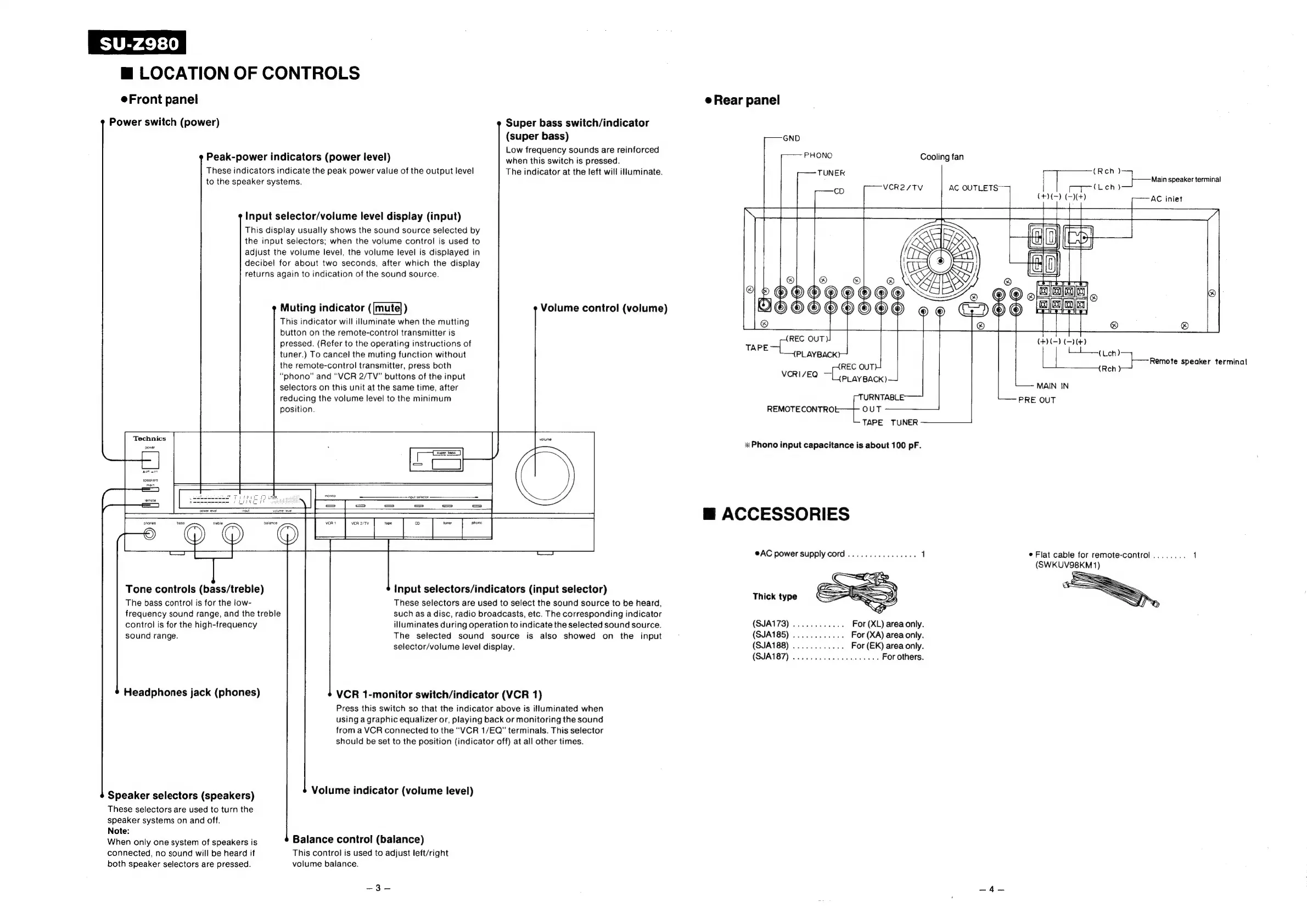

m LOCATION OF CONTROLS
eFront panel
Power switch (power)
Peak-power indicators (power level)
These indicators indicate the peak power value of the output level
to the speaker systems.
Input selector/volume level display (input)
This display usually shows the sound source selected by
the input selectors; when the volume control is used to
adjust the volume level, the volume level is displayed in
decibel for about two seconds, after which the display
returns again to indication of the sound source.
Muting indicator (|mute] )
This indicator will illuminate when the mutting
button on the remote-control transmitter is
pressed. (Refer to the operating instructions of
tuner.) To cancel the muting function without
the remote-control transmitter, press both
“phono” and “VCR 2/TV” buttons of the input
selectors on this unit at the same time, after
reducing the volume level to the minimum
position.
Technics
power
AO on
speakers
main, a
ee Th me
ee a
ee
ee = = —
=> =
Super bass switch/indicator
(super bass)
Low frequency sounds are reinforced
when this switch is pressed.
The indicator at the left will illuminate.
Volume control (volume)
©
[ae ea Lod
Tone controls (bass/treble)
The bass control is for the low-
frequency sound range, and the treble
control is for the high-frequency
sound range.
Headphones jack (phones)
Speaker selectors (speakers)
These selectors are used to turn the
speaker systems on and off.
Note:
When only one system of speakers is
connected, no sound will be heard if
both speaker selectors are pressed.
input selectors/indicators (input selector)
These selectors are used to select the sound source to be heard,
such as a disc, radio broadcasts, etc. The corresponding indicator
illuminates during operation to indicate the selected sound source.
The selected sound source is also showed on the input
selector/volume level display.
VCR 1-monitor switch/indicator (VCR 1)
Press this switch so that the indicator above is illuminated when
using a graphic equalizer or, playing back or monitoring the sound
from a VCR connected to the “VCR 1/EQ” terminals. This selector
should be set to the position (indicator off) at all other times.
Volume indicator (volume level)
Balance control (balance)
This control is used to adjust left/right
volume balance.
e Rear panel
eee
p= PHONO
Cooling fan
TUNER (Rech )
Ne | —;amain speaker terminal
VCR2/TV rtf heh)
(+)(~) (-)(+)
(+)(-) (-) (4)
Li
PLAYBAt (Leh)
BACK __ remote Speaker terminal
{Reh )
VCRI/EQ
MAIN IN
PRE OUT
REMOTECONTRO
TAPE TUNER
* Phono input capacitance is about 100 pF.
@AC power supply cord ................ 1 ¢ Flat cable for remote-control........ 1
(SWKUV98KM 1)
Thick type
(SJA173) .........0.. For (XL) area only.
(SJA185) ............ For (XA) area only.
(SJA188) ............ For (EK) area only.
(SUA187) iis cach ancaietacwehne For others.
