Technics SX-KN6500 User Manual

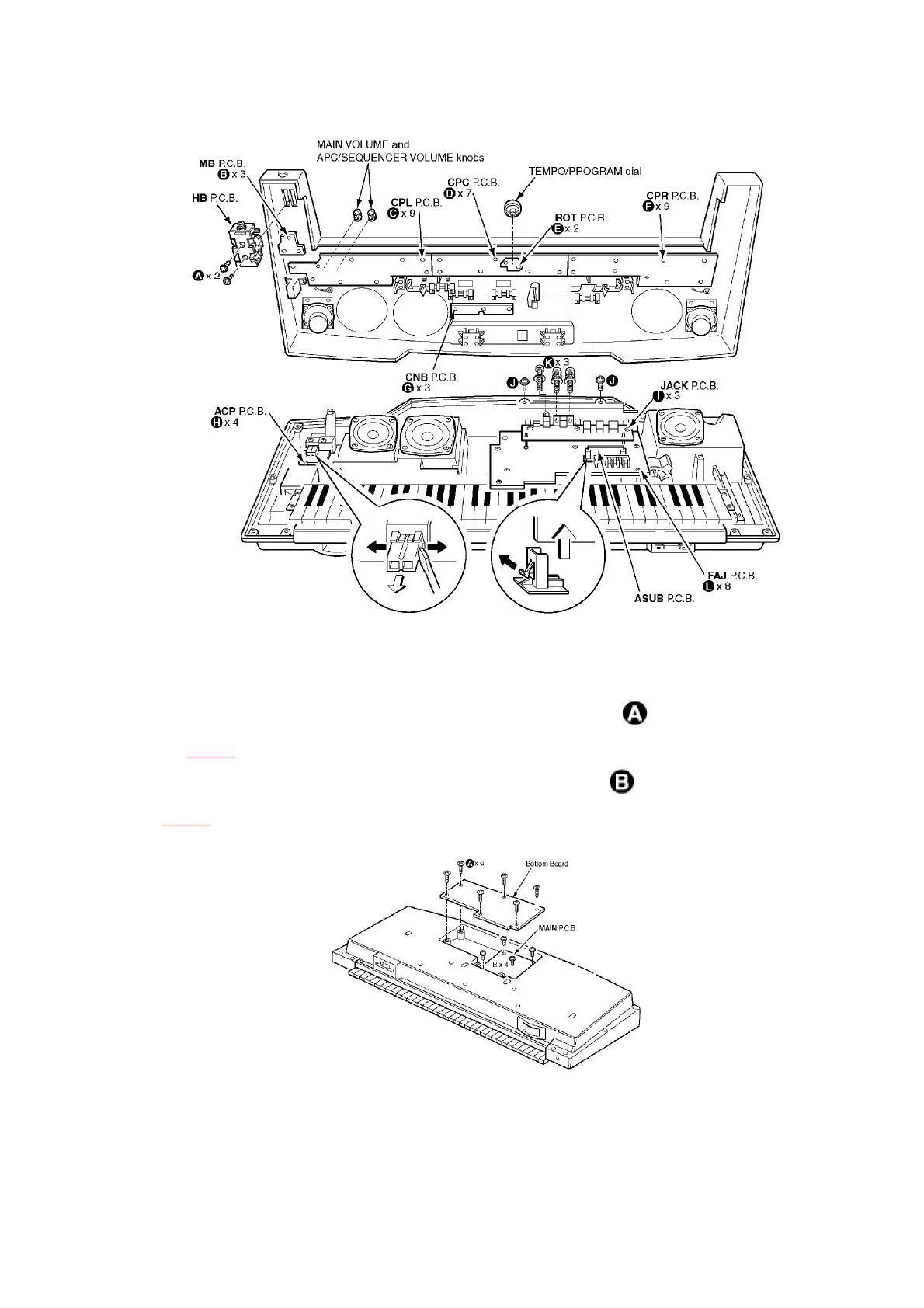

11.3. Removing the MAIN printed circuit board
MAIN P.C.B.
1. Remove the bottom board mounting screws ( 6 pcs.) as shown
in Fig.5 .
2. Remove the MAIN P.C.B. mounting screws ( 4 pcs.) as shown in
Fig.5 .
Fig.5
11.4. Removing the DISPLAY
12

Technics SX-KN6500 Specifications

General

Brand	Technics
Model	SX-KN6500
Category	Keyboard
Language	English
