Technics SX-KN6500 - Page 16

LCDR P.C.B.
- Remove the LCDR P.C.B. mounting screws ( 3 pcs.) as shown in

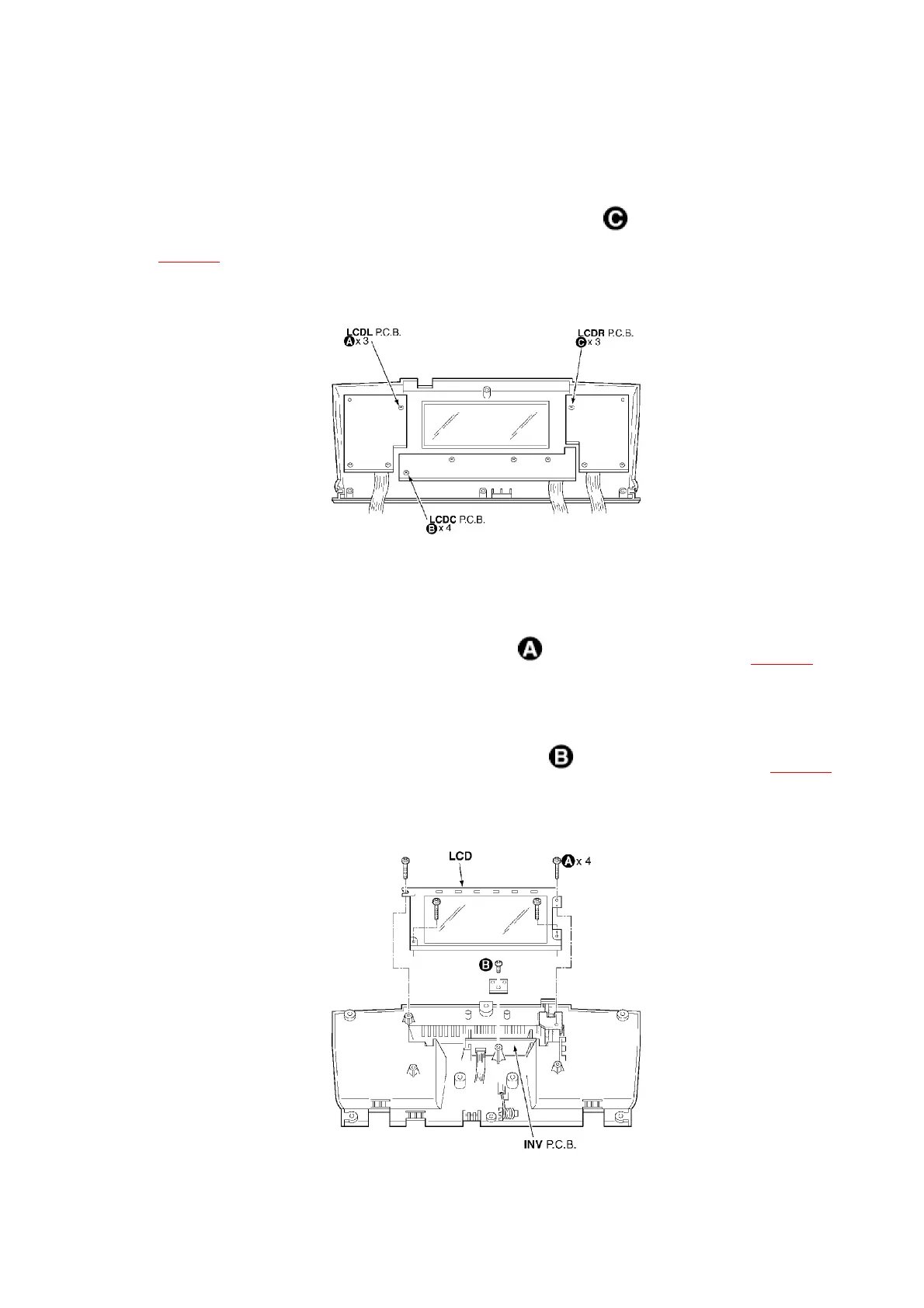

Fig.13 .
Fig.13
11.7. Removing the LCD and the INV P.C.B.
- Follow the item 11.5..
LCD
- Remove the LCD mounting screws ( 4 pcs.) as shown in Fig.14 .
INV P.C.B.
1. Remove the bracket mounting screw ( 1 pc.) as shown in Fig.14 .
2. Pull off the INV P.C.B..
Fig.14
