Technics SX-KN6500

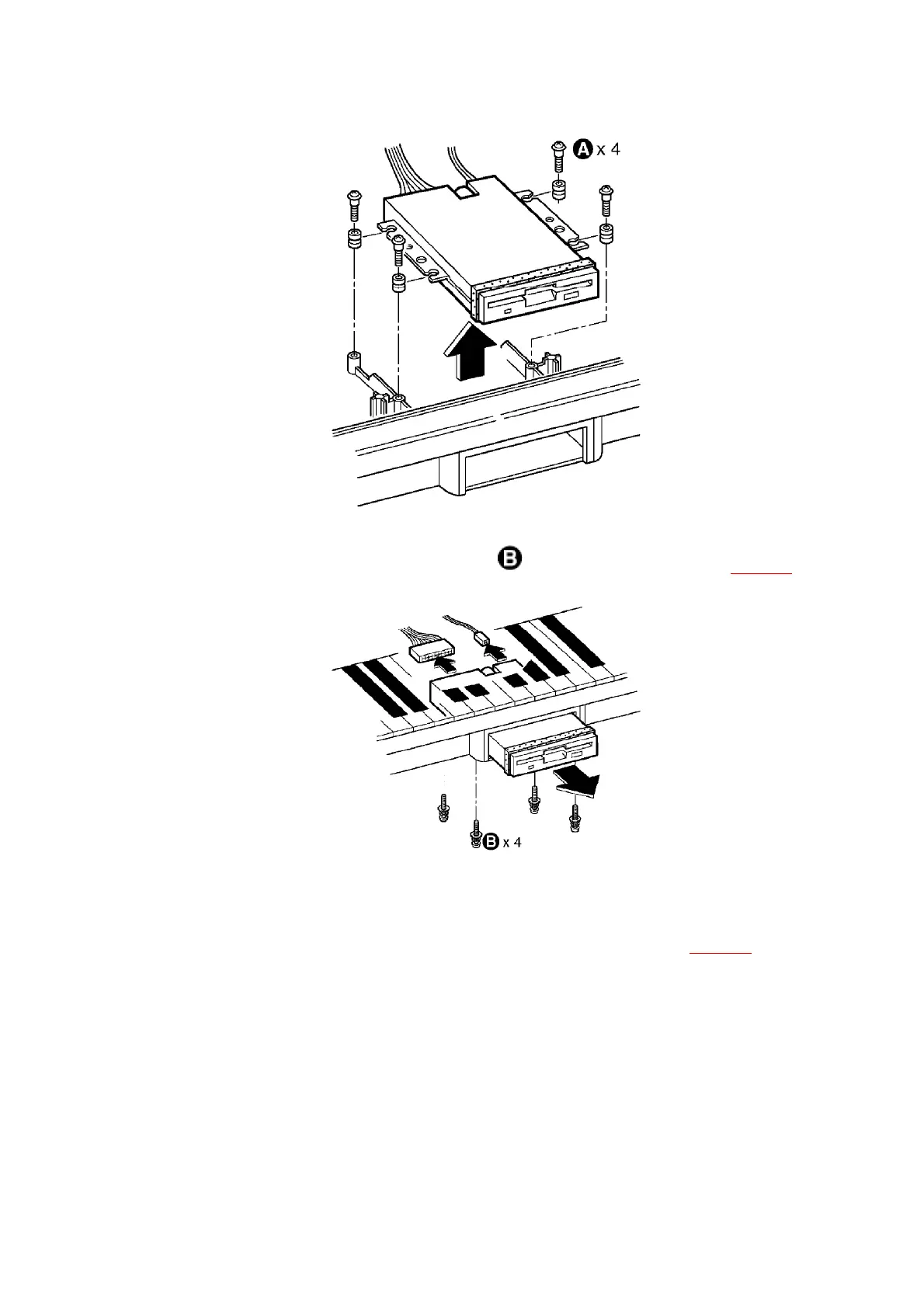

- Otherwise, the Disk Drive unit can be removed by removing the
Disk Drive unit mountng screws ( 4 pcs.) as shown in Fig.18 .
Fig.18
11.10. Removing the keys
1. Follow the item 11.8..
2. Press downward on the rear of the key as shown in Fig.19 .
3. While pressing downward on the rear of the key, push the key
forward and release it from the chassis.
4. Lift the key and remove it from the chassis.
Fig.19
18
