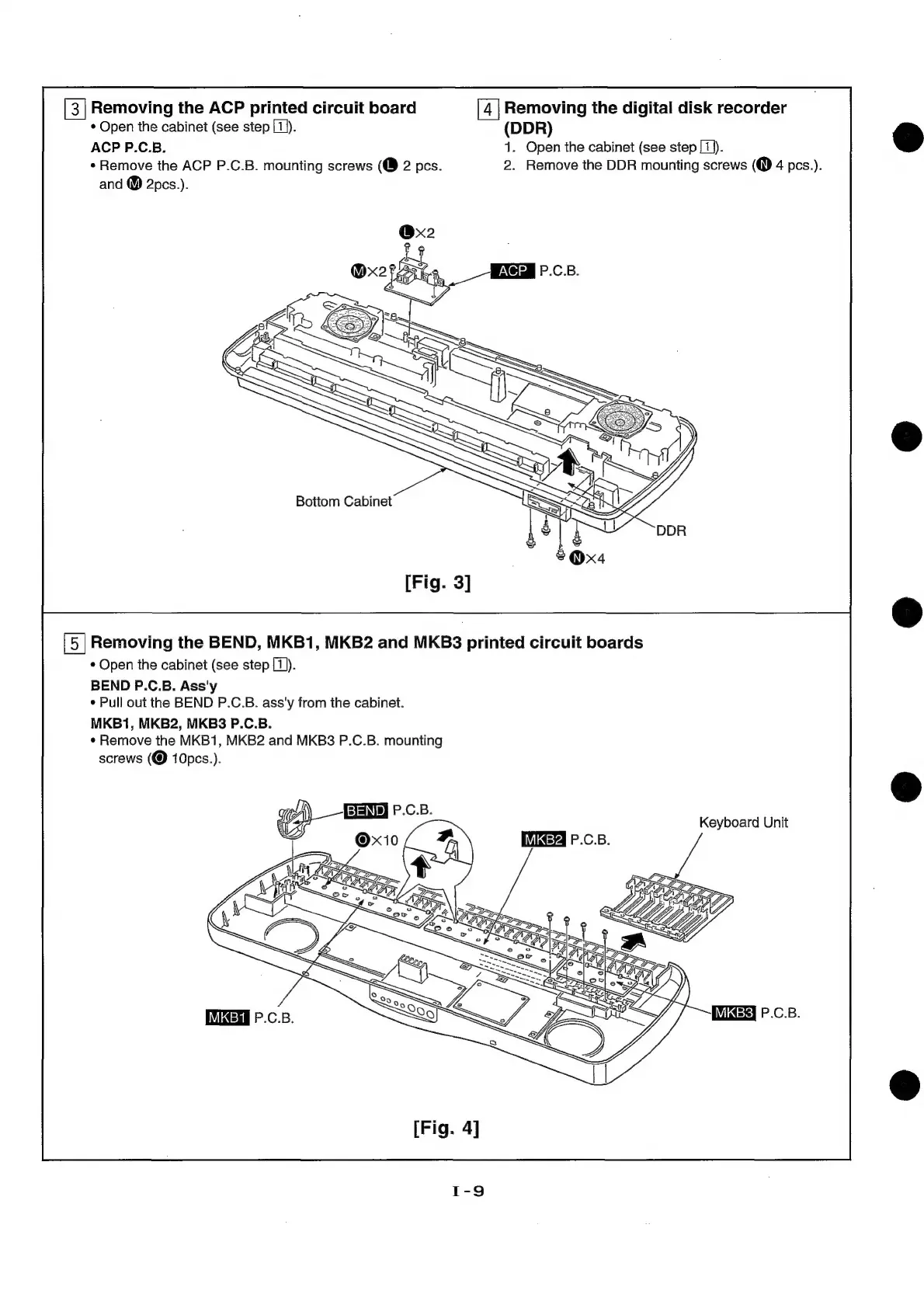

Removing the ACP printed circuit board Removing the digital disk recorder
* Open the cabinet (see step [1)). (DDR)
ACP P.C.B. 1. Open the cabinet (see step [1)).
* Remove the ACP P.C.B. mounting screws (® 2 pcs. 2. Remove the DDR mounting screws (@ 4 pcs.).
and @ 2pcs.).
Bottom Cabinet
Removing the BEND, MKB1, MKB2 and MKB3 printed circuit boards
* Open the cabinet (see step [1)).
BEND P.C.B. Ass'y
* Pull out the BEND P.C.B. ass'y from the cabinet.
MKB1, MKB2, MKB3 P.C.B.
¢ Remove the MKB1, MKB2 and MKB3 P.C.B. mounting
screws (© 10pcs.).
Keyboard Unit
