Technics SX-PC25 Service Manual

4. After servicing, be sure to restore the lead dress, insulation
barriers, insulation papers, shields, etc.
5. Before returning the serviced equipment to the customer, be sure
to make the following insulation resistance test to prevent the
customer from being exposed to a shock hazard.
2.2. Insulation Resistance Test
1. Unplug the power cord and short the prongs of the plug with a
jumper wire.
2. Turn on the power switch.
3. Measure the resistance value with an ohmmeter between the
jumpered AC plug and each exposed metal cabinet part, such as
screw heads, connectors, control shafts, handle brackets, etc.
Measurements should range from 4 MOhm to infinity for
allexposed parts.

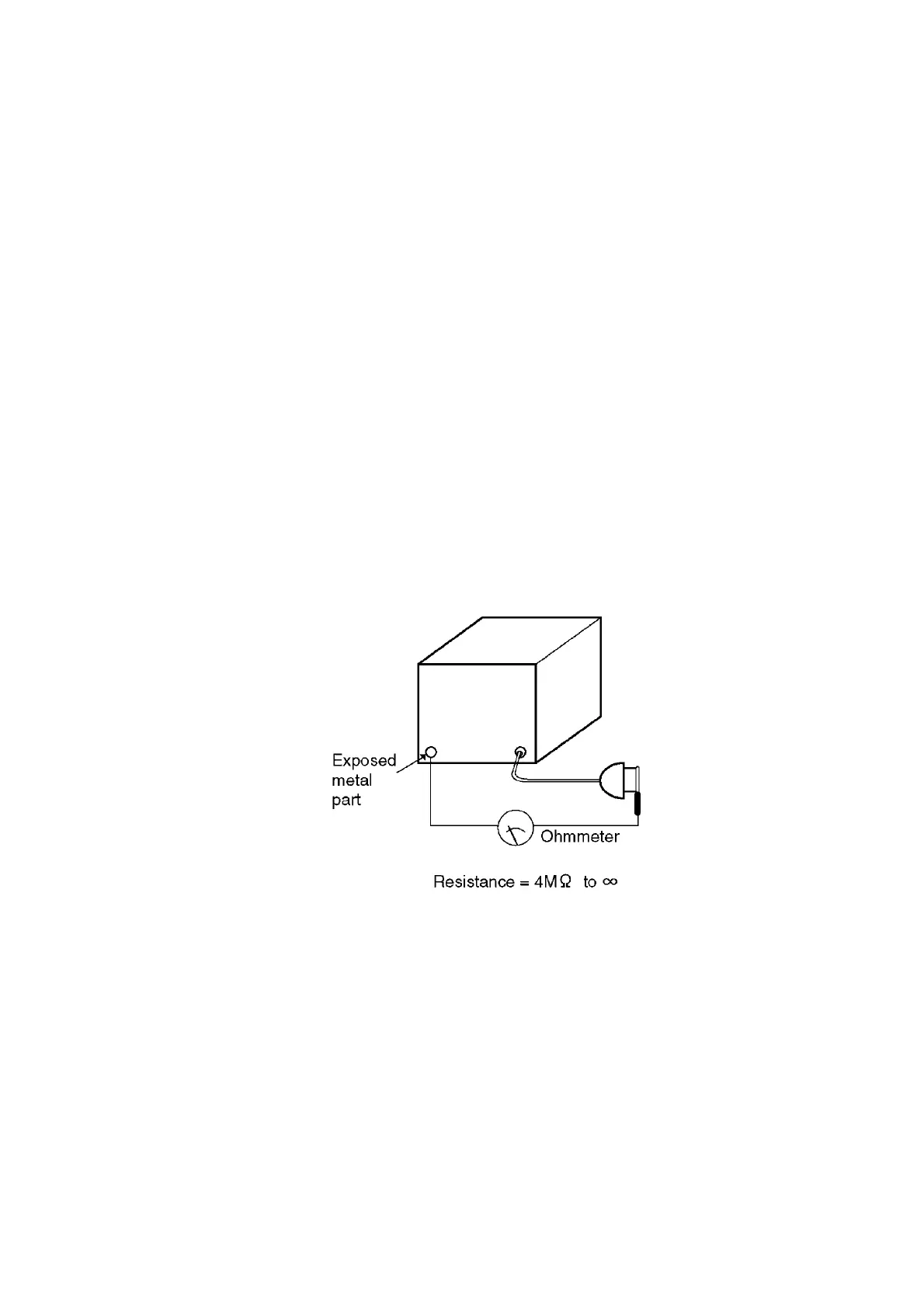

Figure-1
3. How to Assemble the Piano
4. Operation Manual
5. Keyboard Ranges and MIDI Note Number
4

Technics SX-PC25 Specifications

Power

power supply	50 W (USA and Mexico), 70 W (Canada, Europe, Australia, and New Zealand)
voltage	AC120/220/230-240 V 50/60 Hz

Ports & interfaces

phones	x 2
MIDI	IN, OUT
AUX IN	R, L

Weight and Dimensions

dimensions	138.7 cm x 98.3 cm x 43.5 cm, 54-19/32" x 38-11/16" x 17-1/8"
net weight	39 kg
