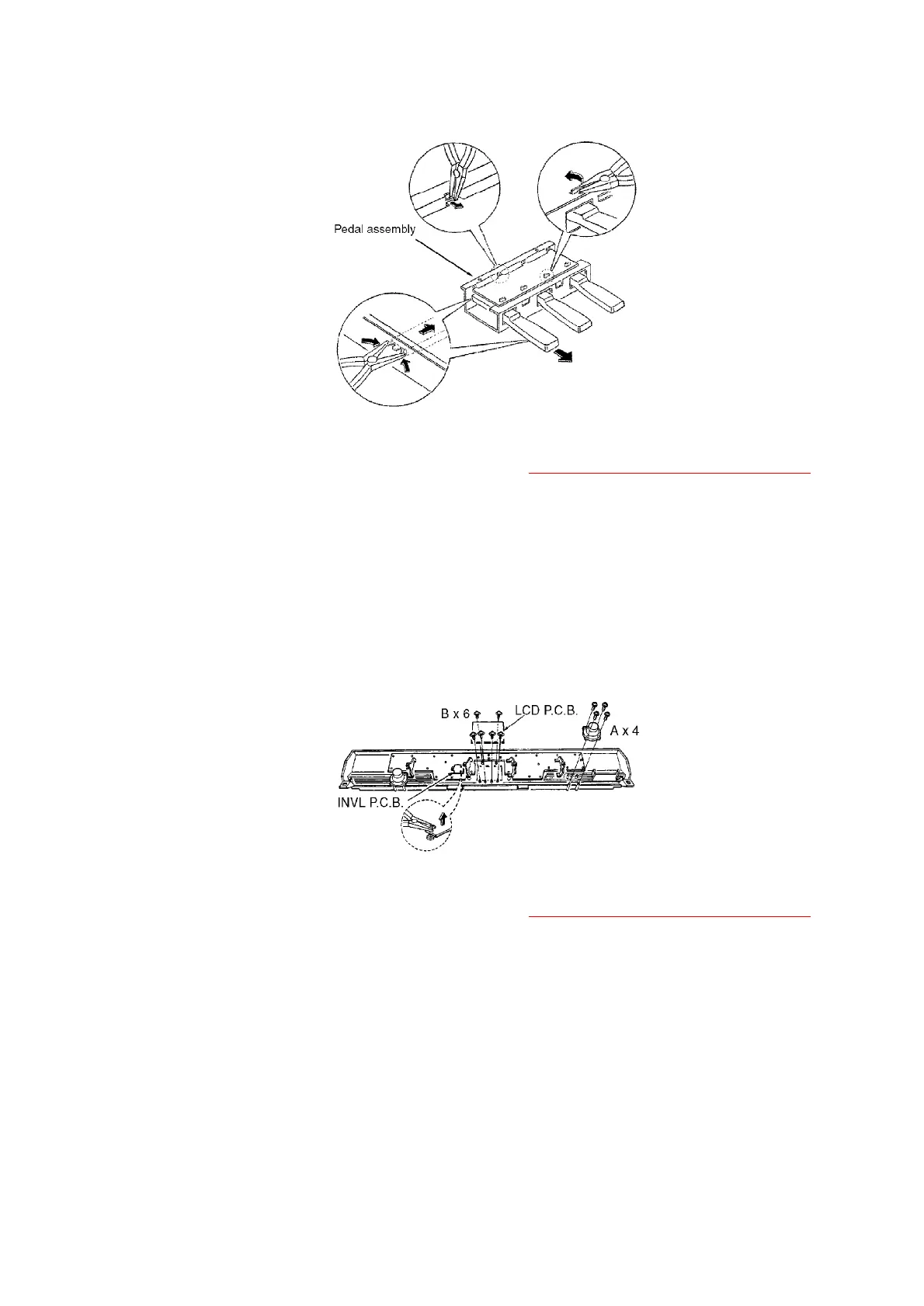

7.7. Removing the 6,5cm speaker, the LCD and INVL P.C.B.
- Remove the control panel (see step “Removing the control panel ”).
6,5cm speaker
- Remove the 6,5cmm speaker mounting screws (A x 4 pcs.).
LCD P.C.B.
- Remove the LCD P.C.B. mounting screws (B x 6 pcs.).
INVL P.C.B.
1. Release the claws of the 3 P.C.B. holders.
2. Remove the INVL P.C.B..
Figure-15
7.8. Removing the CPL, CPR P.C.B.
- Remove the control panel (see step “Removing the control panel ”).
CPR P.C.B.
1. Remove the CP mount bracket (A x 2 pcs., B x 2 pcs.).
2. Remove the CPR P.C.B. mounting screws (C x 15 pcs.).
CPL P.C.B.
1. Remove the CP mount bracket (A x 2 pcs., B x 2 pcs.).
2. Pull the MAIN VOLUME knob.
3. Remove the CPL P.C.B. mounting screws (D x 17 pcs.).
12
