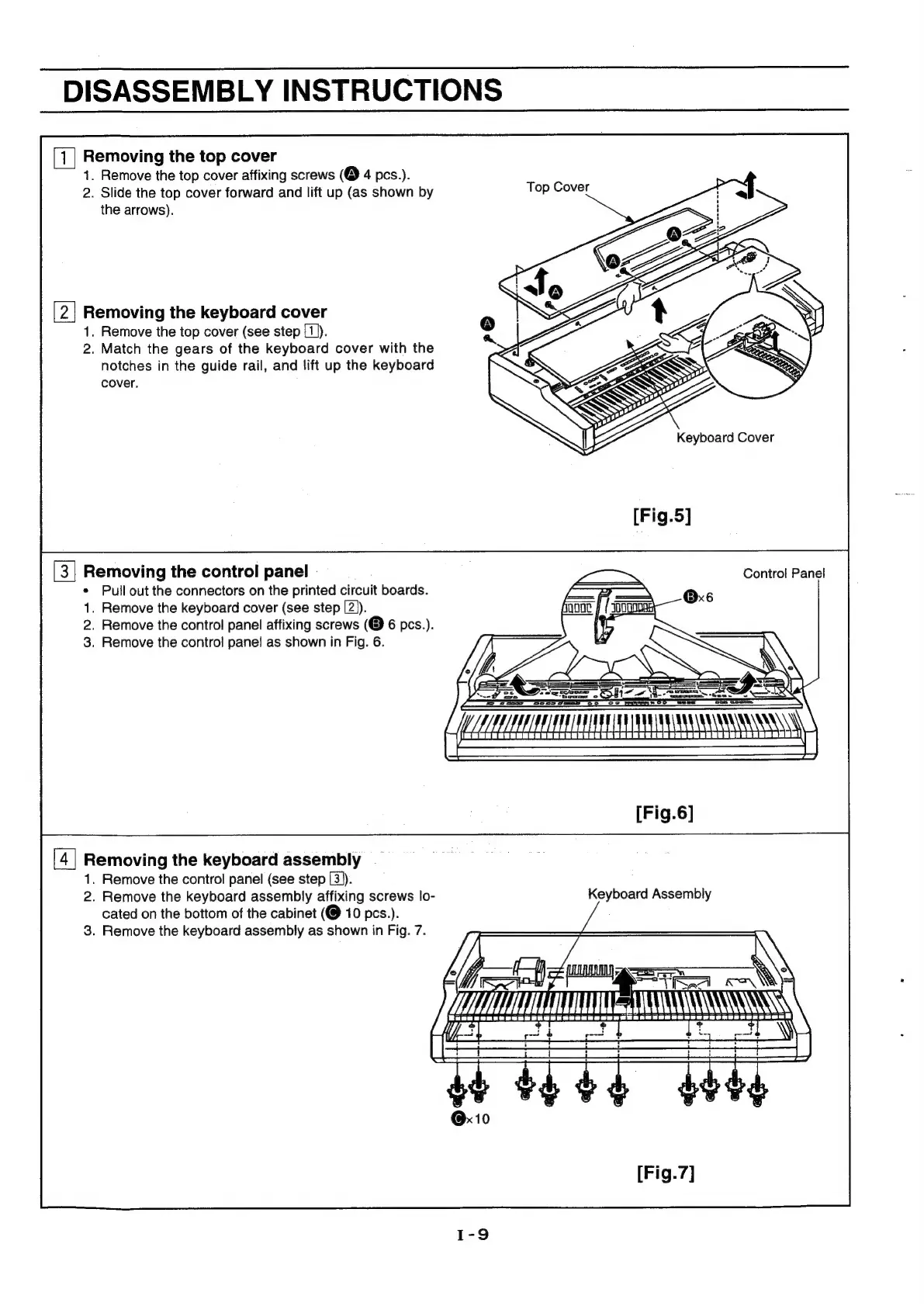

DISASSEMBLY INSTRUCTIONS
Removing the top cover
1. Remove the top cover affixing screws (@ 4 pcs.).
2. Slide the top cover forward and lift up (as shown by Top Cover
the arrows).
Removing the keyboard cover
1. Remove the top cover (see step |1)).
2. Match the gears of the keyboard cover with the
notches in the guide rail, and lift up the keyboard
cover.
Removing the control panel
Pull out the connectors on the printed circuit boards.
1. Remove the keyboard cover (see step [2)).
2. Remove the control panel affixing screws (@ 6 pcs.).
3. Remove the control pane! as shown in Fig. 6.
Removing the keyboard assembly
1. Remove the control panel (see step [3)).
2. Remove the keyboard assembly affixing screws lo-
cated on the bottom of the cabinet (@ 10 pcs.).
3. Remove the keyboard assembly as shown in Fig. 7.
