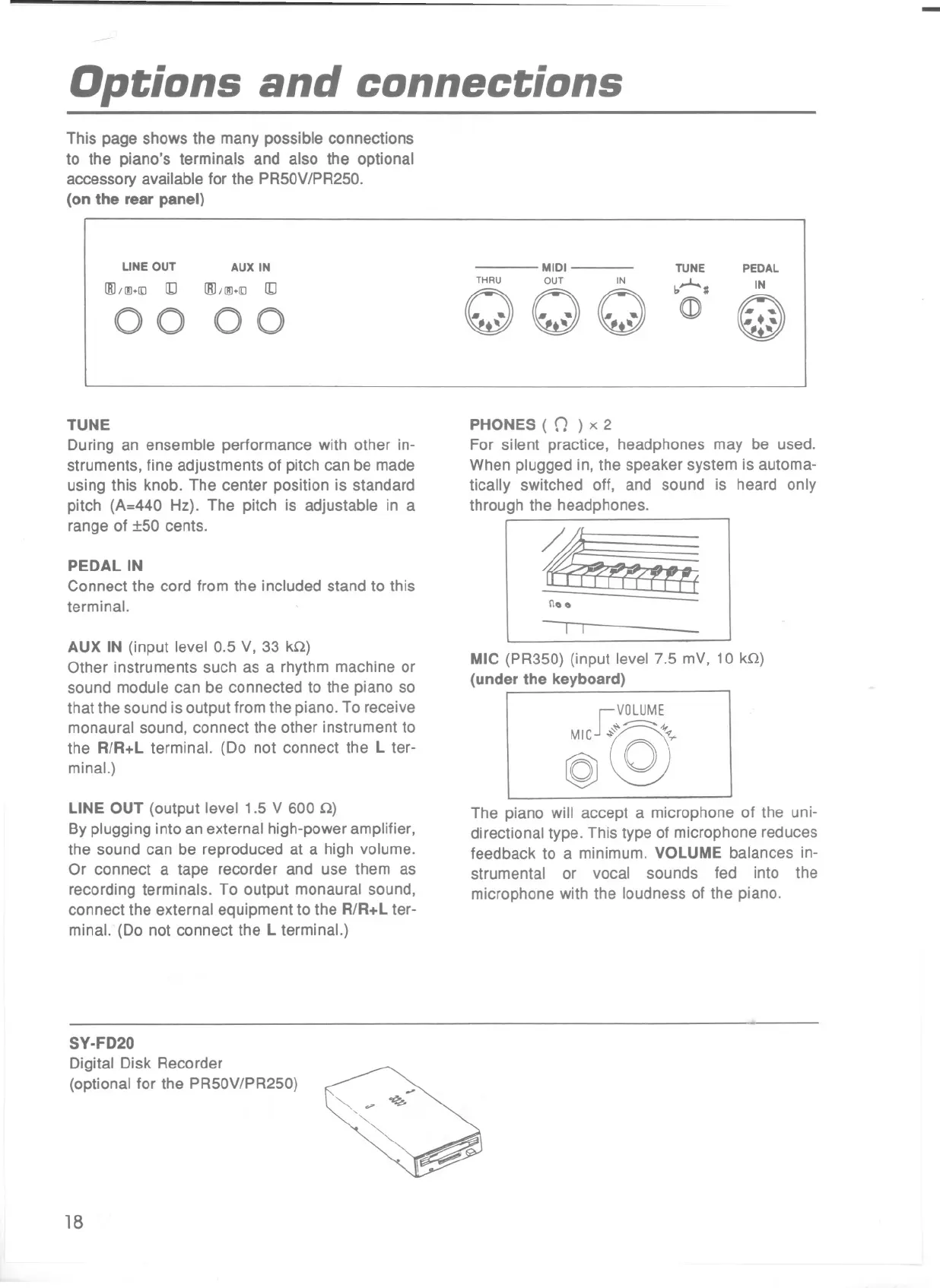

Options and connections
This page shows the many possible connections
to the piano's terminals and also the optional
accessory available for the PR50v/PR250.
(on the rear panel)
LINEOUT
lID/ 1!J+rb) l1:J
AUXIN
lID/ I!J+!IJ l1:J
00 00
MIDI
THRU OUT IN
000
TUNE
I>~#
~
PEDAL
IN
~
TUNE
During an ensemble performance with other in-
struments, fine adjustments of pitch can be made
using this knob. The center position is standard
pitch (A=440 Hz). The pitch is adjustable in a
range of :f:50cents.
PEDAL IN
Connect the cord from the included stand to this
terminal.
AUX IN (input level 0.5 V, 33 kQ)
Other instruments such as a rhythm machine or
sound module can be connected to the piano so
that the sound is output from the piano. To receive
monaural sound, connect the other instrument to
the R/R+L terminal. (Do not connect the L ter-
minal.)
LINE OUT (output level 1.5 V 600 Q)
By plugging into an external high-power amplifier,
the sound can be reproduced at a high volume.
Or connect a tape recorder and use them as
recording terminals. To output monaural sound,
connect the external equipment to the R/R+L ter-
minal. (Do not connect the L terminal.)
PHONES ( 0 ) x 2
For silent practice, headphones may be used.
When plugged in, the speaker system is automa-
tically switched off, and sound is heard only
through the headphones.
~r~~
I':::
n..
n
MIC (PR350) (input level 7.5 mV, 10 kQ)
(under the keyboard)
I
iVOLUME
~@
The piano will accept a microphone of the uni-
directional type. This type of microphone reduces
feedback to a minimum. VOLUME balances in-
strumental or vocal sounds fed into the
microphone with the loudness of the piano.
SY-FD20
Digital Disk Recorder
(optional for the PR50V/PR250)
18
