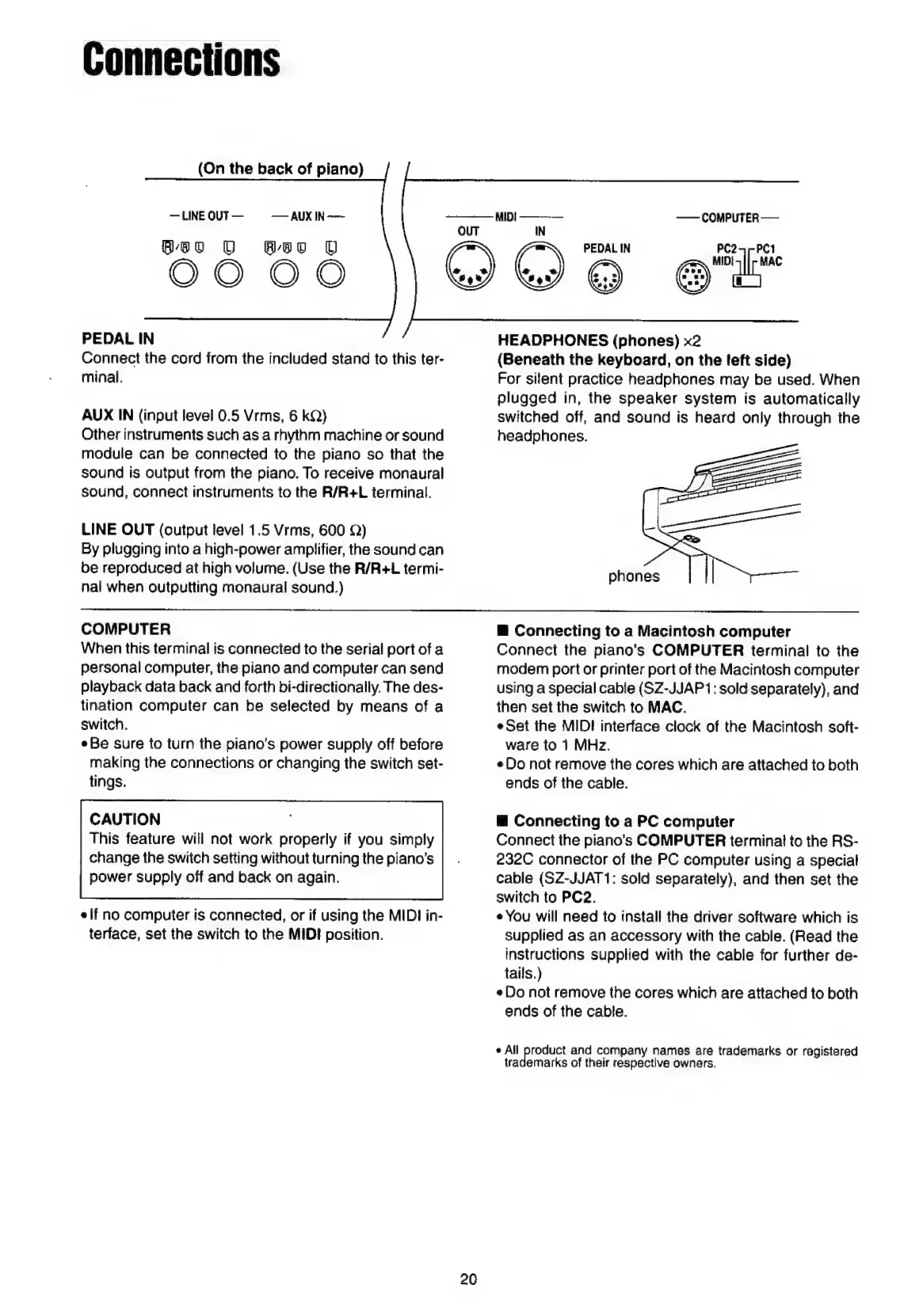

Connections
(On
the
back
of
piano)
—
LINE
OUT
—
Бао
О
Beg
Q
OO
OO
—
AUX
IN
—-
PEDAL
IN
Connect
the
cord
from
the
included
stand
to
this
ter-
minal.
AUX
IN
(input
level
0.5
Vrms,
6
kQ)
Other
instruments
such
as
a
rhythm
machine
or
sound
module
can
be
connected
to
the
piano
so
that
the
sound
is
output
from
the
piano.
To
receive
monaural
sound,
connect
instruments
to
the
R/R+L
terminal.
LINE
OUT
(output
level
1.5
Vrms,
600
Q)
By
plugging
into
a
high-power
amplifier,
the
sound
can
be
reproduced
at
high
volume.
(Use
the
R/R+L
termi-
nal
when
outputting
monaural
sound.)
MID!
ÓQ
OOS
PEDAL
IN
——
COMPUTER
—
РС2-
-РС1
ш"
HEADPHONES
(phones)
х2
(Beneath
the
keyboard,
on
the
left
side)
For
silent
practice
headphones
may
be
used.
When
plugged
in,
the
speaker
system
is
automatically
switched
off,
and
sound
is
heard
only
through
the
headphones.
r=
phones
COMPUTER
When
this
terminal
is
connected
to
the
serial
port
of
a
personal
computer,
the
piano
and
computer
can
send
playback
data
back
and
forth
bi-directionally.
The
des-
tination
computer
can
be
selected
by
means
of
a
switch.
•
Ве
sure
to
turn
the
piano's
power
supply
off
before
making
the
connections
or
changing
the
switch
set-
tings.
CAUTION
This
feature
will
not
work
properly
if
you
simply
change
the
switch
setting
without
turning
the
piano's
power
supply
off
and
back
on
again.
«|f
no
computer
is
connected,
or
if
using
the
MIDI
in-
terface,
set
the
switch
to
the
MIDI
position.
20
M
Connecting
to
a
Macintosh
computer
Connect
the
piano's
COMPUTER
terminal
to
the
modem
port
or
printer
port
of
the
Macintosh
computer
using
a
special
cable
(SZ-JJAP1:
sold
separately),
and
then
set
the
switch
to
MAC.
eSet
the
MIDI
interface
clock
of
the
Macintosh
soft-
ware
to
1
MHz.
e
Do
not
remove
the
cores
which
are
attached
to
both
ends
of
the
cable.
E
Connecting
to
a
PC
computer
Connect
the
piano's
COMPUTER
terminat
to
the
RS-
232C
connector
of
the
PC
computer
using
a
special
cable
(SZ-JJAT1:
sold
separately),
and
then
set
the
switch
to
PC2.
e
You
will
need
to
install
the
driver
software
which
is
supplied
as an
accessory
with
the
cable.
(Read
the
instructions
supplied
with
the
cable
for
further
de-
tails.)
e
Do
not
remove
the
cores
which
are
attached
to
both
ends
of
the
cable.
©
All
Шеш
and
company
names
are
trademarks
or
registered
trademarks
of
their
respective
owners.
