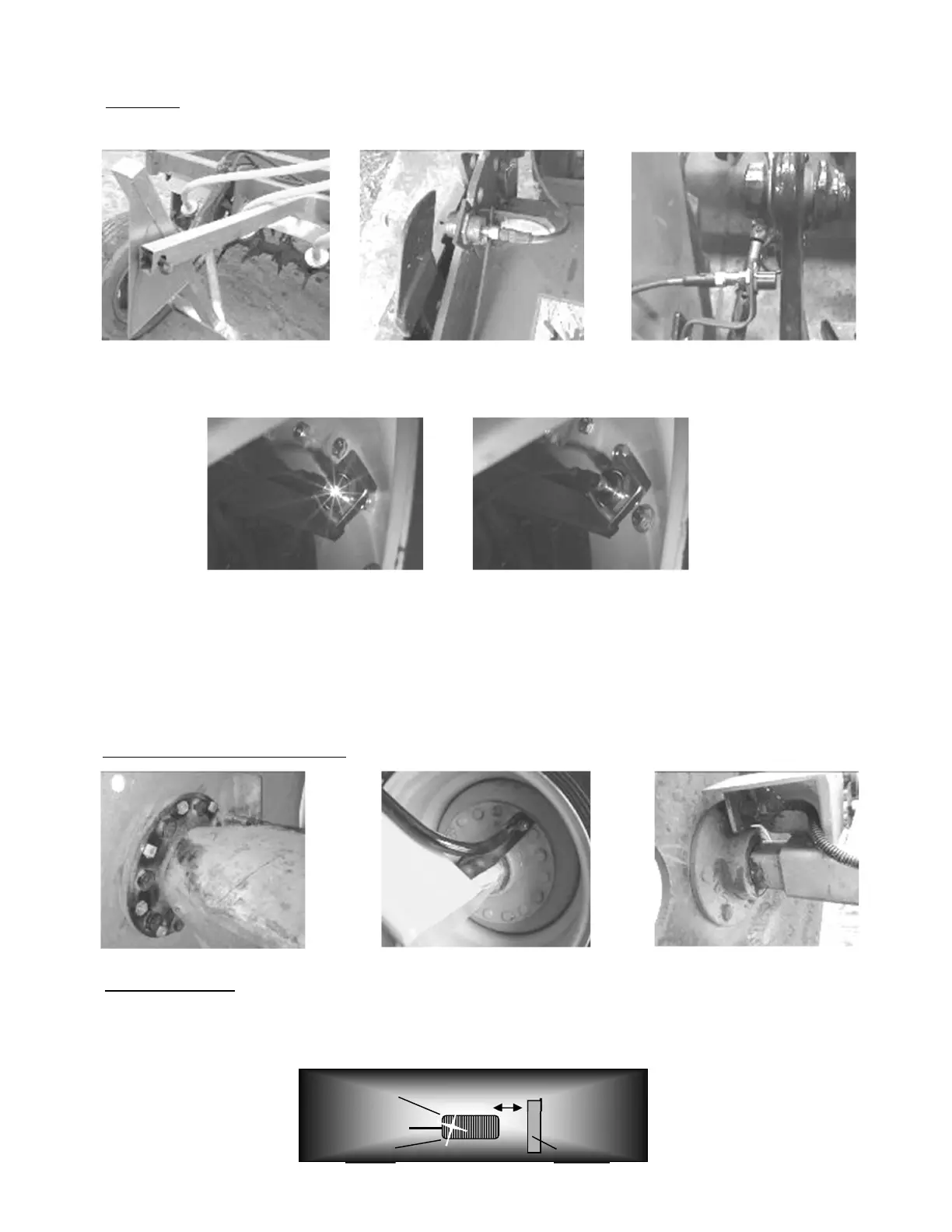

Mounting possibilities speed sensor:
Check the impulses/signals before first use.
Attention! The sensor must count every signal (light shines) (Pict 1) and switch off between the signals
(light off) (Pict 2)
1. If the light doesn´t shine the distance between sensor and metal can be to big (max. 4mm).
2. If the light doesn´t turn off, the distance between the impulses is too small. Mount the impulses in a bigger
radius.
The on/off sensor stops the seed roll if there is no metal on opposite. If there is metal opposite the
sensor the seed roll turns. Sensor diameter: 30mm; max. reacting distance: 8mm. Check the sensor as
follows: Is metal opposite the sensor the light on the sensor must shine. Otherwise the light doesn´t
shine.
On/Off-sensor
metal
max. 8 mm
light
Pict. 1: Light shines! Pict. 2: Light off!
