Technik-Plus FRONT-TURBO - Seeder+; Twin Unit

19
1
5
6
7
4
8
2
3
9
10
13
15
13
14
20
21
16
17
18
19
16
11
12
AN/AB Sensor
Geschwindigkeitssensor
Zählradsensor
Anschluss zu
Säwellenmotor
Gebläsesensor
1
5
6
7
4
8
2
3
9
10
13
15
13
14
16
17
18
11
12
20
21
18
19
22
23
AN/AB Sensor
Geschwindigkeitssensor
Zählradsensor
Anschluss zu
Säwellenmotor
Anschluss zu
Doppelturbine

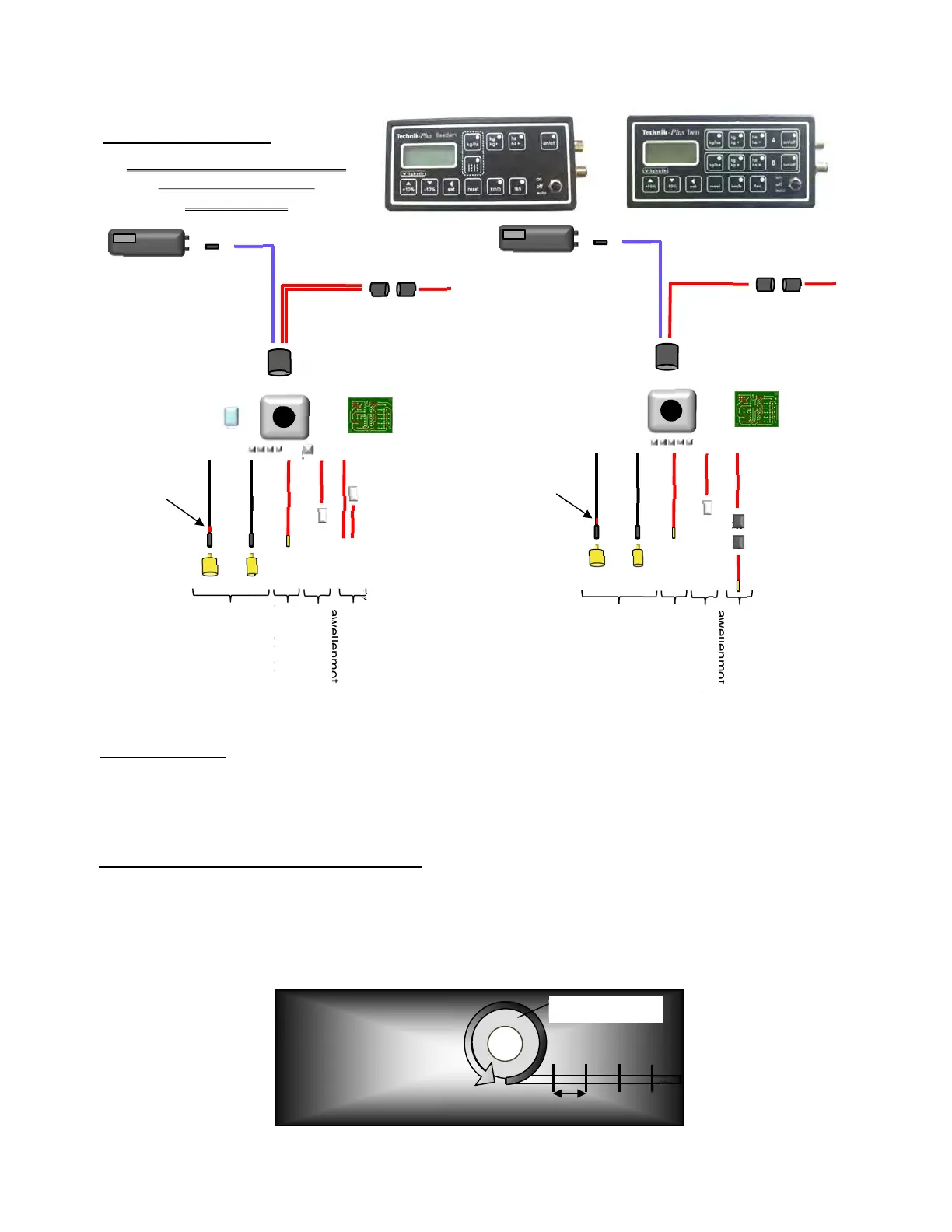

SEEDER+ / TWIN Unit
The speed sensor
reacts to metall
.
For measuring the speed the sensor needs impulses (f.e. screw heads)
That screw heads can be mounted on a roller or the inner side of the tractor rim of wheel. The calculation
value is shown in mm/impulse. The driven way from impulse to impulse must be between 1 and 500.
Tractor wheel
Driven way:
Driven way from impulse to impulse
Calculate the needed screw heads as follows:
F.e.: Your wheel/roller with a diameter of 2m. -> Range (Diameter x 3,14 = range) is 6,28m = 6280mm. The
maximum driven distance from impulse to impulse must be below 500. Because of that (6280/500=12,56)
minimum 13 signals are needed. We recommend to use 20 signals. The signals can be mounted in any
radius. The only thing: The sensor must switch off between the signals.
Connection to
battery
Connection
to battery
Sensor cable with
red marking is for
on/off sensor
(linkage sensor)
Sensor cable with
red marking is for
on/off sensor
(linkage sensor)
READ THE SEPERATE OPERATION
INSTRUCITION AS WELL
SEEDER+/TWIN
Connection for Seed roll motor
Connection for
double fan
Seed roll sensor
On/off sensor Speed sensor
Connection for
Seed roll motor
Connection for
double fan Seed roll sensor
On/off sensor Speed sensor
