18

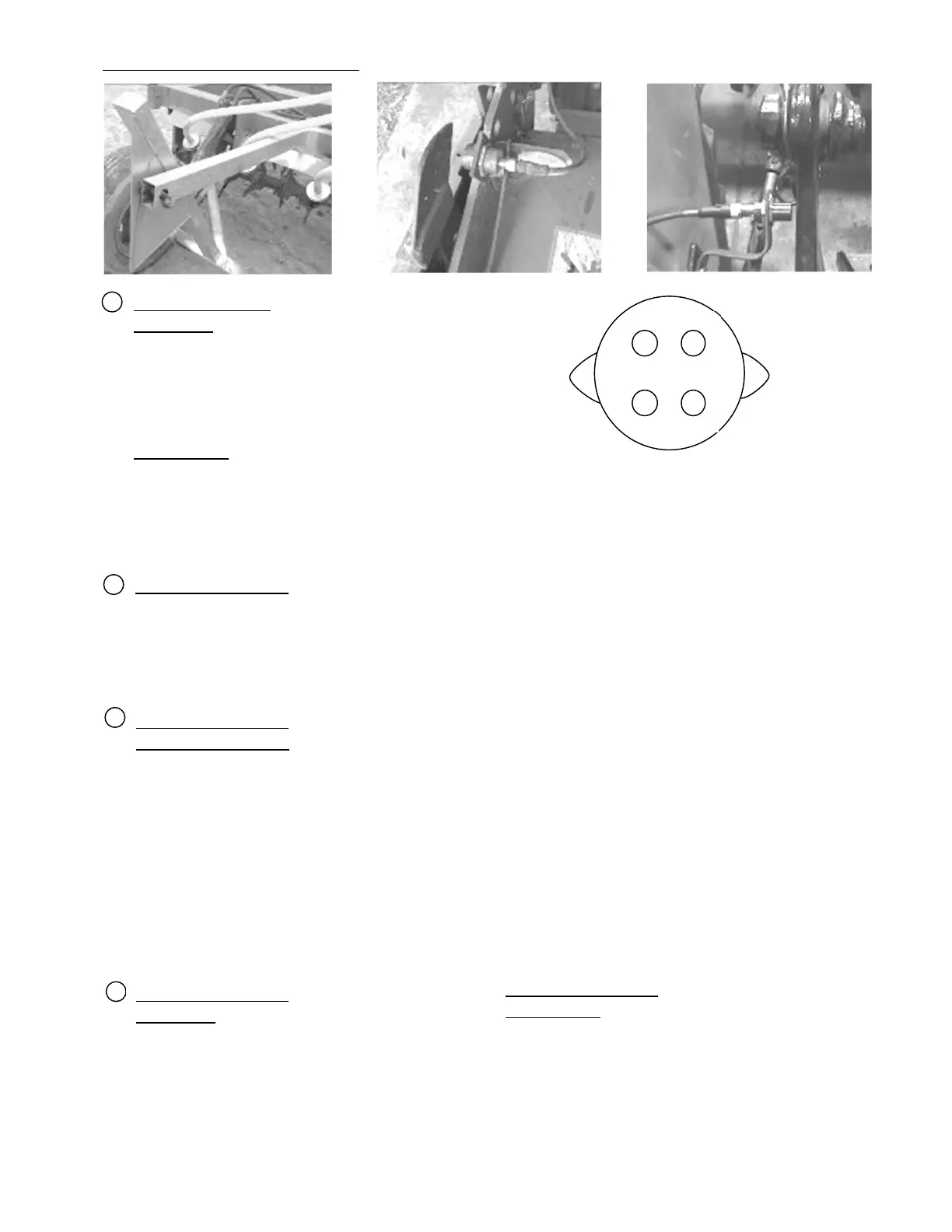

Mounting possibilities On-/Off-sensor
Too short cables can be extended locally or ordered in a new length from us. Check following points when
extending the cables locally:
- Use the correct cross-section!
- Plugs and connections must correspond to the requirements.
- Plugs and connections must be mounted correct (No free wires, good isolation)
- Damages because of plugs and extensions mounted by the customer are NO warranty claim!
8
Configuration plug:
Electric fan
Nr. 54: Blue cable (– from relay)
Nr. 58L: Brown cable (+ from relay)
Nr. 31: Cable No. 1 (– from the unit)
Nr. 58R: Cable No. 2 (+ from the unit)
Hydraulic fan
Nr. 54:
Nr. 58L:
Nr. 31: Cable No. 1 (– from the unit)
Nr. 58R: Cable No. 2 (+ from the unit)
58L
31
54
58R
9
Electric/Hydraulic fan
Cable No. 1 = minus
Cable Nr. 2 = plus
30A fuse for electric fan used in the cable to battery plus
15A fuse for hydraulic fan used in the cable to battery plus
10
Configuration socket:
Electric/Hydraulic fan
Nr. 54 to minus
Nr. 58 L to plus
Nr. 31 to minus
Nr. 58 R to plus
11
Configuration socket:
Electric fan
Nr. 1 LED
Nr. 2 Seed roll motor +
Nr. 3 Seed roll motor -
Nr. 4 Relay +
Nr. 5 Relay -
Configuration socket:
Hydraulic fan
Nr. 1 LED
Nr. 2 Seed roll motor +
Nr. 3 Seed roll motor -
Nr. 4
Nr. 5
