23

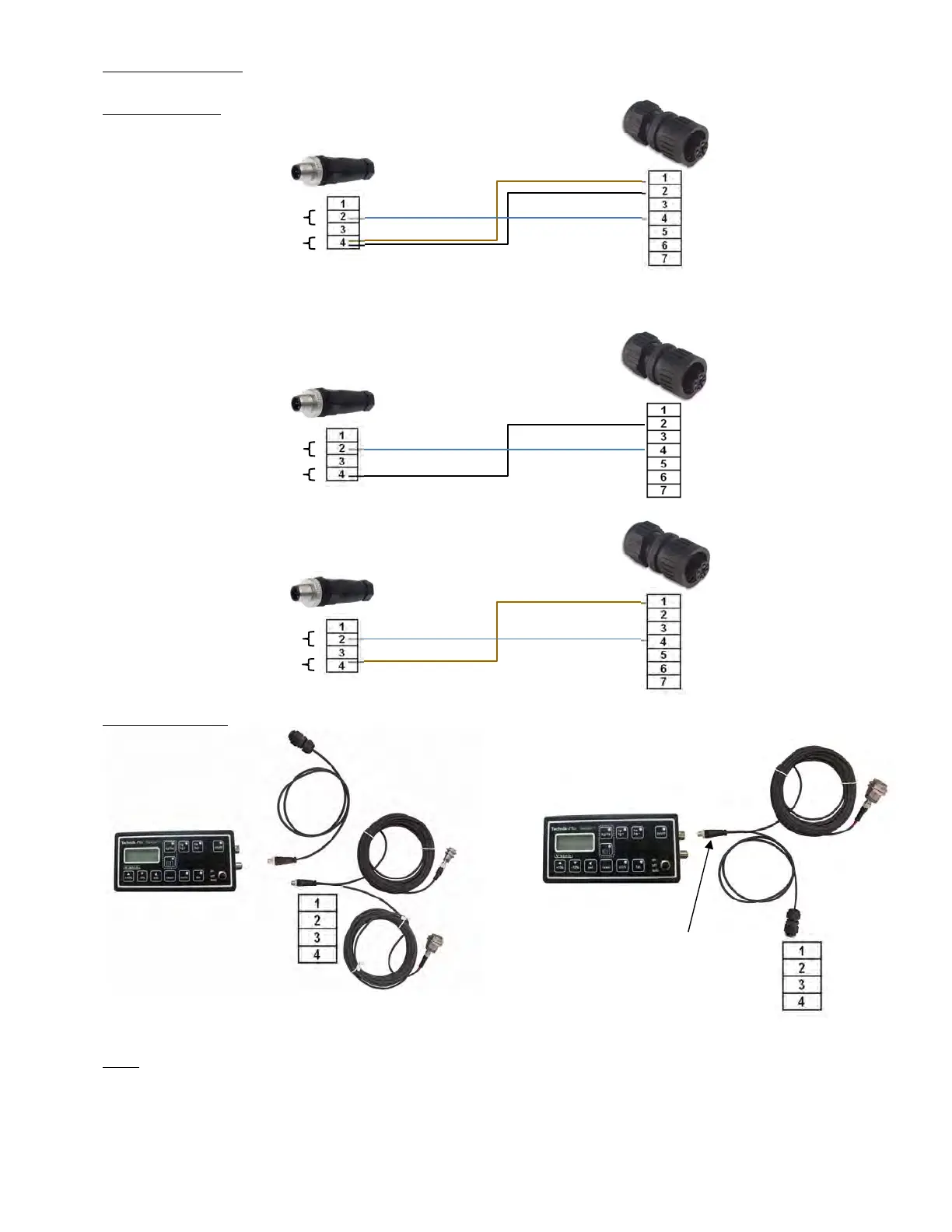

Signal connections:
Signal plug cable
Version A:
Some tractors have the speed signal on pin no. 1 and pin no. 2. In this case just connect to the radar
signal. You can find more information regarding the configuration of the signal socket in the tractor´s
instruction.
VersionB:
VersionC:
Possible variations:
Note:
It can be that John Deere and Class tractors have no linkage signal! In this case use the on/off sensor.
New tractors can need an additional cable. Please contact us.
On/Off signal
Speed signal
On/Off signal
Speed signal
Speed signal
Sensor + (brown cable)
On/Off signal (black cable)
Sensor – (blue cable)
Speed signal (black cable)
brown & black
black
Variation 1:
Signal plug cable
Variation 2: Speed-
Variation 3: Signal plug cable
and on/off-sensor
Sensor + (brown cable)
On/Off signal (black cable)
Sensor – (blue cable)
