TechniSat DIGIT S3 DVR User Manual

89
DE
EN

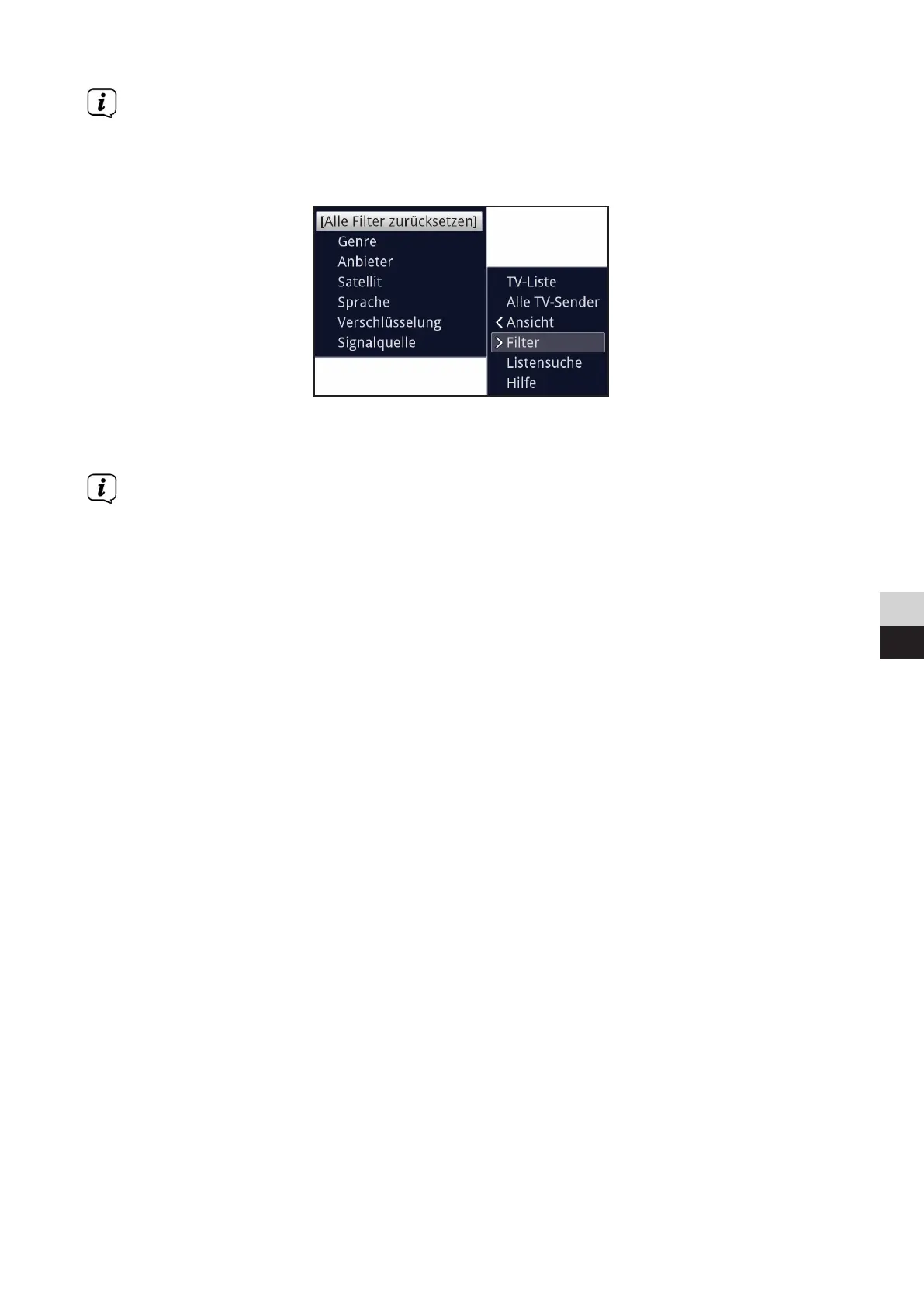

Some options are selected directly in this window. Other options for a
number of subordinate selection options are located in the option groups.
Highlighting one of these option groups automatically opens another
window to the le.
> You can use the up/down arrow keys within the options group to highlight
one of the options listed there.
By pressing the up/down arrow keys it is possible to move the highlight
from line to line, and to move upwards and downwards page by page using
the page up/down keys.
> The highlighted option is selected by pressing the OK key. You then exit the
option selection area.
> If you do not want to select an option or wish to leave the Options selection
area without making any changes, simply press the Option key until it is
hidden.
Digit S3 DVR_V2.indd 89Digit S3 DVR_V2.indd 89 23/02/2022 08:5323/02/2022 08:53

TechniSat DIGIT S3 DVR Specifications

General

Tuner type	Digital
Demodulation	QPSK
Product color	Black
Number of tuners	1 tuner(s)
Audio output channels	- channels
On Screen Display (OSD)	Yes
Electronic Program Guide (EPG)	-
Digital Satellite Equipment Control (DiSEqC)	1.0, 1.2
Package weight	994 g
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 75 %
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (typical)	6.2 W
Video codecs	H.264
Cables included	HDMI
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Wi-Fi	No
Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Signal source	Cable, Ethernet (RJ-45), Satellite
Digital signal format system	DVB-S, DVB-S2

Weight and Dimensions

Depth	130 mm
Width	180 mm
Height	44 mm
Weight	380 g
