HDS User Manual
(HTT06291133)
Section I: General Installation Instructions
www.technocnc.com
(HTT06081112)
Tel: 631-648-7481 • Email: support@technocnc.com

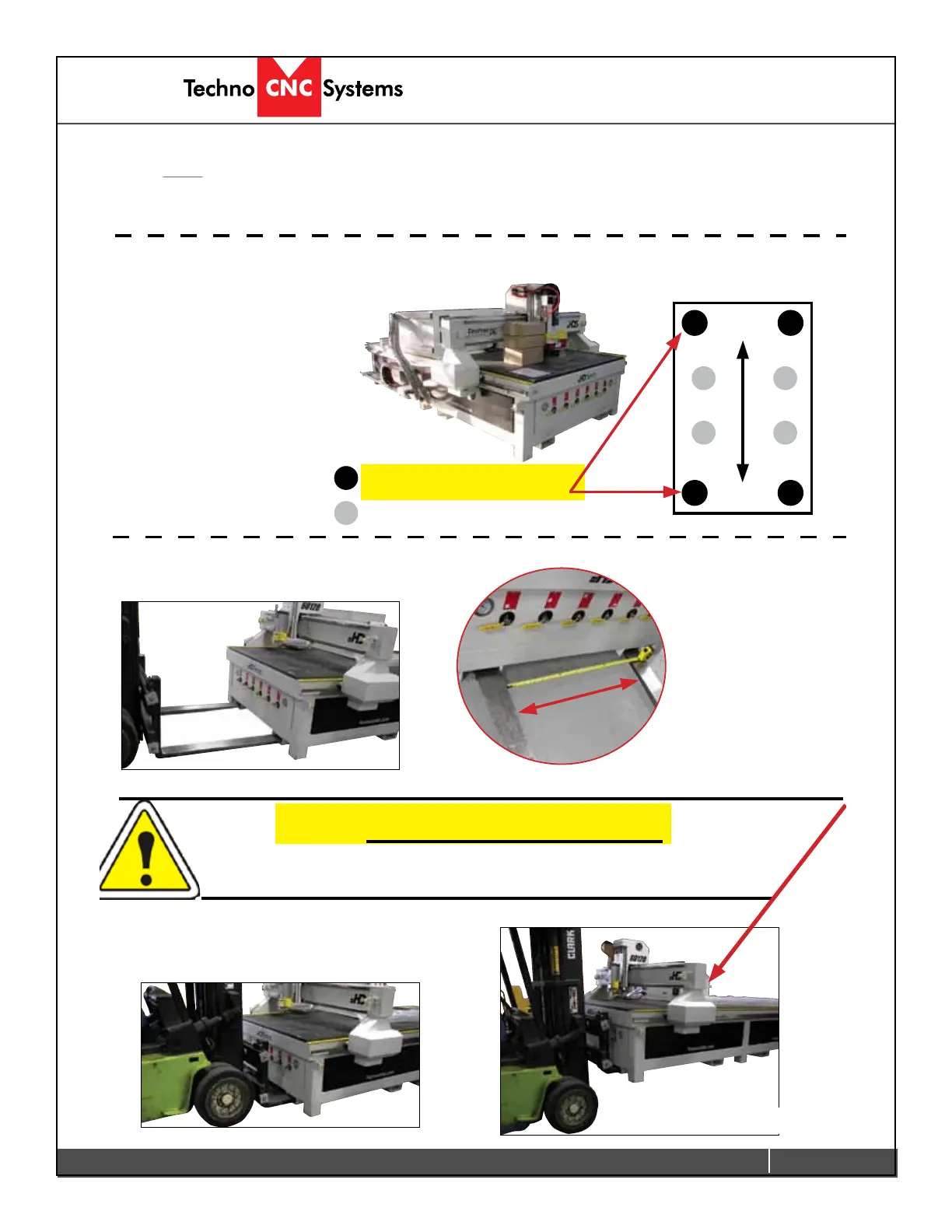

All Techno machines are shipped assembled and secured to a wooden pallet.
Unpack all items that shipped with
your machine. Check the items
against the packing slip to be sure
nothing was left out. Notify Techno
immediately if you are missing any
pieces of your shipment.
1.1
I. UNPACKING AND MACHINE IDENTIFICATIONS
Please note the 4 Forklift Tubes on
the front and rear of the machine.
II. MEASURING FORKS AND FORKLIFTING MACHINE
Front of Machine
Rear of Machine
1 2
43
Fig. 1.1
Take care not to damage the
valves on the front of the machine.
Slowly move in close to the machine.
2.3
Fig. 2.3
Forklift your machine up from the
oor and remove the wooden pallet.
2.4
Fig. 2.4
Forks must be centered in the front
of the machine (shown in Fig 2.1).
2.1
Fig. 2.1
Measure the distance
between the forks.
(shown in Fig 2.2).
2.2
Fig. 2.2
For safety and to prevent damage to the machine
and cables, Lift Machine Using Forklift Tubes ONLY
If required, there are 4 Forklift Tubes
on the sides of the machine.
SAFETY WARNING: DO NOT LIFT OR MOVE MACHINE USING GANTRY
Depending on machine size — SEE QUOTE FOR MACHINE WEIGHT
NOTE: Forklift capacity must be adequate to safely lift the machine.
It is recommended to have Fork Lift Extensions to better support the load.
35 inches
A toolbox and other
accessories such as vacuum
hosing and leveling feet may
be packed under the machine
during shipping.
