6 Installation
6.1 Plates
The unit is supplied with warning and attention plates as listed in the relevant table.

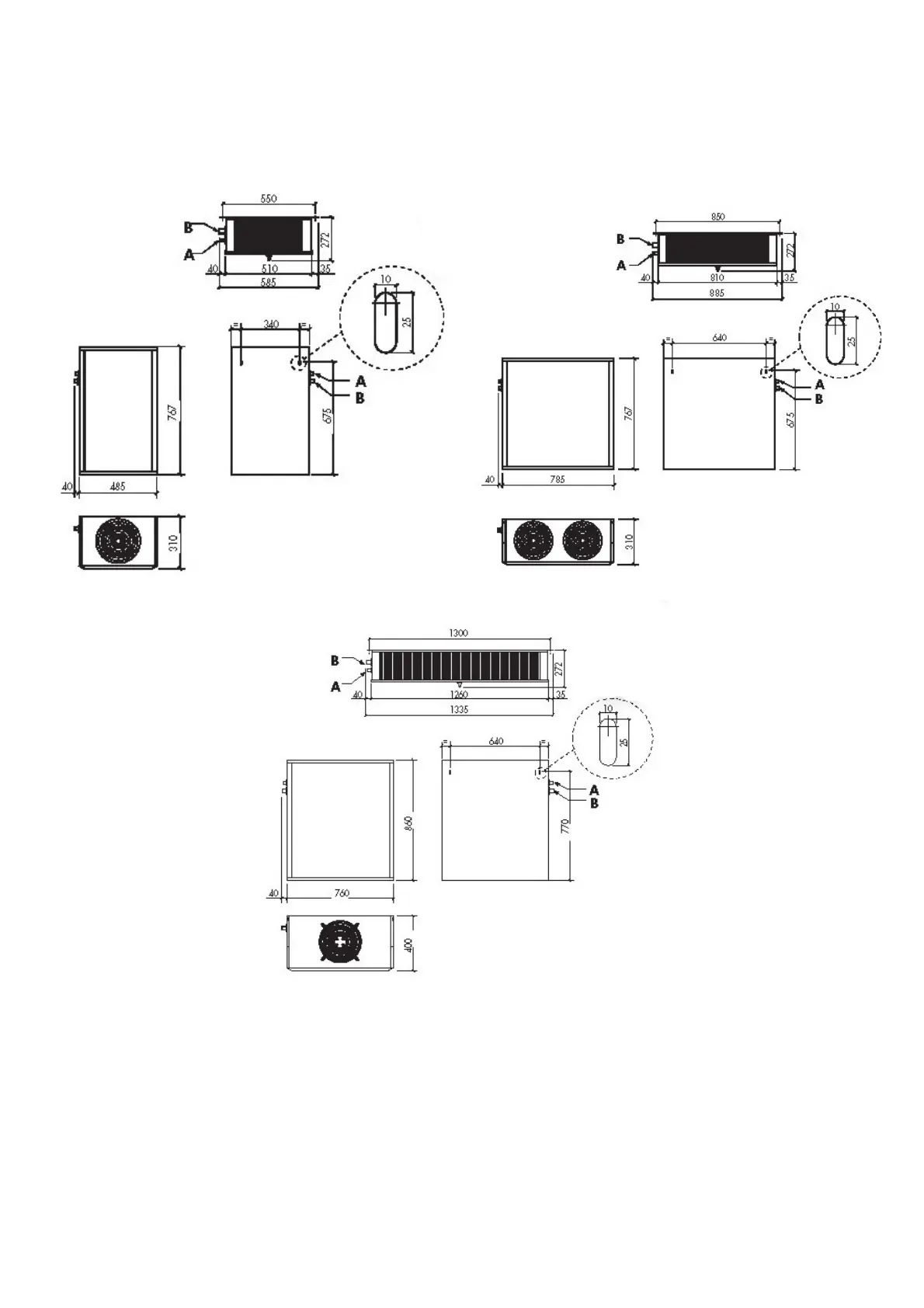

6.2 Dimensions
6.3 Location
To obtain optimal operation of the unit act as follows:
A) Place the unit in a well ventilated room, far from heat sources.
B) Limit the number of door openings.
C) Make sure that the unit has good air supply and discharge.
D) Fit a drain line to the defrost water drain connection in the lower part of the
condensing unit.
6.4 Free room
When installing the unit leave enough free room to allow opening, correct use and easy
maintenance in safe conditions.
CS 1
CS 2
CS 3
