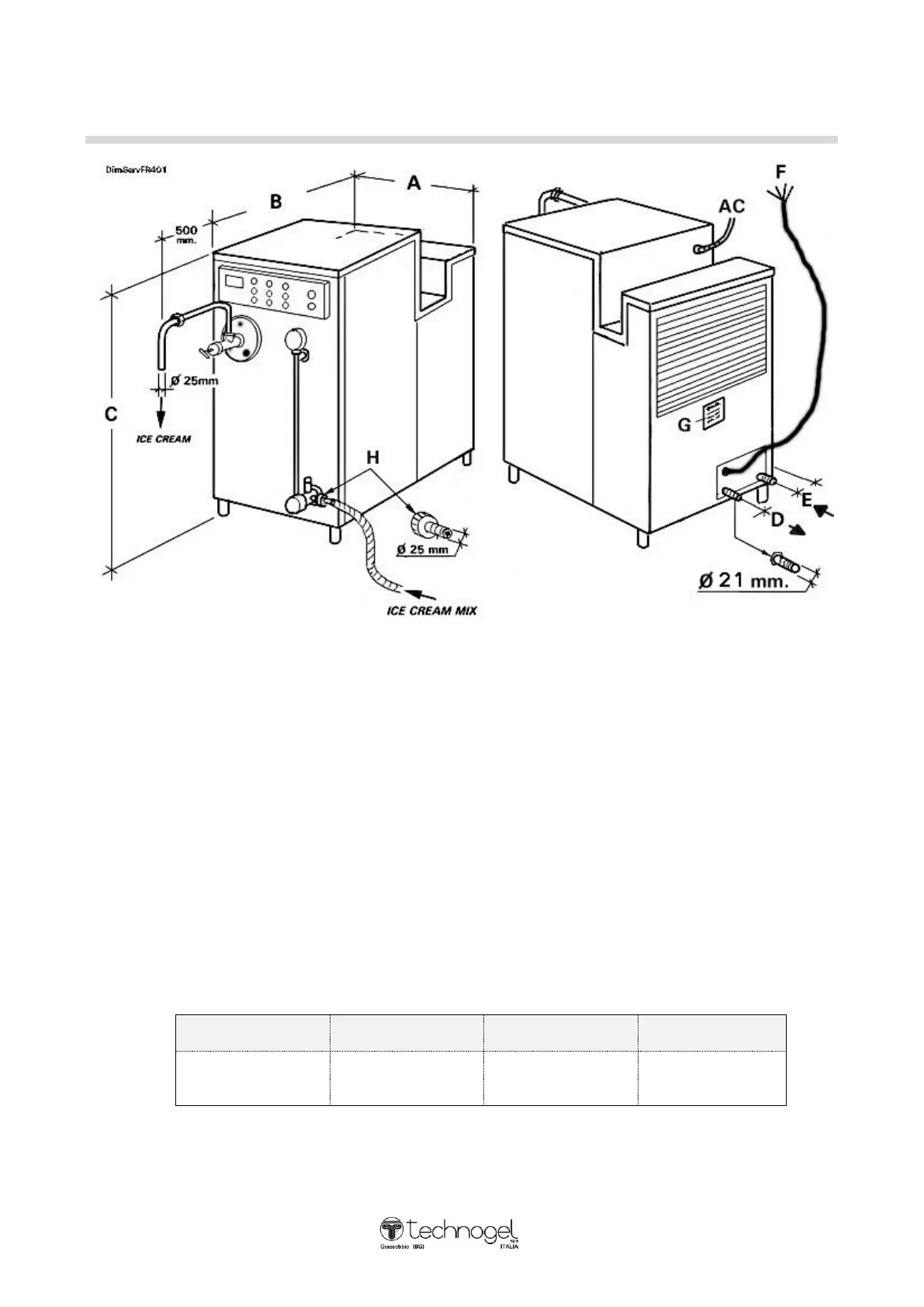

ļ Positioning of different facilities
CAUTION:
For trouble-free operation of the machine it is not necessary for the machine to be anchored to the floor, nor
are any special measures necessary to limit vibration.
A number of important points should, however, be borne in mind:
- Leave a space of at least 50 cm around the machine. This is indispensable to ensure
maintenance work can easily be carried out on the machine.
- Connect the machine to the electricity supply at point F with a cable coming from above to avoid
any danger of crushing underfoot. For power data, please see page 7.
- Make sure the floor is strong enough to take the weight of the machine.
- Check the machine is stable by making sure that the four legs are firmly resting on the floor.
- Connect the machine to the water supply at points D and E with firmly fitted piping which will
withstand a minimum pressure of 10 Bar. For data regarding consumption please see page 8.
- Connect the machine to the compressed air at point AC. For data regarding consumption
please see page 9.
Dimensions of the machine:
