TECHNOLIFT SL-9 - Install Limit Switch and Control Bar

11

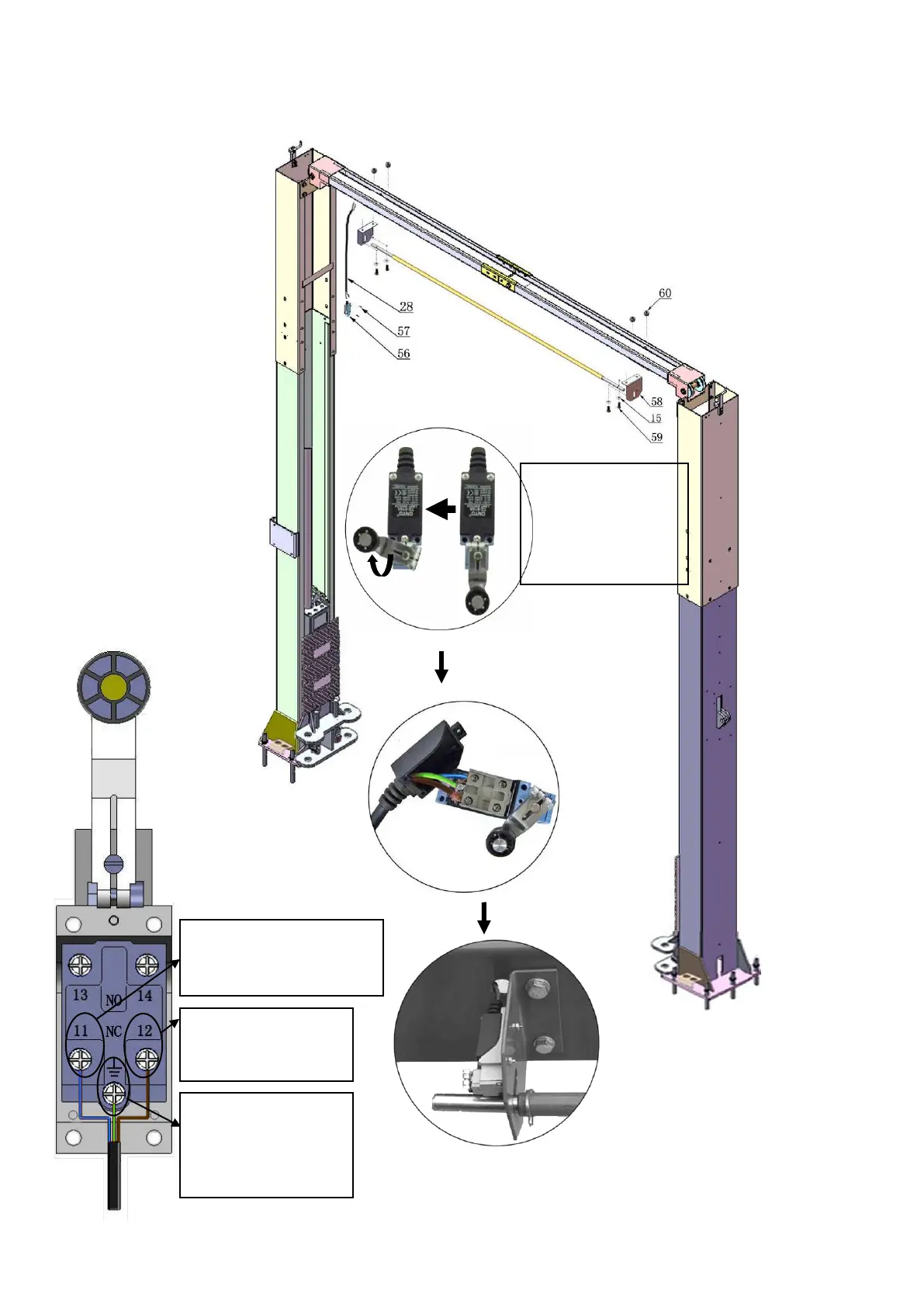

H. Installing the limit switch control bar and limit switch (See Fig. 18).
Fig. 18
NC: Normal contact
Loosen screw of
drive rod for
adjustment, tighten
the screw after
adjustment
Adjust drive rod of limit
switch
Limit switch
connected
with cable
Connect the brown wire
to the terminal 12# on
limit switch and terminal
4# on control button.
Connect the blue wire to
terminal 11# on limit switch
and terminal A1 on AC
contactor of power unit
Connect the yellow and
green wire to the earth
wire terminal on limit
switch and the earth wire
terminal of power unit.
