TECHNOLIFT SL-9 - Install Cables (High Setting)

15

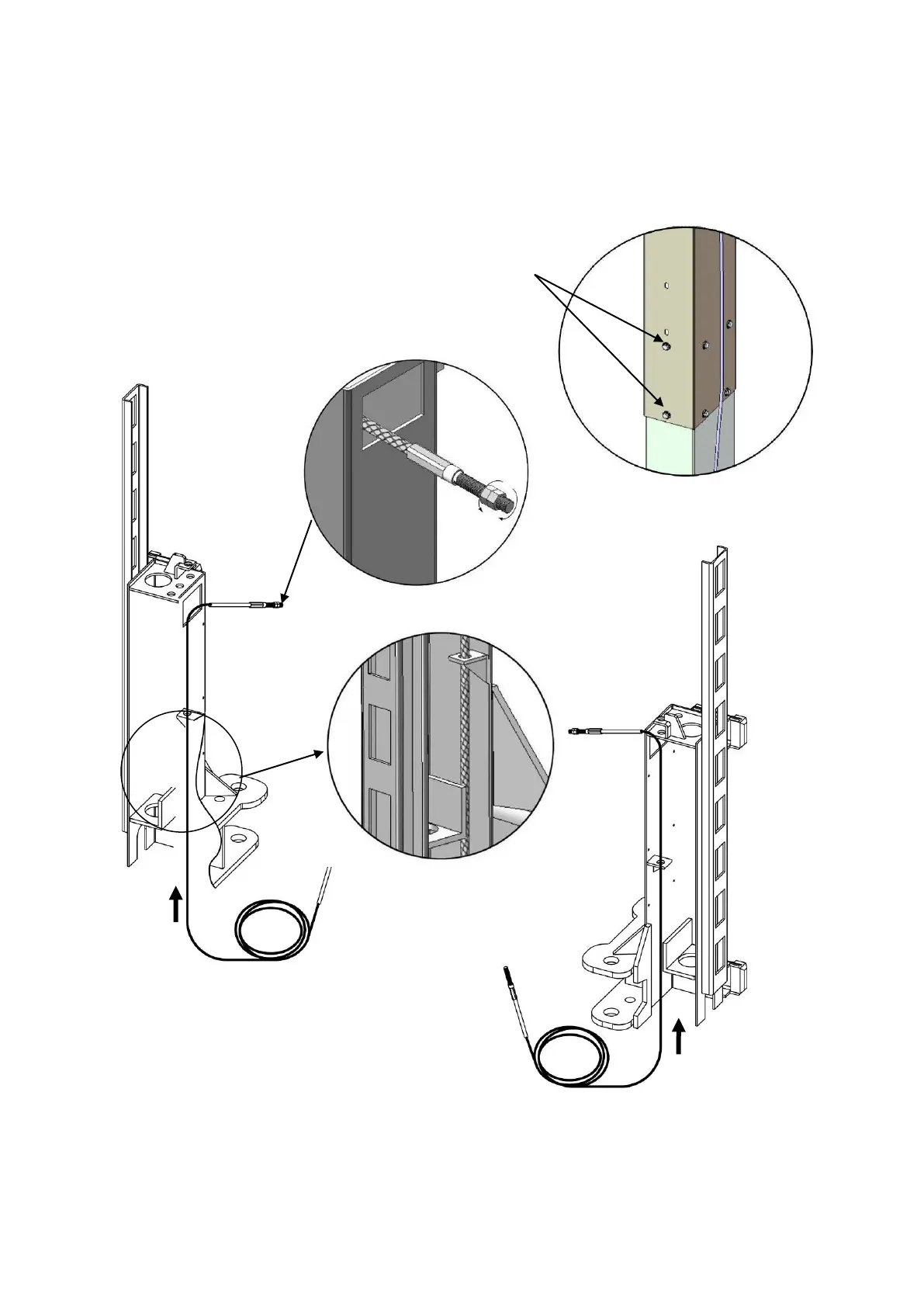

2．High setting cable connection
2.1. Cable pass through from the bottom of the carriages and be pulled out from the
open of carriages, then screw the two cable nuts
(See Fig. 23).
High Setting
Cable connecting direction
Cable Connecting direction
Screw the two cable nuts
Fig. 23
