Different kinds of LCD panels usually require their specific connectors. Since there are no
standard connectors, the evaluation board has generic interfaces which are 8bits per color single
pixel LVDS, 6bit per colors single pixel TTL, and 8bits per color single pixel output pins for the
daughter boards. If the board was not provided with a proper cable for your panel, you need to
build a cable yourself.
LCD panel interfaces

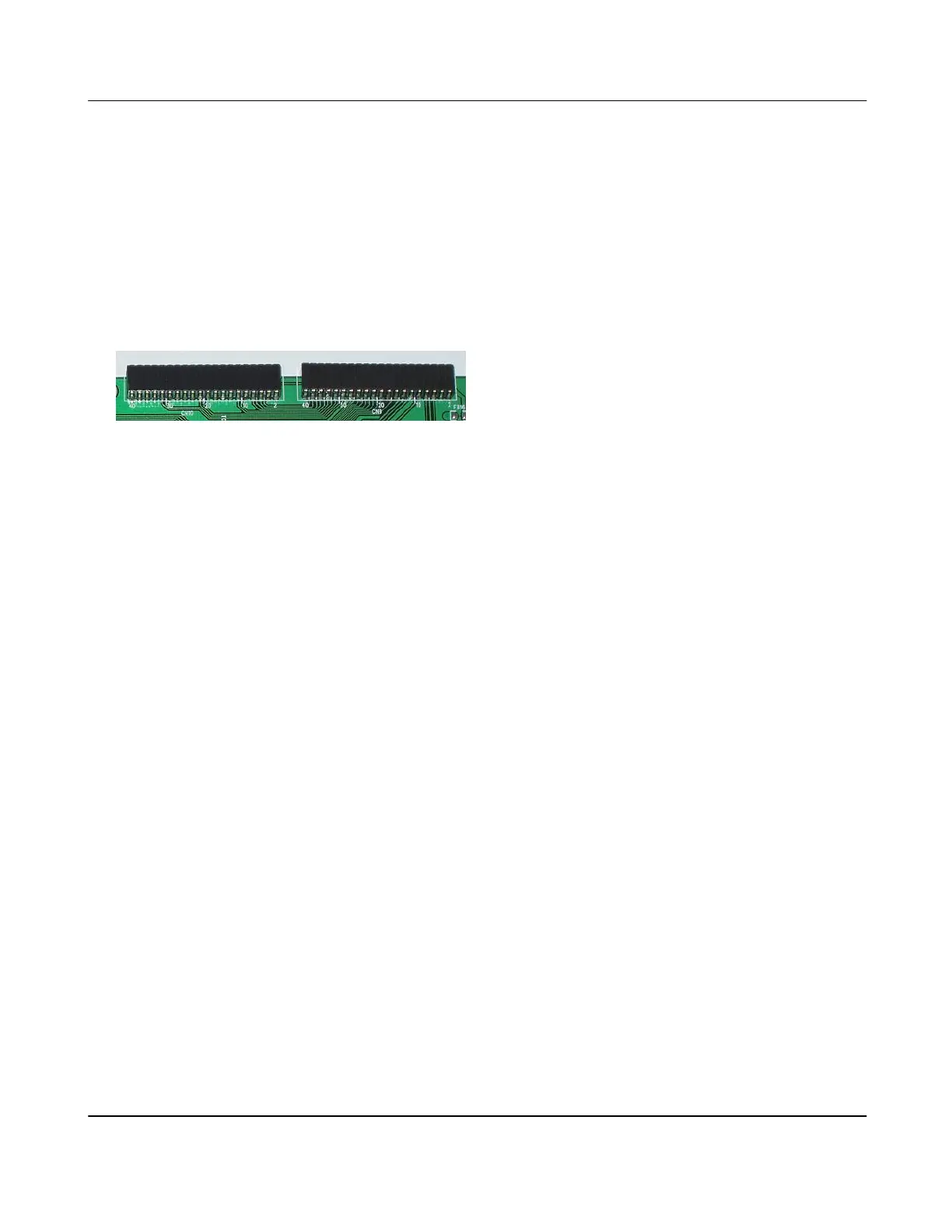

- Interface for Custom Made Panel Card
Reference : CN9/CN10
Part number : PPPN202FJFN
Matching socket :PRPN202PARN
CN9
Pin Description Pin Description Pin Description
1 VCC12 (NC) 15 GND 28 TCLP
2 VCC5 16 GPIO 0 29 FPB00/TCSPR
3 VCC3 17 GPIO 1/TCLRL 30 FPB01/TRSPB
4 VCC3 18 GPIO 2/TRUDL 31 FPG00/CP1+
5 AGND 19 GPIO 1/TCLRL 32 FPG01/CP1-
6 ROUT 20 FPBIAS 33 FPR00/CP0+
7 GOUT 21 FPPWC 34 FPR01/CP0-
8 BOUT 22 FPPWM 35 FPHS/TCSPL
9 AGND 23 TRCLK 36 FPDE/TROE
10 AGND 24 GPIO 2/TRUDL 37 FPCLK/TCCLK
11 SEN0 25 TCINV/TCREV 38 FPVS/TRSPT
12 SEN1 26 TCPOLP 39 GND
13 COM_OUT 27 TCPOLN 40 GND
14 GND
6. Built-in Microcontroller Interface
The evaluation board has connectors on the left side of the board with reference CN14 and CN15.
These connectors may be used with the “Embed MCU with TW9910 daughter card” to utilize the
built-in microcontroller and the shared digital video interface available on the TW8816.
The built-in microcontroller may be used with the daughter card and the appropriate firmware.
Some of the features are:
- Operation Keys ( 8 keys )
- GPIOs
- Remocon IR Receiver
- UART
Version 1.00 9/25/2007
