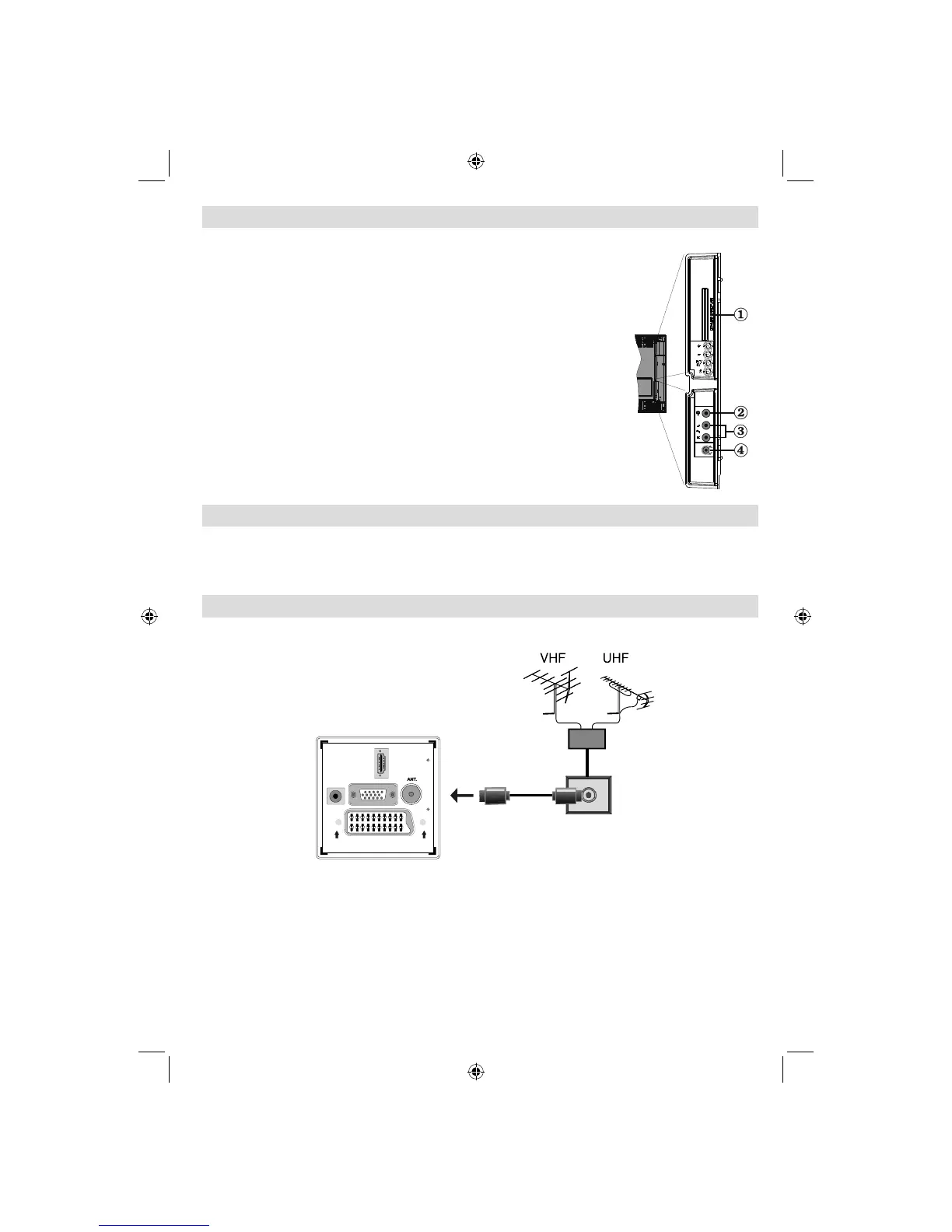

Viewing the Connections - Side Connectors
CI Slot is used for inserting a CI card. A CI card allows you to view all the 1.
channels that you subscribe to. For more information, see “Conditional
Access” section.
Video Input is used for connecting video signals of external devices.Connect 2.
the video cable between the VIDEO IN socket on the TV and the VIDEO OUT
jack on your device.
Audio Inputs are used for connecting audio signals of external devices. 3.
Connect the audio cable between the AUDIO INPUTS on the TV and the
AUDIO OUTPUT jacks on your device.
Also to enable PC/YPbPr sound connection in such a case, use an
appropriate audio cable between the connected device’s audio outputs and
the TV’s audio inputs
Note: If you connect a device to the TV via the VIDEO or PC/YPbPr cable
you should also connect your device with an audio cable to the AUDIO
INPUTS of the TV to enable audio.
Headphone jack is used for connecting an external headphone to the system. 4.
Connect to the HEADPHONE jack to listen to the TV from headphones.
Power Connection
IMPORTANT : The TV set is designed to operate on 220-240V AC, 50Hz.
• After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the
mains.
• Plug the power cable to the mains socket outlet.
Aerial Connection
• Connect the aerial or cable TV plug to the AERIAL INPUT socket located at the rear of the TV.
SPDIF
SCART
VGA
Coax.OUT
HDMI 1
