PROVASET T3LPF REV.20210610
14

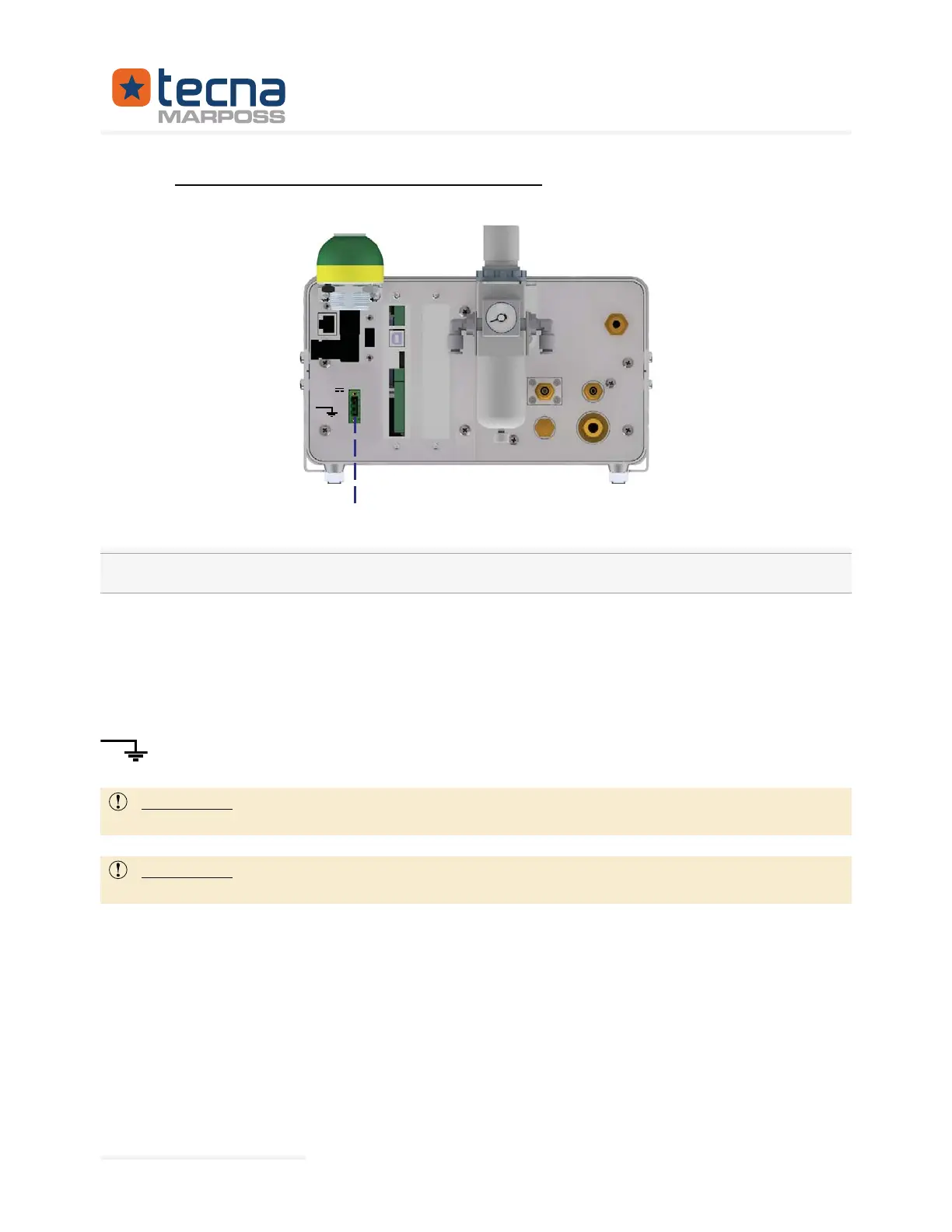

3.5.1 Rear panel for external 24 Vdc power supply
A Terminal block plug, 3 positions, pitch 5.08, clamping screw for wires, Phoenix Contact
type 1777992;
+24 V
0 V
A
The power supply with two common +24Vcc and 0V outlets, is supplied only if re-
quested by the client. (option)
Terminals:
+24V= Power supply 24Vcc, 1.5 A max
0V Common 0V (connected to the frame)
Ground
EMI/EMC compliance; the connection to ground is required for EMI/
EMC electromagnetic compliance.
Electrical shock risk.
the external power supply must comply with standards.
