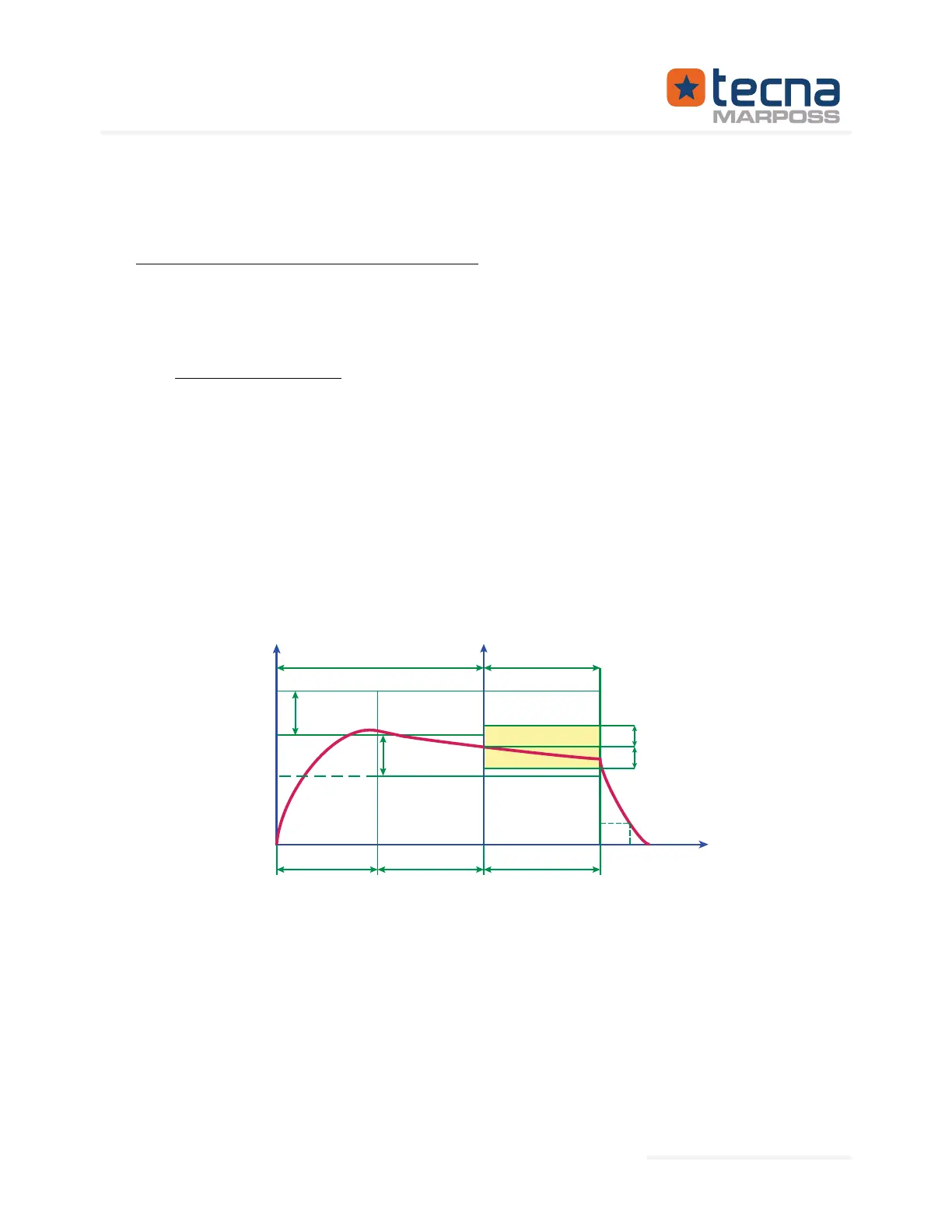

5.6 Leak test: test cycle with test parameters


5.6.1 Leak test: test cycle
The basic test cycle for leak tests is made of the following phases:
• 
• 
• T2, time, to stabilize the pressure in the test circuit;
• T3, time, to measure the pressure decay in the test circuit;
• discharging phase, to discharge the pressure in the test circuit.


kPa
Pa
PR
+ PR % MAX
- PR % MIN
T1 T2 T3
Q+
Q-
FILLING SETTLING MEASURE
PRESSURE
DROP
TEST
PRESSURE
PRESSURE
DISCHARGE

