Tecnam P2006T - 17. Instruments Panel

Page 7 - 37
Section 7 – Airframe and Systems description
INSTRUMENTS PANEL
4
th
Edition, Rev 0
17. INSTRUMENTS PANEL

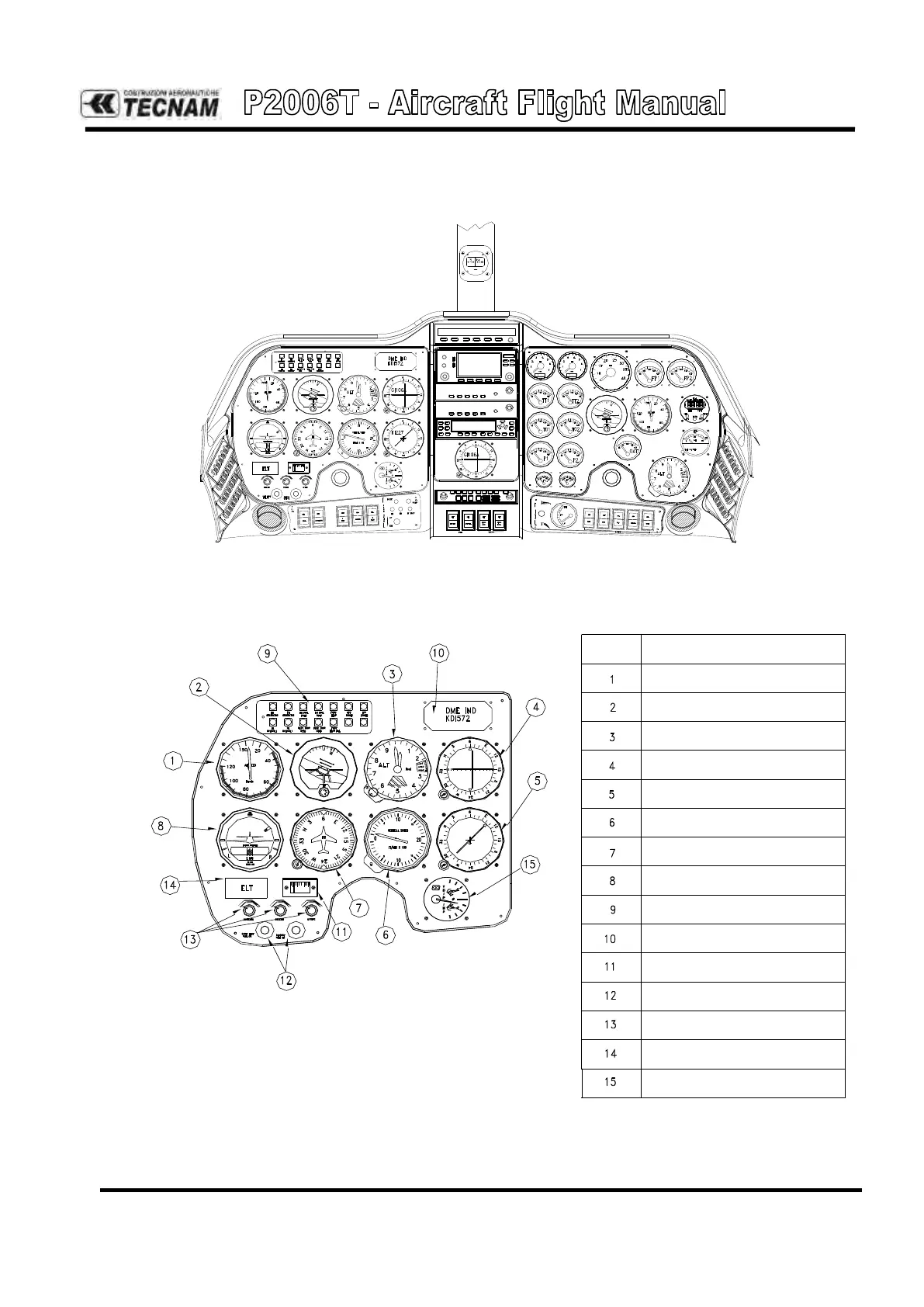

Figure
16.
– Instruments panel (typical layout)
nr
DESCRIPTION
Airspeed indicator
Attitutude Indicator
Altimeter
VOR/ILS Indicator
ADF Indicator (Kit B)
Directional Gyro Indicator
Turn Coordinator
Annunciator Panel
DME Indicator (Kit B)
Directional Trim Indicator
Vertical Speed Indicator
Cabin Heat / Defrost
Dimmers
ELT Control Panel
Longitudinal Trim Indicator
Tab 1
Figure
17.
– LH Instruments panel (typical layout)
