Tecnam P2006T - Page 220

Page 7 - 38
Section 7 – Airframe and Systems description
INSTRUMENTS PANEL
4
th
Edition, Rev 0
nr
DESCRIPTION
Audio Panel
Transponder
GPS/NAV/COMM GNS 430
Avionic Switches
Cross Bus Switches
Available
Tab 2
ADF (Kit B)
COMM/NAV SL30 (Kit A)
VOR/ILS Indicator

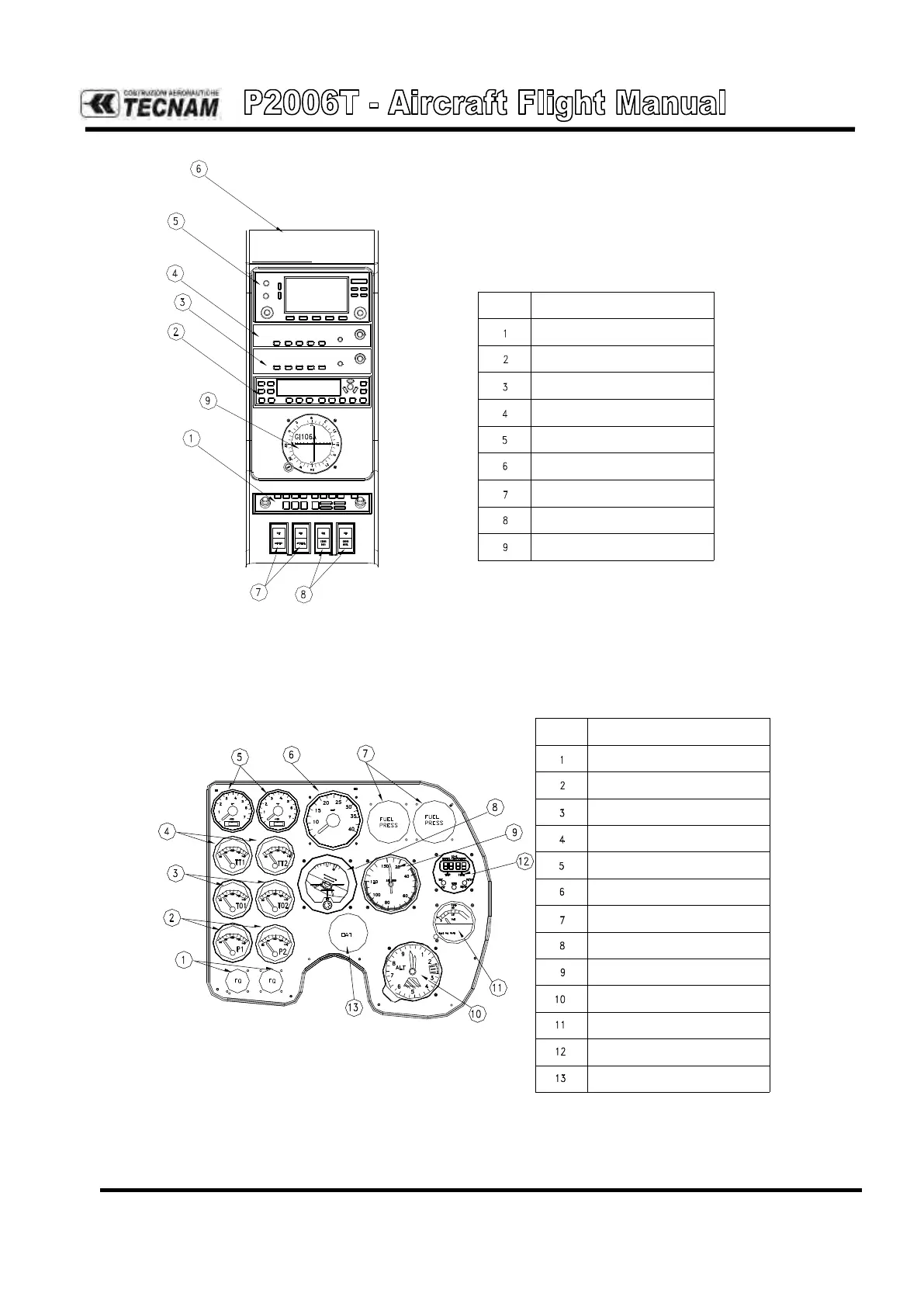

Figure
18.
– Central instruments panel (typical layout)
nr
DESCRIPTION
Fuel Quantity Indicators
Oil Pressure Indicators
Oil Temperatures Indicators
CHT Indicators
RPM Indicators
Fuel Pressure Indicators
2nd Altimeter (Kit C)
Volt/Amper meter
MAP Indicator (DUAL)
Chronometer
OAT Indicator
2nd Attitude Indicator (Kit C)
2nd Airspeed Indicator (Kit C)
Tab 3
Figure
19.
– RH Instruments panel (typical layout)
