LH outer shell

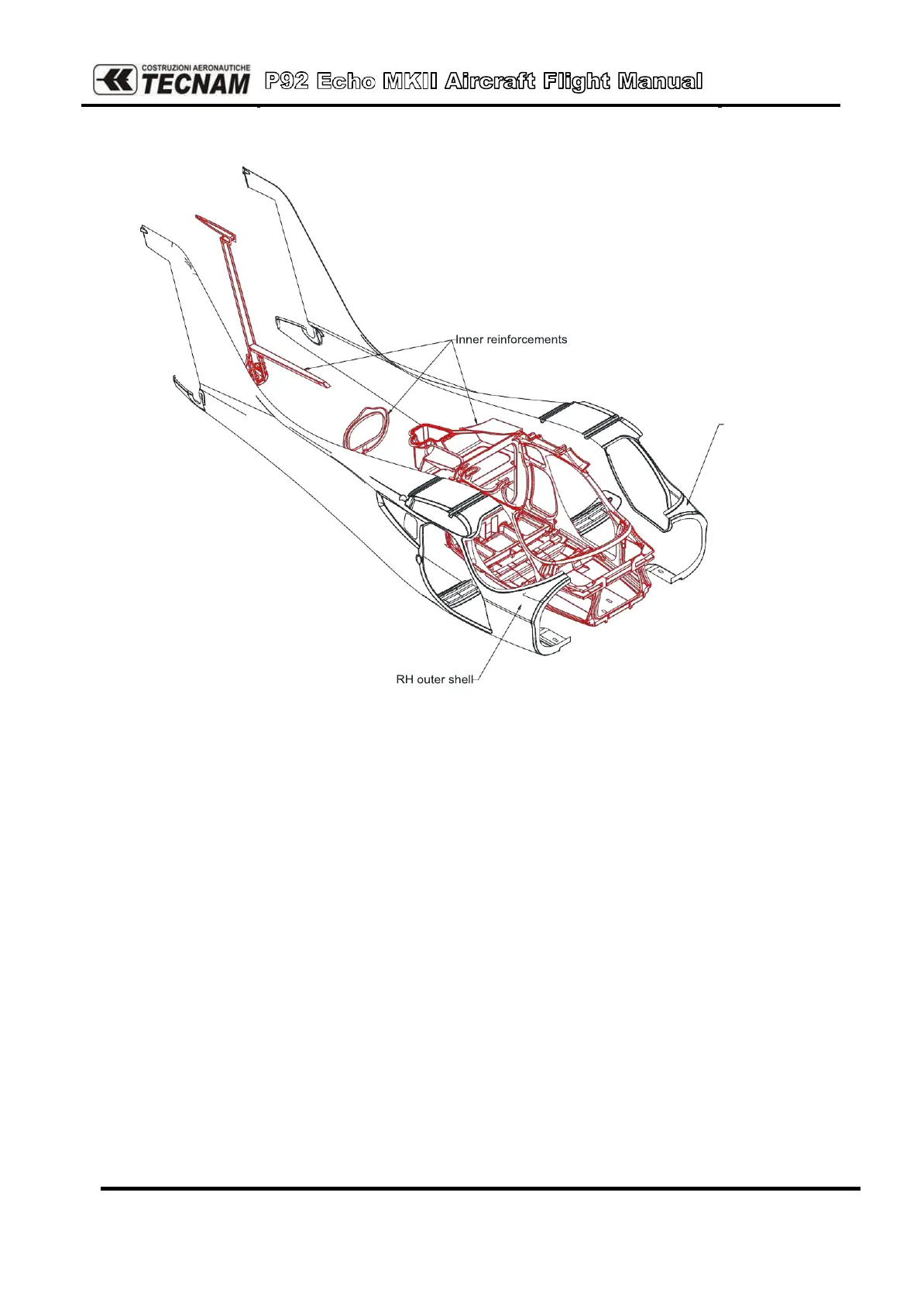

Fig. 7-2.P92 Echo MkII fuselage
2.3.
EMPENNAGES
The horizontal trimmable tail plane is all-moving type, which allows a high con-
trol authority and a better stick free stability. The vertical tail is conventional fin and
rudder type. Both horizontal and rudder structures are aluminum light alloy (2024-
T3 and 6061-T6), except fin, which is a carbon fiber unique body with the fuselage,
and tips, which are in fiberglass.
