USING THE CHARGER
PROGRAMMING THE GASSING POINT (80%)
The proper programmation of the gassing point is important for the correct operation of the charger.
Only qualied personnel should modify these settings.
ATTENTION!
The possibility to program the gassing point may help the user to adjust the charging curve tothe requirements of the battery
during all its life. The default value is 2.40 Volt/cell.
This value can be modied by changing positions on the 4 position dipswitch DS1 on the MTL control. Switches DS1-SW2
and DS1-SW3 are used for the programmation of the gassing point.
To modify the value, follow these steps:
Disconnect the charger from main A.C. supply and battery

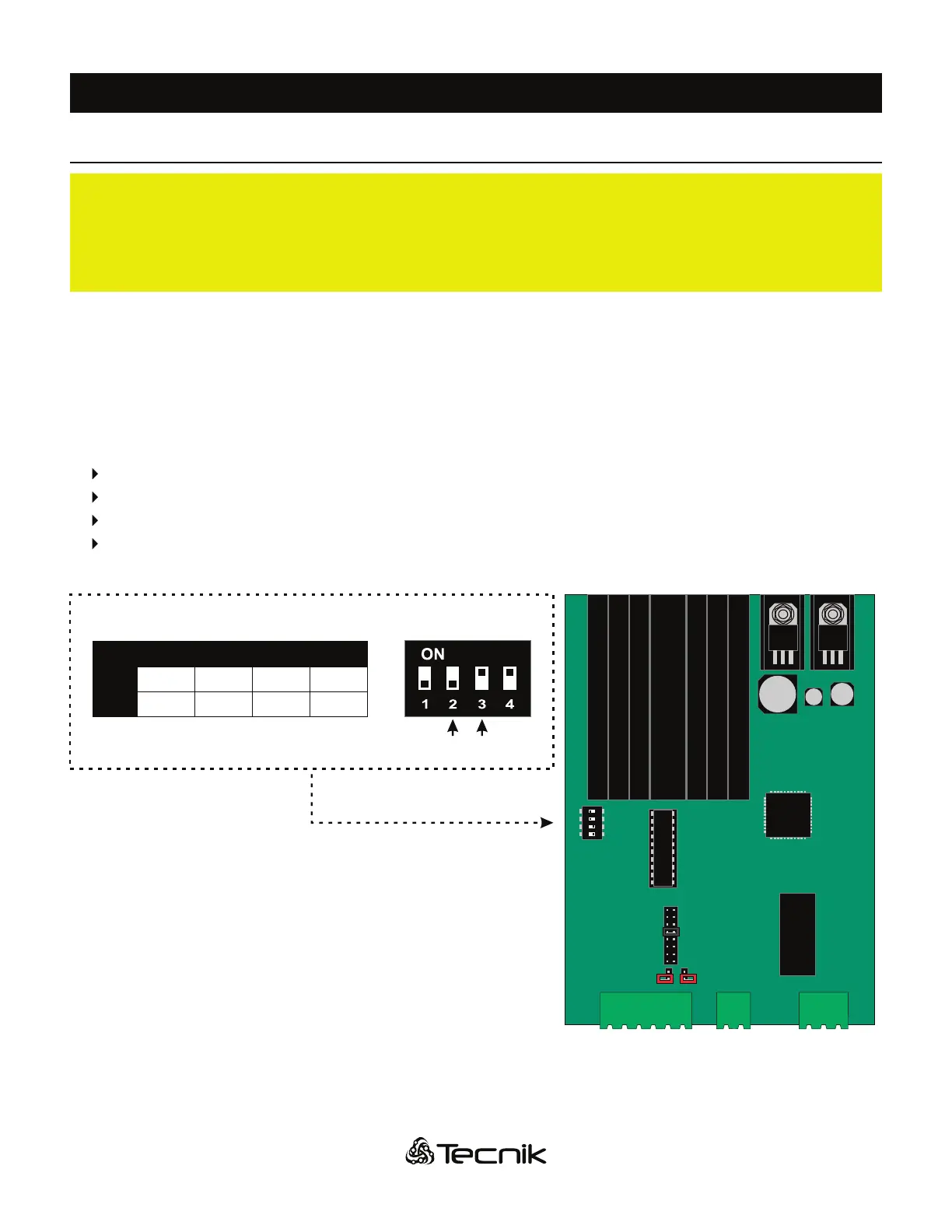

Locate the dipswitches on the digital electronic board (see next picture)
Set the dipswitches according with the following table and picture
Connect the charger to main supply.
DS1
ON
1 2 3 4
JP3
24
36
40
48
72
80
96
JP2
JP1
DS1Gassing Point (V/cell)
SW2
SW3
2.35V
OFF
OFF
2.40V
OFF
ON
2.45V
ON
OFF
2.38V
ON
ON
SW2 SW3
* Default value in bold
When a battery will be connected to the charger,
the programmed gassing voltage will be shown
on the display during the startup sequence.
