Tecnik TRONIK 812 - AC Input Configuration; AC Input Calibration

www.tecnikchargers.comwww.tecnikchargers.comwww.tecnikchargers.com
888
CF-MTL-42401
208/240V 480V

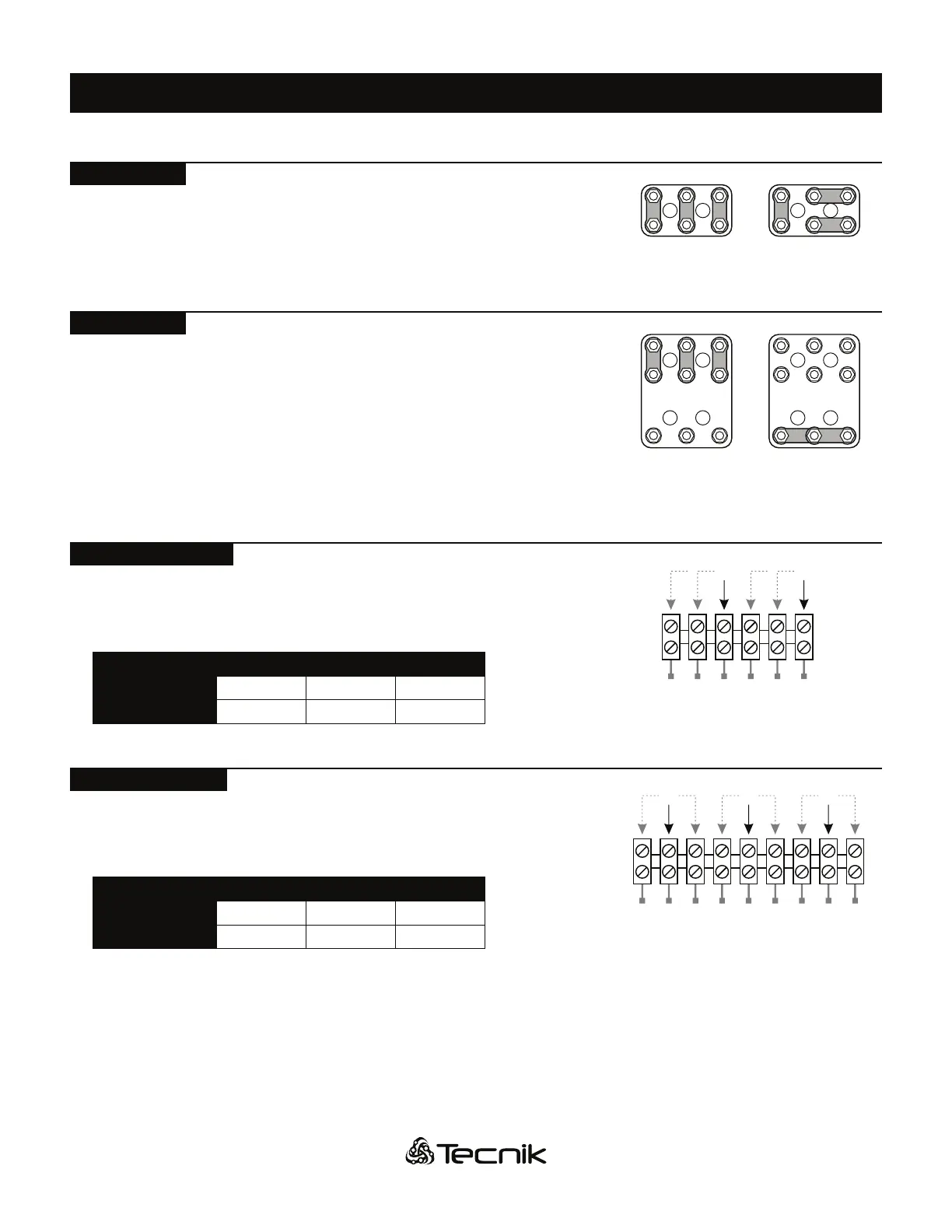

Congure the A.C. input adjustment by changing the postion of the
three (3) metal jumpers on the six (6) position terminal block.
* Do not move any wires, only the metal jumpers
208/240V 480V
CF-MTL-42403
Congure the A.C. input adjustment by changing the postion of the
three (3) metal jumpers on the nine (9) position terminal block.
* Do not move any wires, only the metal jumpers
A.C. INPUT CONFIGURATION multi-input chargers only)
A.C. INPUT CALIBRATION
3 2 1 3 2 1 3 2 1
A B C
CF-MTL-42403
CF-MTL-6003
3
208/452V
575V
2
225/480V
600V
1
240/506V
610V
CF-MTL-2401 / 42401
CF-MTL-4803 / 6003
3 2 1 3 2 1
A A
Calibrate the input tuning according to A.C. source by changing the postion
of the three (3) wires (A, B, C) on the nine (9) position terminal strip.
Calibrate the input tuning according to A.C. source by changing the
postion of the two (2) wires on the six (6) position terminal strip (A, A).
CF-MTL-2401
CF-MTL-42401
3
220V
208/452V
2
240V
225/480V
1
250V
240/506V
CHARGER INSTALLATION
