TECNOEKA Srl ______________________________________________________________ use and instruction manual
page 14 _________________________________________________________________________________________

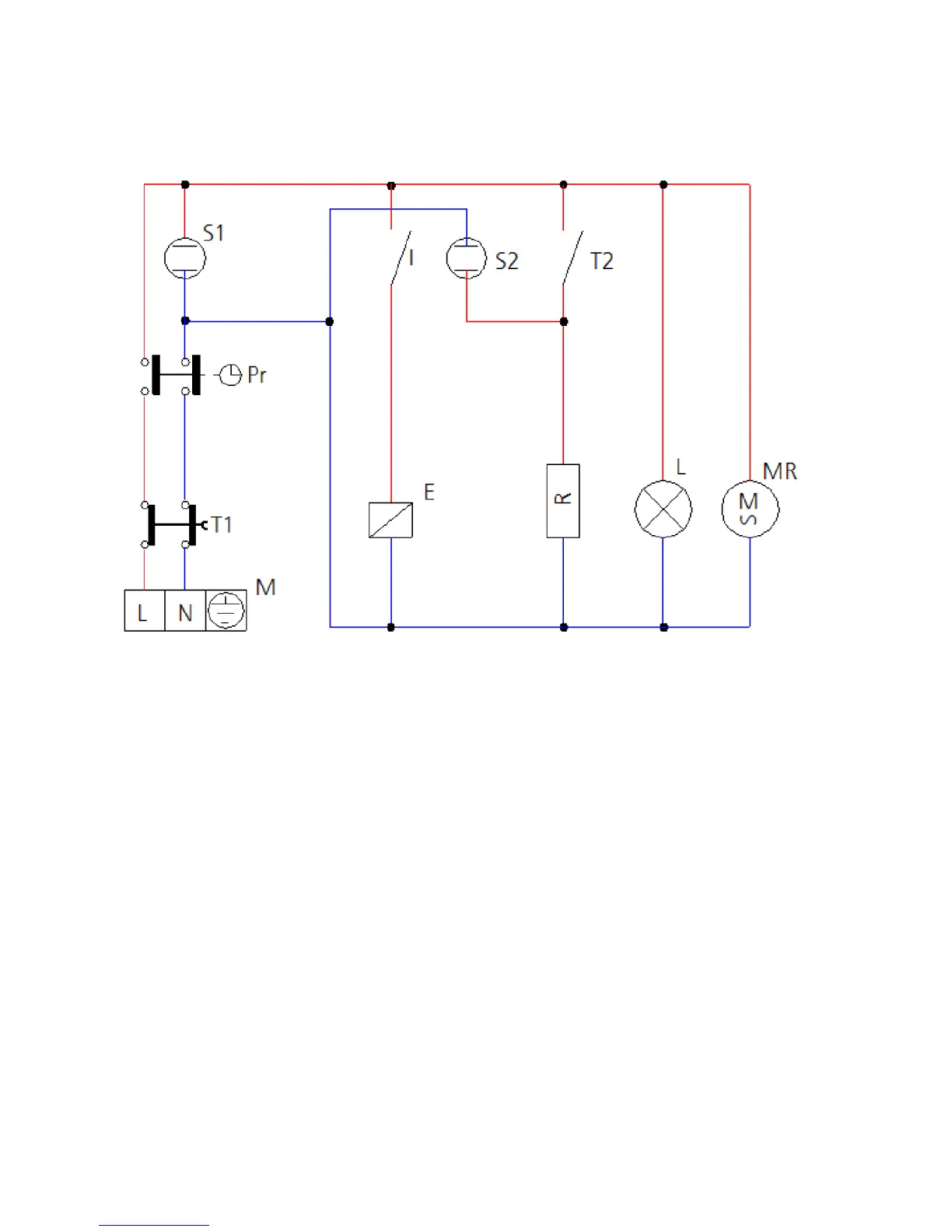

MODD. EKF 412 U – EKF 412 ALU
Legend
M Power terminal board
Pr "End of cooking" programmer
T1 Safety thermostat
T2 Oven thermostat
I Humidifier switch
R Circular heating-element
L Oven lighting lamp
MR Oven motorised ventilator
E Humidifier solenoid-valve
S1 Humidifier indicator light
S2 Programmer indicator light
