TECNOEKA EKF 412 - Wiring Diagrams

Electric Ovens rev. 1_____________________________________ EKF 412 – EKF 412 U - EKF 412 AL – EKF 412 ALU
_________________________________________________________________________________________ page 13

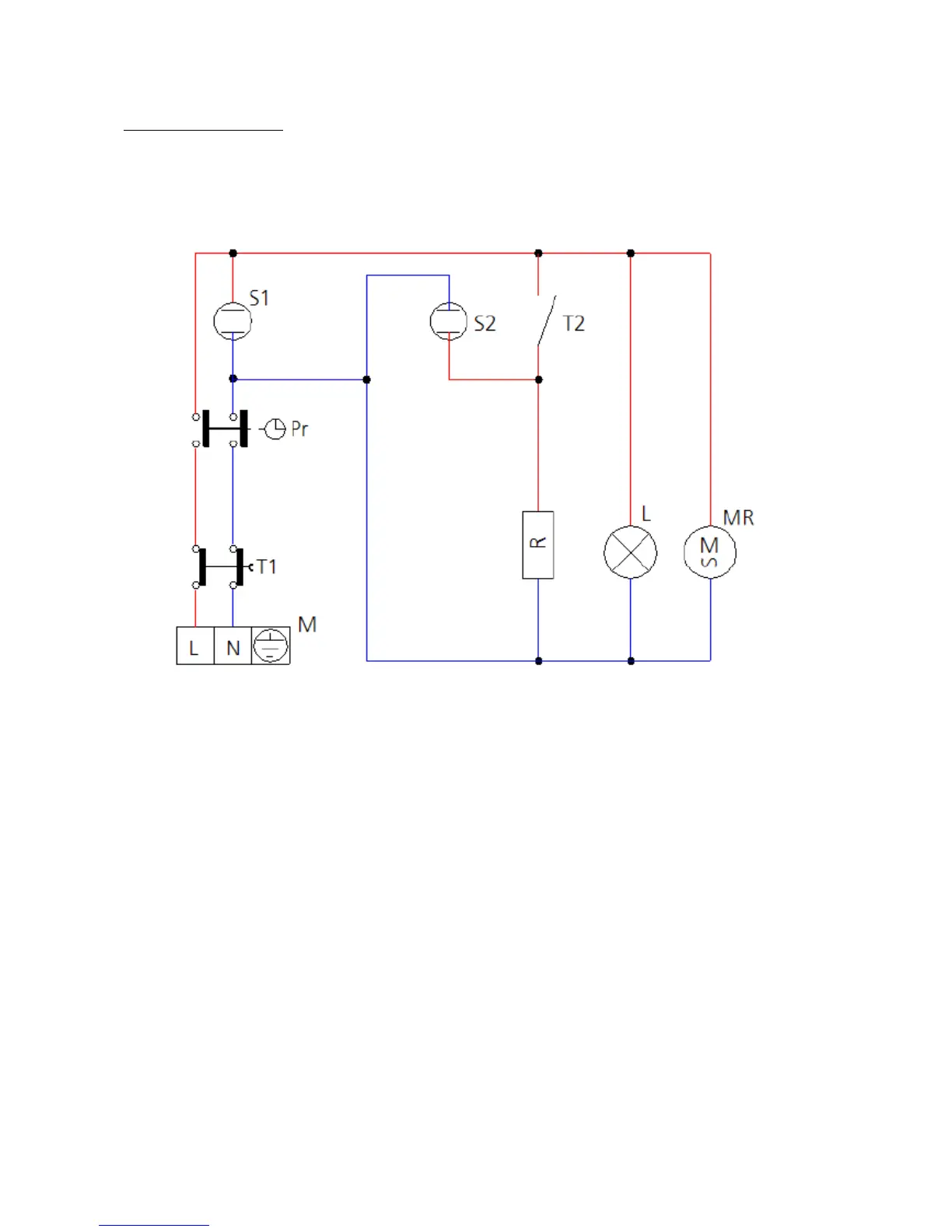

13. Wiring layouts
MODD. EKF 412 – EKF 412 AL
Legend
M Power terminal board
Pr "End of cooking" programmer
T1 Safety thermostat
T2 Oven thermostat
I Humidifier switch
R Circular heating-element
L Oven lighting lamp
MR Oven motorised ventilator
S1 Humidifier indicator light
S2 Programmer indicator light
